Product Description

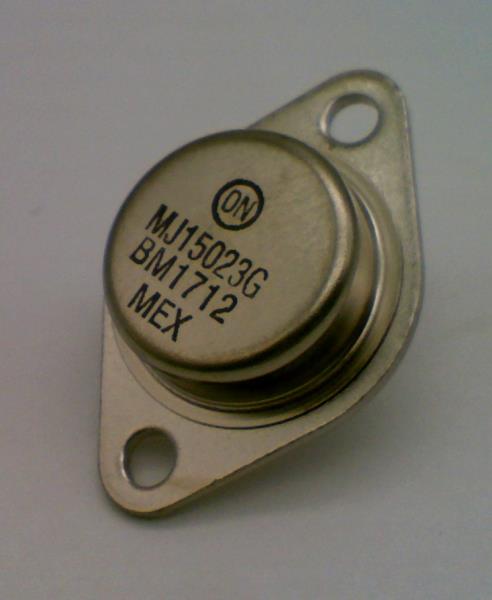

The ON Semiconductor MJ15023 is a high-performance PNP bipolar junction transistor (BJT) engineered for demanding high-power amplifier and switching applications. Designed with a rugged TO-3 metal package, this transistor delivers excellent reliability, thermal performance, and power handling for professional audio equipment, industrial electronics, and power supply circuits.
With a maximum collector-emitter voltage of 200V, continuous collector current of 16A, and power dissipation up to 250W, the MJ15023 is ideal for high-current amplification and output stage applications. Its robust construction and stable operating characteristics make it a popular choice for audio amplifier repairs, vintage amplifier restoration, and custom electronic designs.
Manufactured by onsemi, the MJ15023 offers dependable performance with low saturation voltage, solid gain characteristics, and high-temperature operation capability up to 200°C junction temperature.
Features
- High-power PNP bipolar junction transistor
- 200V collector-emitter breakdown voltage
- 16A maximum collector current
- 250W maximum power dissipation
- Rugged TO-3 metal package
- Excellent thermal stability and reliability
- Ideal for audio amplifiers and power electronics
- High-current output capability
- Suitable for industrial and professional electronic applications
- Manufactured by onsemi
Specifications
- Manufacturer: onsemi
- Part Number: MJ15023
- Product Category: Bipolar Transistors - BJT
- Transistor Type: PNP
- Package / Case: TO-204AA (TO-3)
- Mounting Type: Through Hole
- Collector-Emitter Breakdown Voltage (Vceo): 200V
- Continuous Collector Current (Ic): 16A
- Power Dissipation: 250W
- DC Current Gain (hFE Min):
- 15 @ 8A, 4V
- Transition Frequency (fT): 4MHz
- Collector Cutoff Current (Max): 500µA
- Vce Saturation:
- 4V @ 3.2A, 16A
- Operating Temperature:
- -65°C to +200°C (TJ)
- Packaging: Tray
Applications
- Audio power amplifiers
- High-power switching circuits
- Professional amplifier repair
- Industrial electronics
- Power supply systems
- Vintage amplifier restoration
- Custom electronic projects
