Product Description

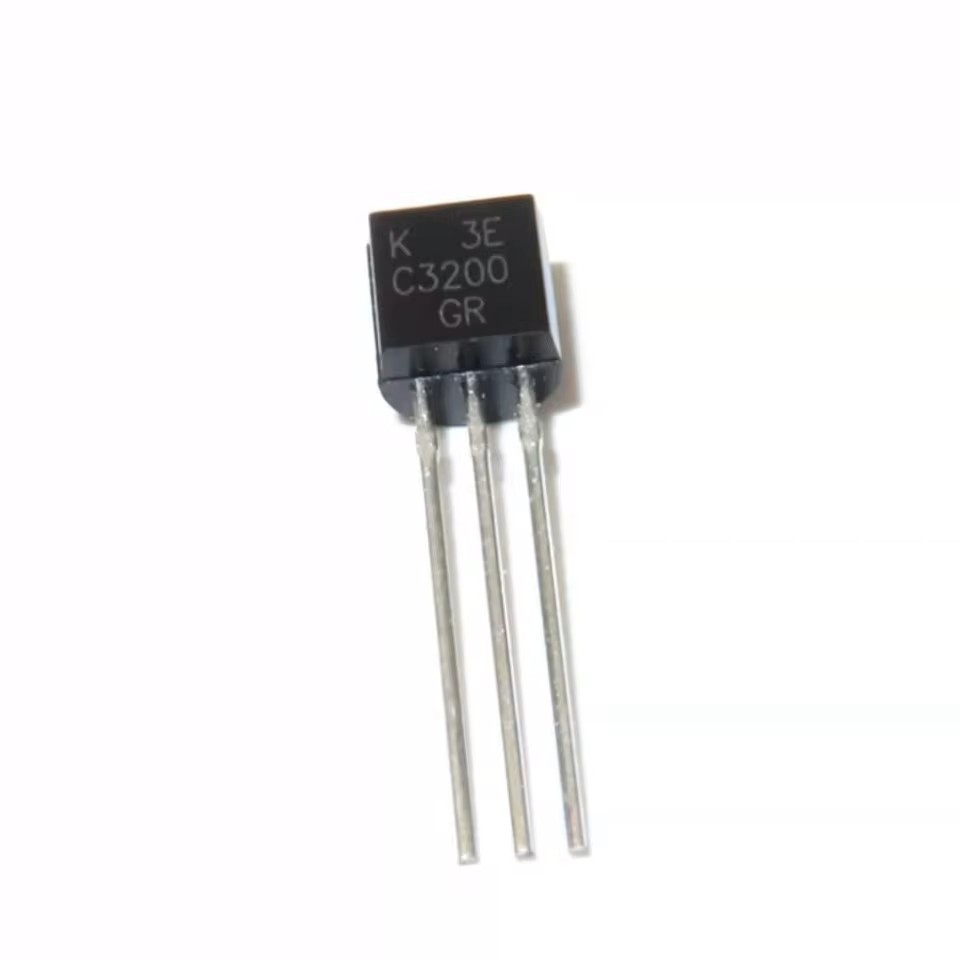

The 2SC3200 (C3200) NPN High-Frequency Transistor (5-Pack) is a versatile, low-power bipolar junction transistor designed for amplification and switching in audio, RF, and signal processing applications. With a high transition frequency of up to 200 MHz, this transistor is well-suited for use in VHF circuits, oscillators, and preamplifier stages.
The 2SC3200 is easy to integrate into breadboards, prototyping setups, and PCB designs. It offers reliable performance for small-signal amplification, low-noise applications, and general-purpose switching tasks.
With a wide DC gain range and efficient operation, this transistor is ideal for engineers, technicians, and hobbyists working on audio electronics, RF systems, or educational projects.
Features
- NPN bipolar junction transistor for amplification and switching
- High transition frequency (~200 MHz) for RF and VHF applications
- Low-noise performance suitable for signal amplification
- Wide DC current gain range (hFE: 70–240 typical)
- Ideal for prototyping, PCB design, and educational use
- General-purpose transistor for analog and digital circuits
- Supplied as a 5-piece set
Specifications
- Part Number: 2SC3200 / C3200
- Transistor Type: NPN BJT
Electrical
- Collector-Emitter Voltage (Vceo): 30V
- Collector-Base Voltage (Vcbo): 50V
- Emitter-Base Voltage (Vebo): 5V
- Continuous Collector Current (Ic): 100 mA
- Power Dissipation (Pc): 300 mW @ 25°C
- DC Current Gain (hFE): 70 – 240 (typical)
- Transition Frequency (fT): ~200 MHz
Physical
- Mounting: Through-hole
Pin Configuration (Flat Side Facing You)
- Emitter (E)
- Collector (C)
- Base (B)
Note: Always verify pinout before installation as variations may occur.
Applications
Ideal for a variety of electronic applications:
- RF and VHF circuits (oscillators, mixers, amplifiers)
- Audio preamplifiers and signal amplification
- Low-power switching (LEDs, relays, control circuits)
- Signal buffering and impedance matching
- DIY electronics and educational projects
