Product Description

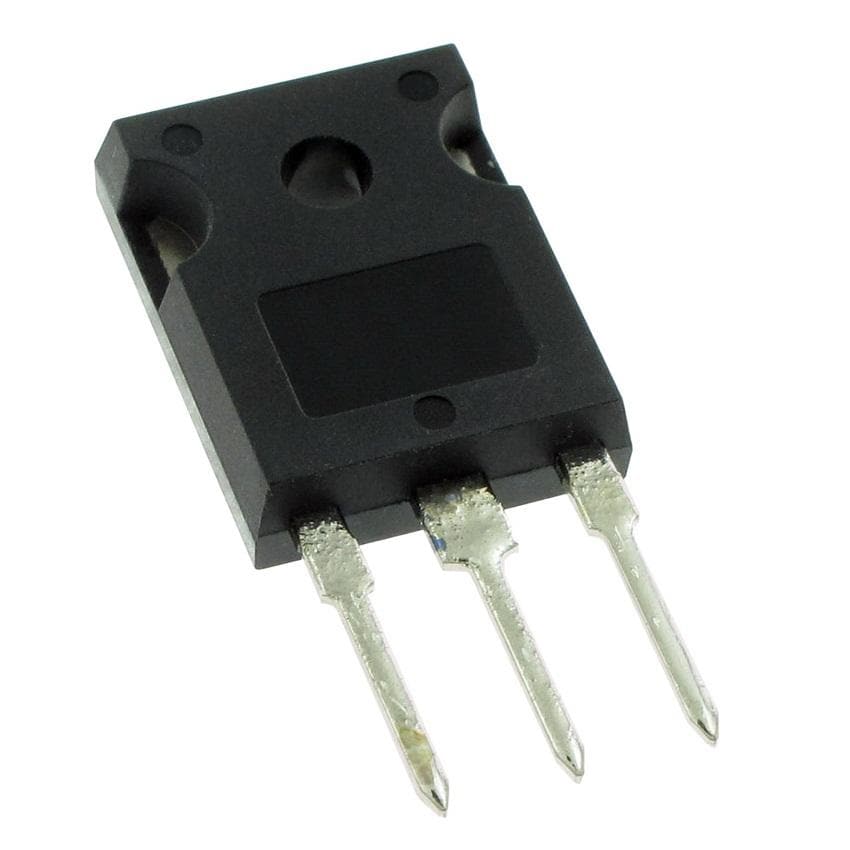

The IRG4PC50U IGBT Transistor – 600V 55A TO-247AC is a high-performance insulated gate bipolar transistor designed for demanding power switching applications. Combining the efficiency of a MOSFET with the high-current handling capabilities of a bipolar transistor, this IGBT is ideal for use in inverters, motor drives, and industrial power systems.
With a collector-emitter voltage rating of 600V and a continuous collector current of 55A, the IRG4PC50U delivers reliable performance in high-power environments. Its fast switching speeds and optimized switching energy characteristics make it suitable for applications requiring efficient power conversion and reduced energy loss.
Housed in a durable TO-247AC through-hole package, this transistor provides excellent thermal performance and is well-suited for heat sink mounting in professional and industrial designs.
Features
- High-performance IGBT for power switching applications
- 600V collector-emitter voltage rating
- 55A continuous collector current
- Fast switching speeds for efficient operation
- Low Vce(on) for reduced conduction losses
- High pulsed current capability (up to 220A)
- Durable TO-247AC package for effective heat dissipation
- Suitable for industrial and high-power electronics
Specifications
Electrical
- Collector-Emitter Voltage (Vce): 600V
- Continuous Collector Current (Ic): 55A
- Pulsed Collector Current (Icm): 220A
- Vce(on): 2V @ 15V, 27A
- Gate Charge: 180 nC
Switching Characteristics
- Turn-On Delay (Td on): 32 ns
- Turn-Off Delay (Td off): 170 ns
- Switching Energy:
- Turn-On: 120 µJ
- Turn-Off: 540 µJ
Power
- Maximum Power Dissipation: 200W
Thermal & Operating
- Operating Temperature Range: -55°C to 150°C (Junction)
Physical
- Package Type: TO-247AC
- Mounting: Through-hole
Test Conditions
- 480V, 27A, 5Ω, 15V
Applications
Ideal for high-power and industrial applications:
- Motor drives and control systems
- Power inverters and converters
- Switching power supplies (SMPS)
- Induction heating systems
- UPS and renewable energy systems
