Product Description

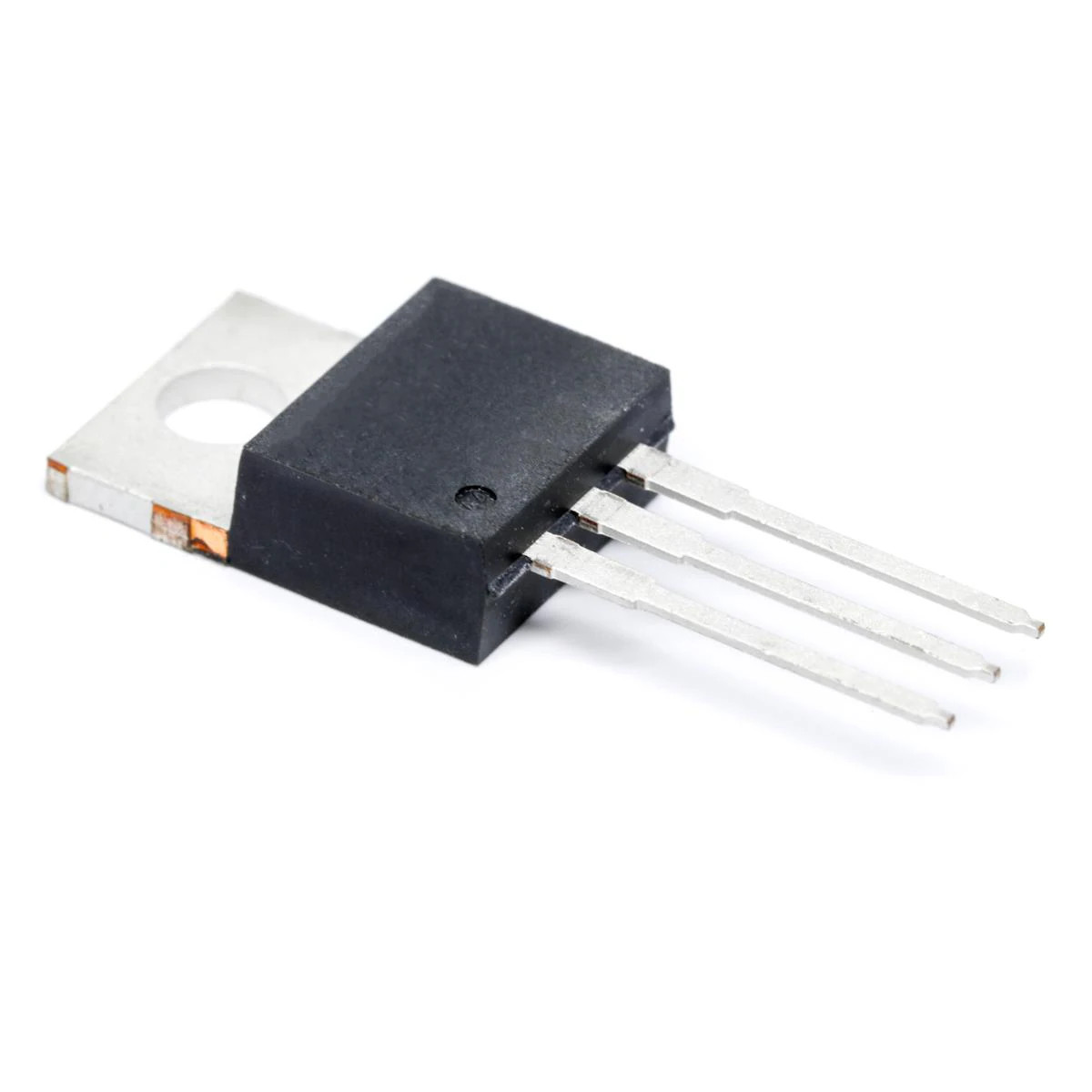

The STP16NF06 is a high-performance N-Channel power MOSFET designed for fast switching and efficient power management applications. Built using STMicroelectronics’ advanced STripFET™ technology, this MOSFET delivers low on-resistance, fast switching speeds, and reliable thermal performance for demanding electronic circuits.
With a 60V drain-source breakdown voltage and continuous drain current rating of 16A, the STP16NF06 is ideal for switching power supplies, motor control systems, DC-DC converters, audio amplifiers, and industrial electronics. Its TO-220 through-hole package provides excellent heat dissipation and simplified installation for repair, prototyping, and production applications.
The device features low gate charge and fast rise/fall times to improve switching efficiency while reducing power loss in high-speed circuits.
Features
- N-Channel enhancement-mode MOSFET
- 60V drain-source breakdown voltage
- 16A continuous drain current
- Low Rds(on) of 100 mOhms
- Fast switching performance
- Advanced STripFET™ technology
- TO-220 through-hole package
- High power dissipation capability
- Excellent thermal performance
Specifications
| Specification | Details |
|---|---|
| Product Type | MOSFET |
| Manufacturer Part Number | STP16NF06 |
| Transistor Type | N-Channel |
| Configuration | Single |
| Mounting Style | Through Hole |
| Package / Case | TO-220-3 |
| Drain-Source Voltage (Vds) | 60V |
| Continuous Drain Current (Id) | 16A |
| Drain-Source Resistance (Rds On) | 100 mOhms |
| Gate-Source Voltage (Vgs) | ±20V |
| Gate Threshold Voltage (Vgs th) | 2V |
| Gate Charge (Qg) | 10 nC |
| Power Dissipation (Pd) | 45W |
| Rise Time | 18 ns |
| Fall Time | 6 ns |
| Turn-On Delay Time | 7 ns |
| Turn-Off Delay Time | 17 ns |
| Operating Temperature Range | -55°C to +175°C |
| Channel Mode | Enhancement |
| Technology | STripFET™ |
| Packaging | Tube |
Applications
- Switching power supplies
- DC-to-DC converters
- Motor control systems
- Audio amplifier circuits
- LED drivers
- Industrial power electronics
- Inverters and PWM systems
- Repair and prototyping projects
