Product Description

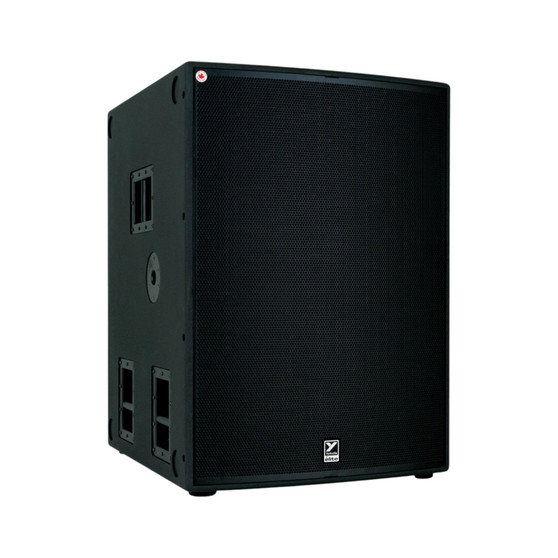

The Yorkville Elite EL24S is a groundbreaking professional 24-inch powered subwoofer designed to deliver exceptionally deep, powerful low-frequency performance for demanding live sound and professional audio applications. As the world's first 24-inch active subwoofer for live sound, the EL24S combines massive low-frequency output with Yorkville's proven engineering and rugged professional construction.
At the heart of the EL24S is a massive 24-inch neodymium woofer with a 6-inch (152 mm) voice coil, providing the displacement and power handling required to reproduce extremely deep bass at high output levels. The system delivers 5,000 watts of peak power and 2,500 watts of program power, with a maximum SPL of 143 dB peak and 137 dB continuous.
With a frequency response of 30 Hz–100 Hz, the EL24S reaches the lowest frequencies required for concert sound, touring systems, large-format PA applications, festivals, and other bass-intensive productions. An onboard limiter provides system protection while maintaining consistent performance at high output levels.
The rear panel provides two XLR/1/4-inch combo inputs, full-range parallel XLR outputs, and high-passed XLR outputs for flexible integration with professional sound systems. PowerCON® TRUE1-compatible input and output connectors provide secure power connections suitable for professional production environments.
The rugged enclosure is constructed from 15 mm birch plywood and finished with textured paint for long-term durability. Integrated casters and multiple bar handles make the large-format cabinet easier to transport and position, while top and side pole-mount adapters provide additional system configuration options.
Proudly manufactured at the Yorkville factory outside Toronto, Canada, the EL24S is designed for professionals who demand maximum low-frequency output from a self-powered subwoofer.
Features
- World's first 24-inch active subwoofer for live sound
- 5,000 watts peak power
- 2,500 watts program power
- 143 dB maximum peak SPL
- 137 dB continuous SPL
- Massive 24-inch neodymium woofer
- 6-inch (152 mm) voice coil
- 30 Hz–100 Hz frequency response
- Onboard limiter for system protection
- Two XLR/1/4-inch combo inputs
- Two full-range parallel XLR outputs
- Two high-passed XLR outputs
- PowerCON® TRUE1-compatible power input and output
- 15 mm birch plywood cabinet
- Powder-coated steel grille
- Rugged textured paint finish
- Two rigid and two swivel casters
- Multiple integrated bar handles
- Top and side pole-mount adapters
- Designed for professional live sound applications
- Made in Canada
Applications
- Concert Sound Reinforcement
- Touring Productions
- Large-Format PA Systems
- Festivals
- Live Events
- Outdoor Events
- Professional DJ Systems
- Production Companies
- Rental Companies
- Houses of Worship
- Performing Arts Venues
- Corporate Events
- Bass-Heavy Music Applications
- High-Output Sound Systems
Specifications
General
- Brand: Yorkville Sound
- Series: Elite
- Model: EL24S
- Product Type: Powered Subwoofer
- System Type: Active 24-Inch Subwoofer
- Manufacturing: Made in Canada
Power & Performance
- Power Rating: 5,000 W Peak / 2,500 W Program
- Maximum SPL: 143 dB Peak / 137 dB Continuous
- Frequency Response: 30 Hz–100 Hz ±3 dB
- Crossover Frequency: 100 Hz
- Limiter: Onboard
- Power Consumption: 6.5 A Typical / 12 A Maximum
Low-Frequency Driver
- Driver Size: 24 inches (610 mm)
- Driver Type: Neodymium Woofer
- Voice Coil Diameter: 6 inches (152 mm)
- LF Configuration: 1 × 24-Inch Neodymium Driver
Inputs & Outputs
- Inputs: 2 × XLR/1/4-inch TRS Combo
- Full-Range Outputs: 2 × XLR Link Outputs
- High-Pass Outputs: 2 × XLR
- Level Controls: Yes
- LED Indicators: Power, Activity, Protection
Power Connections
- Power Input: PowerCON® TRUE1 Compatible
- Power Output: PowerCON® TRUE1 Compatible
- Power Configuration: Input / Output
Physical Construction
- Enclosure Material: 15 mm Birch Plywood
- Metric Cabinet Material: 15 mm Birch Plywood
- Grille: Powder-Coated Steel
- Finish: Textured Paint
- Flying Hardware: None
- Pole Mount Adapters: 1 × Top, 1 × Side
Mobility
- Casters: 2 × Rigid, 2 × Swivel
- Bar Handles: 2 × Top, 6 × Side, 2 × Bottom
Dimensions & Weight
- Dimensions (D × W × H): 31.4 × 27.9 × 39 inches
- Dimensions (D × W × H): 79.8 × 70.9 × 99.1 cm
- Depth Including Casters: 36.6 inches
- Depth Including Casters: 93 cm
- Net Weight: 240 lbs
- Net Weight: 109 kg
