Product Description

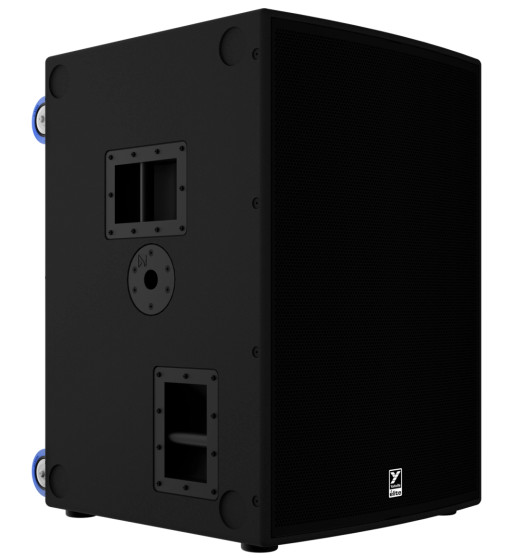

Streamlined and straightforward, the Yorkville Elite EL18S delivers essential features and premium components designed for professional users who demand high output, reliability, and exceptional sound quality in a compact footprint.
The EL18S is a powered 18-inch subwoofer delivering 3,200 watts of peak power (1,600 watts program), with a low-frequency extension down to 35 Hz. Its powerful 18-inch woofer with a 4-inch voice coil produces tight, punchy bass that’s ideal for live bands, DJs, mobile sound systems, and installed PA applications.
Built for the road, the EL18S features a rugged 15 mm birch plywood enclosure that provides durability and excellent acoustic performance. Top and side pole mount adapters allow for flexible system configurations, while integrated rear casters and multiple bar handles make transport manageable.
The rear panel offers dual XLR inputs, full-range parallel outputs, and high-passed XLR outputs, making it easy to integrate with full-range speakers. powerCON® TRUE1 input and output connectors ensure secure power connections, and an onboard limiter protects the system during high-output operation.
FM Electronics is an authorized Yorkville dealer, we offer a wide range of professional audio gear and services, including expert repairs, custom setups, and more!
FM Electronics es un distribuidor autorizado por Yorkville, ofrecemos una gran variedad de equipos y servicios profesionales para audio, incluyendo reparaciones, configuraciones personalizadas, y mas!
Features
-
Powered 18-inch professional subwoofer for live sound applications
-
3,200W peak power (1,600W program) for strong, controlled bass output
-
18” woofer with 4” voice coil and ceramic magnet
-
Frequency response down to 35 Hz
-
Onboard limiter for system protection
-
Dual XLR inputs with full-range parallel outputs
-
Dedicated high-passed XLR outputs for satellite speakers
-
Durable 15 mm birch plywood enclosure
-
Top and side pole mount adapters for flexible deployment
-
powerCON® TRUE1 input and output connectors
-
Made in Canada
Specifications
-
System Type: Powered Subwoofer
-
Power Rating: 3,200 W Peak / 1,600 W Program
-
Max SPL: 140 dB Peak / 134 dB Continuous
-
Frequency Response: 35 Hz – 100 Hz (±3 dB)
-
Crossover Frequency: 100 Hz
-
Low-Frequency Driver:
-
18” woofer
-
4” voice coil
-
Ceramic magnet
-
-
Inputs:
-
2 × Combo-jack (XLR / 1/4” TRS)
-
-
Outputs:
-
2 × XLR High-Pass
-
2 × XLR Link (Full Range)
-
-
Level Controls: Yes
-
LED Indicators: Power, Activity, Protection
-
Power Connectors: powerCON® TRUE1 (Input / Output)
-
Power Consumption (typ/max): 4 A / 10 A
-
Enclosure Material: 15 mm Birch Plywood
-
Grille: Powder-coated steel
-
Finish: Textured paint
-
Wheels: 4 × Swivel casters (rear)
-
Handles:
-
2 × Top
-
4 × Side
-
2 × Bottom
-
-
Pole Mount Adapter: 1 × Top, 1 × Side
-
Flying Hardware: No
Dimensions (D × W × H):
-
24.8” × 25.7” × 35.7”
-
Depth with casters: 29.8”
-
63 × 65.3 × 90.7 cm
-
Depth with casters: 75.7 cm
Weight:
-
176 lb
-
80 kg
