Product Description

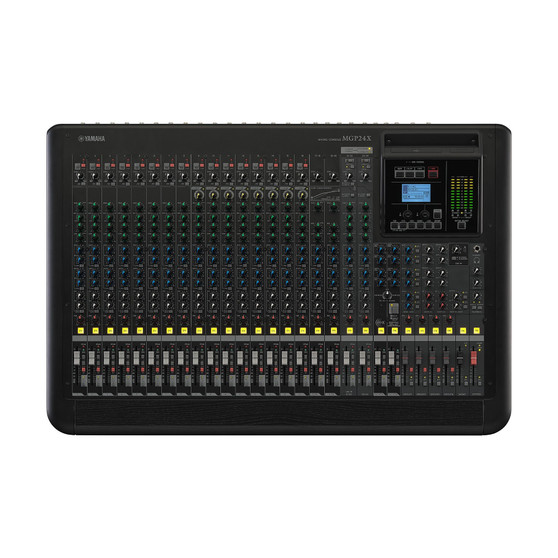

The Yamaha MGP24XA 24-Channel Premium Mixing Console combines the hands-on control of analog mixing with Yamaha's digital audio processing technologies. Designed for live sound, houses of worship, theaters, event production, and installed sound systems, this professional mixer provides flexible connectivity and comprehensive signal routing.
Featuring 16 microphone inputs with +48V phantom power and high-pass filters, along with 24 line inputs across 16 mono and four stereo channels, the MGP24XA accommodates microphones, instruments, playback devices, and other audio sources.
The console offers six AUX sends, two FX sends, four group buses, a stereo bus, matrix outputs, and a dedicated mono output. This routing flexibility helps sound engineers manage monitor mixes, effects, grouped signals, and distributed audio feeds.
Yamaha D-PRE microphone preamps provide detailed, natural sound reproduction, while the integrated REV-X reverb and SPX digital effects offer useful processing options without requiring additional external effects equipment for many applications. X-pressive EQ, one-knob compressors on selected channels, and the Stereo Hybrid Channel provide further control over the final mix.
USB connectivity and compatible iPod/iPhone integration add playback and digital workflow options. Built for professional environments, the Yamaha MGP24XA is a versatile solution for performers, sound engineers, venues, and production companies.
Features
-
24 line inputs: 16 mono and 4 stereo channels
-
16 microphone inputs with +48V phantom power
-
High-pass filters on microphone input channels
-
Yamaha D-PRE discrete Class-A microphone preamps
-
Yamaha X-pressive EQ based on Virtual Circuitry Modeling technology
-
One-knob compressors on selected mono channels
-
Dual onboard digital effects processors:
-
REV-X reverb with 8 programs
-
SPX effects with 16 programs
-
-
Six AUX sends plus two FX sends
-
Four group buses plus stereo bus
-
Matrix output capability
-
Dedicated mono output
-
Stereo Hybrid Channel with Priority Ducker, Leveler, and Stereo Image functions
-
USB connectivity for compatible devices
-
Compatible iPod/iPhone integration
-
MGP Editor app compatibility for supported devices
-
Durable metal chassis for professional use
-
Internal universal power supply
Applications
-
Live concerts and touring productions
-
Houses of worship and church sound systems
-
Theaters, auditoriums, and performance venues
-
Bands and musical ensembles
-
DJ and event production systems
-
Corporate events and conferences
-
Rehearsal rooms and music venues
-
Installed commercial sound systems
-
Multi-microphone stage setups
-
Monitor mixing and distributed audio applications
Specifications
General
-
Brand: Yamaha
-
Model: MGP24XA
-
Product Type: Premium analog mixing console with digital processing
-
Line Input Capacity: 24 line inputs
-
Mono Line Inputs: 16
-
Stereo Line Inputs: 4
-
Microphone Inputs: 16
-
Group Buses: 4
-
Stereo Bus: 1
-
AUX Sends: 6
-
FX Sends: 2
-
Matrix Outputs: Verify exact output count against the official MGP24XA technical specifications
-
Mono Output: 1
Audio Processing
-
Microphone Preamps: Yamaha D-PRE discrete Class-A
-
Phantom Power: +48V
-
High-Pass Filters: Per microphone input channel
-
Channel EQ: 3-band, with channel-specific configurations
-
Compression: One-knob compressors on selected channels
-
Digital Effects Processor 1: REV-X reverb
-
Digital Effects Processor 2: SPX effects
-
Stereo Hybrid Channel: Priority Ducker, Leveler, and Stereo Image functions
Connectivity
-
Microphone Inputs: 16
-
Mono Line Inputs: 16
-
Stereo Line Inputs: 4
-
Group Outputs: 4
-
AUX Sends: 6
-
FX Sends: 2
-
Stereo Outputs: 1 stereo pair
-
Matrix Outputs: Confirm before publication
-
Mono Output: 1
-
USB Connectivity: USB device connection
-
Digital Device Integration: Compatible iPod/iPhone connection
Power
-
Power Supply: Internal universal power supply
-
Input Voltage: Confirm against the official model specifications
-
Frequency: Confirm against the official model specifications
Physical Specifications
-
Width: 819 mm (32.2 in)
-
Height: 169 mm (6.7 in)
-
Depth: 565 mm (22.2 in)
-
Net Weight: 15.5 kg (34.2 lb)
Software and Accessories
-
Compatible Software: Yamaha MGP Editor app for supported Apple devices
-
Included Accessories: AC power cord and owner's manual, subject to package configuration
-
Product Series: Yamaha MGP Series
