Product Description

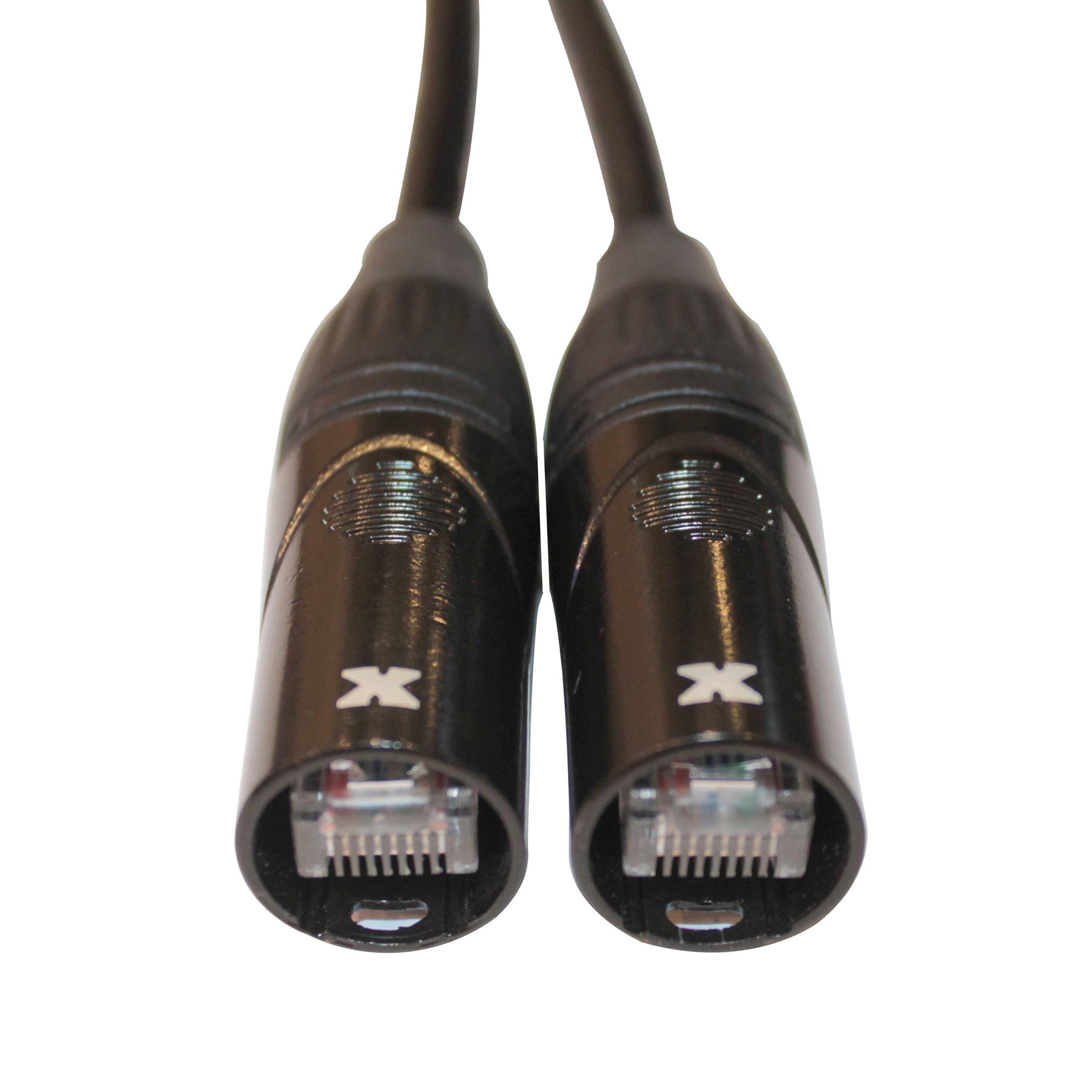

The ProX XC-CAT6-50 is a premium 50-foot (15.2 m) Shielded Twisted Pair (STP) Category 6 Ethernet cable engineered for professional live sound, digital audio networking, stage box connections, AV installations, and high-speed data transmission. Built with 100% Oxygen-Free Copper (OFC) conductors and advanced shielding, this cable delivers dependable performance while protecting signals from electromagnetic and radio frequency interference.
Designed for demanding touring and installation environments, the XC-CAT6-50 is ideal for digital snake systems, audio-over-Ethernet networks, DMX-over-Ethernet applications, broadcast facilities, and permanent installations. Its heavy-duty construction, premium ProX RJ45 connectors, and 550 MHz bandwidth ensure reliable signal integrity for mission-critical audio and network applications.
Unlike copper-clad aluminum (CCA) cables, the XC-CAT6-50 uses pure bare copper conductors, fully complying with UL Code 444, TIA-568-C.2, and National Electrical Code standards for superior conductivity, long-term durability, and safe operation.
Features
- 50 ft (15.2 m) Shielded Twisted Pair (STP) Category 6 Ethernet cable
- Supports bandwidth up to 550 MHz
- Genuine ProX RJ45 male connectors
- 100% Oxygen-Free Copper (OFC) conductors
- Braided tinned copper and aluminum foil shielding for superior EMI/RFI protection
- Cotton and polypropylene cross shielding for enhanced signal integrity
- Flexible thermoplastic polyolefin insulation with lead-free jacket
- Compact 6.8 mm cable diameter for easy routing
- IP65-rated when mated for dust and water resistance
- Individually tested for quality and performance
- Fully compliant with TIA/EIA-568B, ISO/IEC 11801, and EN 50173 Category 6 standards
- Designed for touring, stage production, AV systems, and professional networking
Specifications
| Specification | Details |
|---|---|
| Model | XC-CAT6-50 |
| Cable Type | Shielded Twisted Pair (STP) Category 6 |
| Cable Length | 50 ft (15.2 m) |
| Bandwidth | 550 MHz |
| Connectors | RJ45 Male to RJ45 Male |
| Conductor Material | 100% Oxygen-Free Copper (OFC) |
| Inner Conductor | 19 × 0.12 mm OFC |
| Shielding | Braided Tinned Copper + Aluminum Foil |
| Outer Diameter | 6.8 mm (0.27 in) |
| Capacitance | 46 pF/ft |
| Minimum Bend Radius | 1 in (25 mm) |
| Maximum Pulling Tension | 25 ft-lb (110 N) |
| Environmental Rating | IP65 (when mated) |
| Compliance | TIA/EIA-568B, ISO/IEC 11801, EN 50173 |
| UPC | 019372410072 |
Compatible Applications
- Digital Snake Systems
- Stage Boxes
- Audio-over-Ethernet Networks
- DMX-over-Ethernet Systems
- Broadcast Systems
- Live Sound Production
- AV Installations
- Recording Studios
- Professional Network Infrastructure
- RJ45 Cat3, Cat5, Cat5e, and Cat6 Devices
What's Included
- ProX XC-CAT6-50 50 Ft. Shielded Cat6 Ethernet Cable
