Product Description

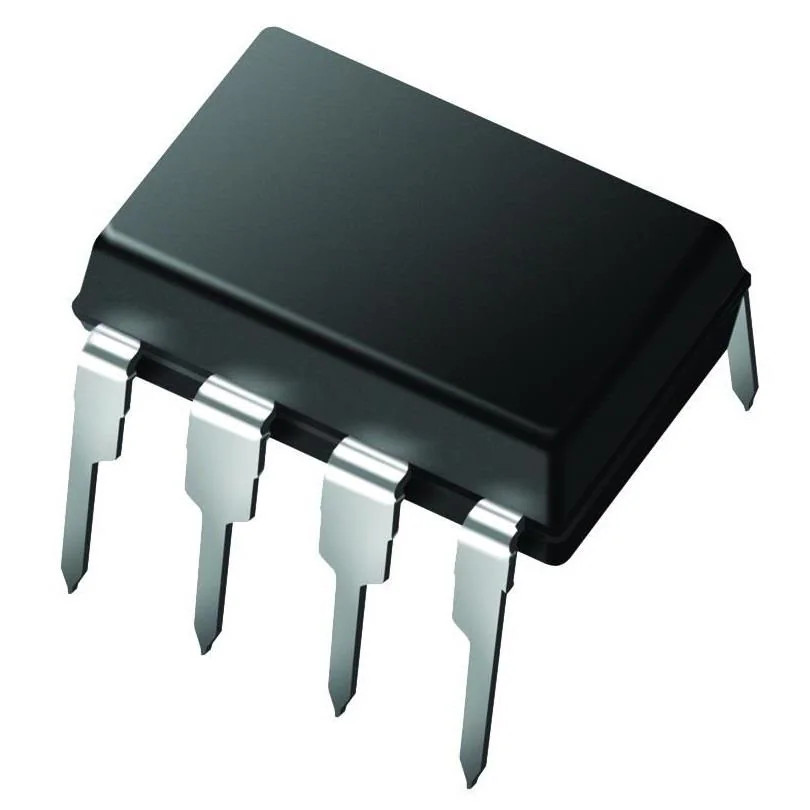

The TC1427CPA from Microchip Technology is a high-speed dual MOSFET gate driver designed for efficient low-side switching applications. Delivering up to 1.2A peak output current, this non-inverting gate driver provides fast rise and fall times for reliable control of MOSFETs, IGBTs, and other power switching devices.
Built for demanding electronic applications, the TC1427CPA supports both CMOS and TTL compatible logic inputs and operates across a wide supply voltage range from 4.5V to 16V. Its through-hole PDIP-8 package makes it ideal for prototyping, repair work, industrial electronics, and professional power management systems.
With fast switching performance, low operating current, and robust design, the TC1427CPA is an excellent choice for switching power supplies, motor drivers, audio amplifiers, and PWM control systems.
Features
- Dual low-side MOSFET gate driver
- 1.2A peak output current
- Non-inverting output configuration
- Fast switching performance
- CMOS and TTL compatible logic inputs
- Wide operating voltage range from 4.5V to 16V
- Through-hole PDIP-8 package
- Low operating supply current
- AEC-Q100 qualified
Specifications
| Specification | Details |
|---|---|
| Product Type | MOSFET Gate Driver |
| Manufacturer Part Number | TC1427CPA |
| Series | TC1427 |
| Product Category | Gate Drivers |
| Driver Type | Low-Side |
| Configuration | Non-Inverting |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 1.2A |
| Supply Voltage (Min) | 4.5V |
| Supply Voltage (Max) | 16V |
| Rise Time | 35 ns |
| Fall Time | 25 ns |
| Operating Supply Current | 13 mA |
| Power Dissipation | 730 mW |
| Logic Type | CMOS, TTL |
| Mounting Style | Through Hole |
| Package / Case | PDIP-8 |
| Operating Temperature Range | 0°C to +70°C |
| Qualification | AEC-Q100 |
| Packaging | Tube |
| Brand | Microchip Technology |
Applications
- MOSFET and IGBT driving
- Switching power supplies
- PWM motor control
- Audio amplifier circuits
- DC-to-DC converters
- Industrial control systems
- Power inverter designs
- DIY and repair electronics
