Product Description

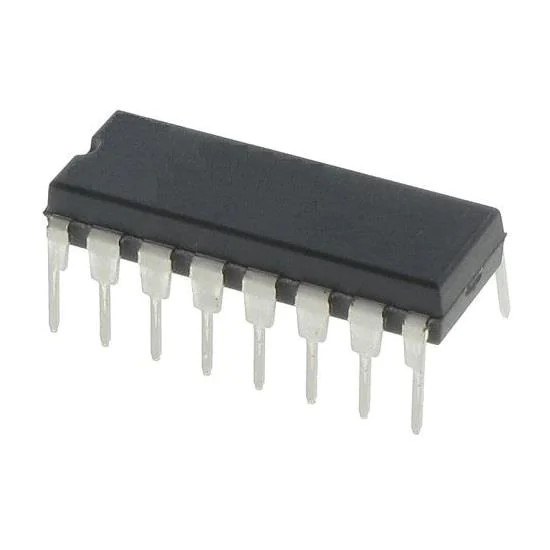

The SG3525ANG is a high-performance PWM switching controller IC designed for switching power supplies, DC-to-DC converters, inverters, motor control systems, and other power management applications. Featuring dual outputs, fast switching performance, and precise duty cycle control, this controller provides efficient and reliable operation in professional electronic designs.
With a maximum switching frequency of 400 kHz and support for output voltages up to 19V, the SG3525ANG is ideal for high-efficiency power conversion circuits. Its through-hole PDIP-16 package simplifies installation and servicing for prototyping, repair, and industrial applications.
Engineered for dependable performance, the SG3525ANG delivers fast rise and fall times, low power consumption, and stable operation across a wide range of switching applications.
Features
- Dual-output PWM switching controller
- High switching frequency up to 400 kHz
- Maximum duty cycle of 49%
- Supports output voltage up to 19V
- Fast 100 ns rise time and 50 ns fall time
- Through-hole PDIP-16 package for easy installation
- Stable and efficient PWM control
- Ideal for switching power supplies and converters
Specifications
| Specification | Details |
|---|---|
| Product Type | Switching Controller |
| Part Number | SG3525ANG |
| Number of Outputs | 2 Outputs |
| Switching Frequency | 400 kHz |
| Maximum Duty Cycle | 49% |
| Output Voltage | 19 V |
| Output Current | 400 mA |
| Rise Time | 100 ns |
| Fall Time | 50 ns |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +70°C |
| Mounting Style | Through Hole |
| Package / Case | PDIP-16 |
Applications
- Switching power supplies
- DC-to-DC converters
- PWM inverters
- Motor control systems
- Power regulation circuits
- Industrial electronics
- Audio amplifier power supplies
- DIY electronics and repair projects
