Product Description

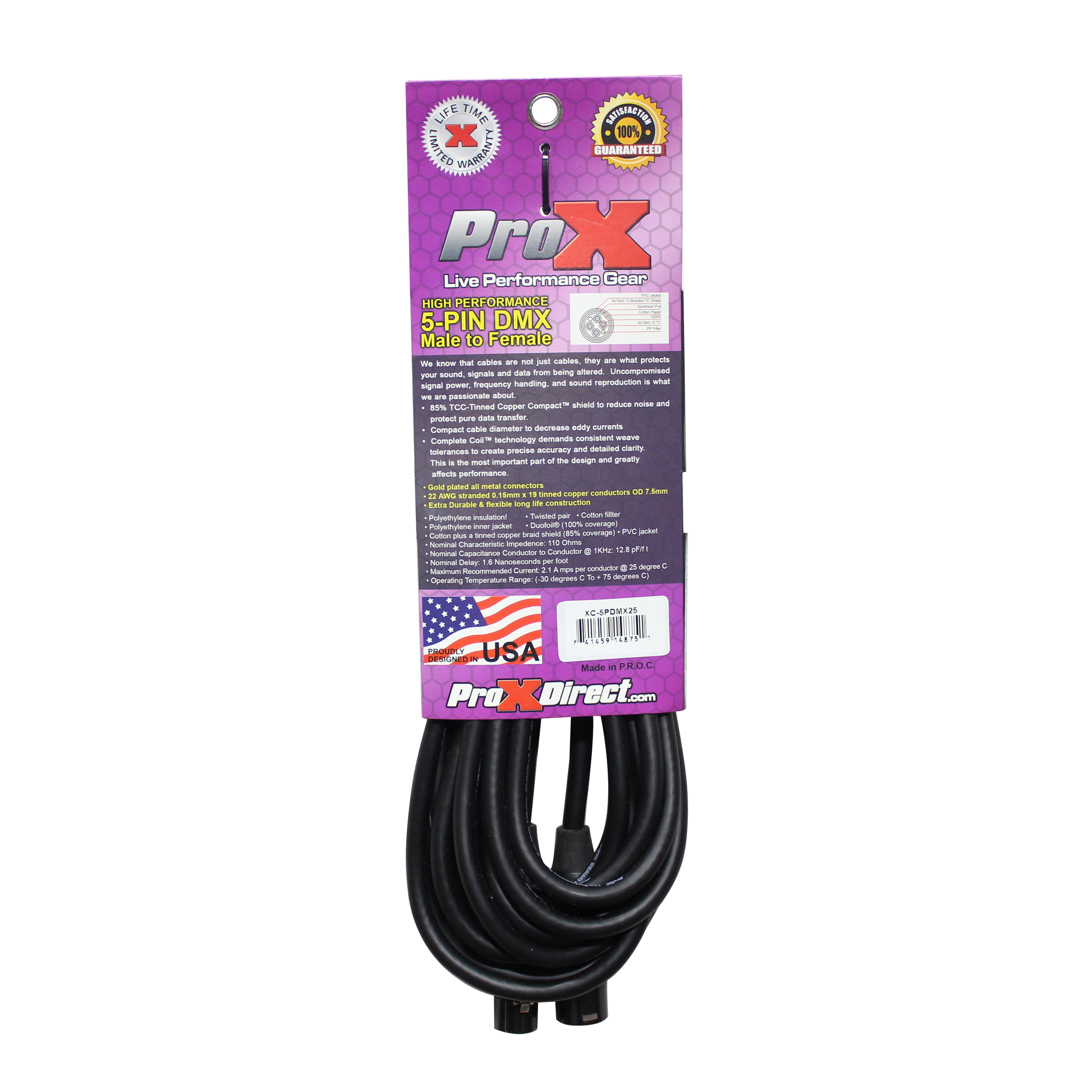

The ProX XC-5PDMX25 is a professional-grade 25-foot DMX cable designed for reliable lighting control and data transmission in stage, touring, and installation environments. Built for demanding applications, this cable ensures consistent DMX signal flow between fixtures, controllers, and other DMX-enabled devices.
Featuring Oxygen-Free Copper (OFC) conductors and a dual twisted-pair design, the XC-5PDMX25 delivers accurate 110-ohm impedance required for DMX512 signal integrity. Its advanced shielding—including duofoil and tinned copper braid—provides excellent protection against interference, ensuring clean and stable data transmission even in complex setups.
Constructed with a durable PVC outer jacket and high-quality all-metal 5-pin XLR connectors with gold-plated contacts, this cable is engineered to withstand bending, twisting, and heavy use on the road while maintaining long-term reliability.
Features
- 25 ft 5-pin DMX (XLR) cable for lighting control systems
- 110-ohm impedance for proper DMX512 signal transmission
- Dual twisted-pair (4 conductor) design
- Oxygen-Free Copper (OFC) conductors for optimal signal transfer
- Duofoil (100%) and braided shielding (85%) for noise rejection
- Gold-plated contacts for reliable connectivity
- Durable PVC jacket for rugged use
- Flexible, long-life construction for touring and stage environments
- ProX all-metal XLR-5 connectors
Specifications
- Cable Length: 25 ft (7.6 m)
- Connector Type: 5-pin XLR (DMX)
- Conductor: 20 AWG x 4 OFC
- Impedance: 110 ohms
- Insulation: Polyethylene
- Shielding:
- Duofoil (100% coverage)
- Tinned copper braid (85% coverage)
- Jacket Material: PVC
- Capacitance (Conductor to Conductor): 12.8 pF/ft @ 1 kHz
- Capacitance (Cond. to Shield): 23 pF/ft @ 1 kHz
- Velocity of Propagation: 66%
- Delay: 1.6 ns/ft
- DC Resistance (Conductor): 24 ohms/1000 ft
- DC Resistance (Shield): 3.4 ohms/1000 ft
- Attenuation: 0.6 dB/100 ft @ 1 MHz
- Max Current: 2.1A per conductor @ 25°C
- Operating Temperature: -30°C to +75°C
