Product Description

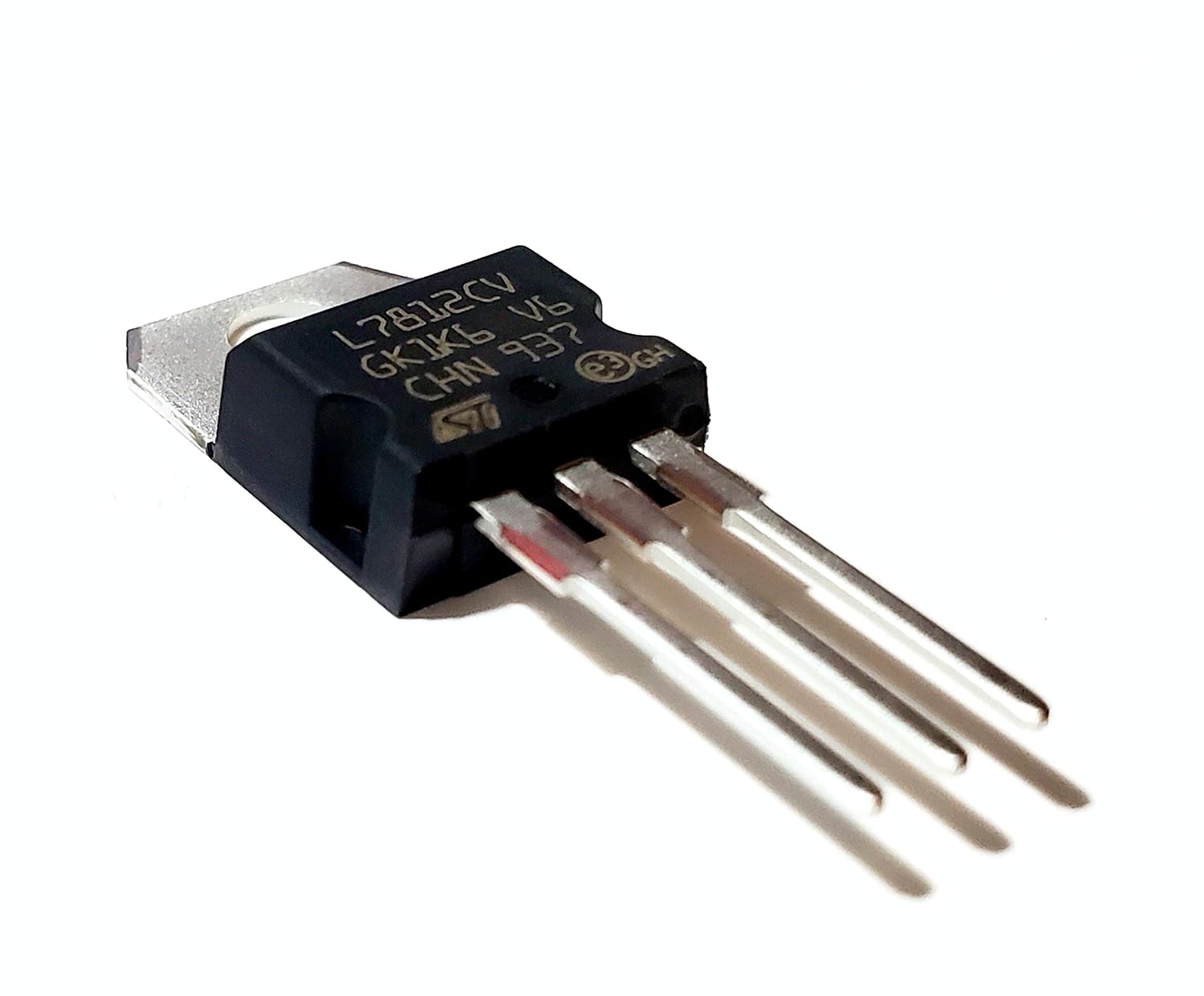

The L7812CV Linear Voltage Regulator IC is a reliable three-terminal positive voltage regulator designed to provide a stable 12V fixed output for a wide range of electronic circuits and power supply applications. Housed in the industry-standard TO-220AB package, the L7812CV is capable of delivering up to 1.5A output current when used with an adequate heat sink.
Featuring built-in current limiting, thermal overload protection, and safe operating area (SOA) protection, the L7812CV is designed for dependable long-term operation and enhanced circuit safety. These integrated protection features make the regulator highly resistant to damage caused by overloads or excessive temperatures.
Ideal for power supplies, embedded systems, DIY electronics, Arduino projects, industrial controls, and repair work, the L7812CV eliminates the need for complex voltage regulation circuitry while providing clean and consistent 12V DC output. Although primarily intended as a fixed-voltage regulator, it can also be combined with external components for adjustable voltage and current applications.
Features
- Fixed +12V output voltage
- Delivers up to 1.5A output current with proper heat sinking
- Industry-standard TO-220AB package
- Three-terminal positive linear voltage regulator
- Internal current limiting protection
- Thermal overload shutdown protection
- Safe operating area (SOA) protection
- Low-cost and highly reliable design
- Excellent line and load regulation
- Suitable for breadboards, prototyping, repairs, and production
- Can be used with external components for adjustable applications
Applications
- Linear Power Supplies
- Arduino & Microcontroller Projects
- DIY Electronics
- Industrial Control Circuits
- Audio Equipment
- Consumer Electronics
- Test Equipment
- Voltage Regulation Circuits
- Electronic Repair
- Breadboard Prototyping
Specifications
General
- Product Type: Linear Voltage Regulator IC
- Model: L7812CV
- Series: 78XX Positive Voltage Regulators
- Package: TO-220AB (TO-220)
Electrical
- Output Voltage: +12V DC (Fixed)
- Output Current: Up to 1.5A
- Regulator Type: Positive Linear Regulator
- Number of Outputs: 1
Protection Features
- Internal Current Limiting
- Thermal Shutdown Protection
- Safe Operating Area Protection
Package
- Mounting Style: Through Hole
- Package Type: TO-220AB
- Pins: 3
