Product Description

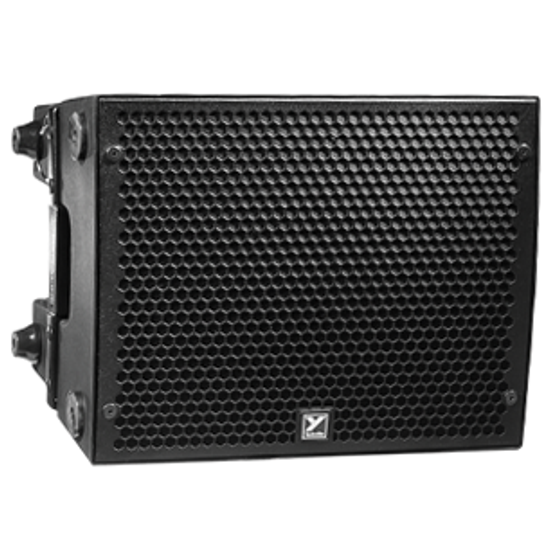

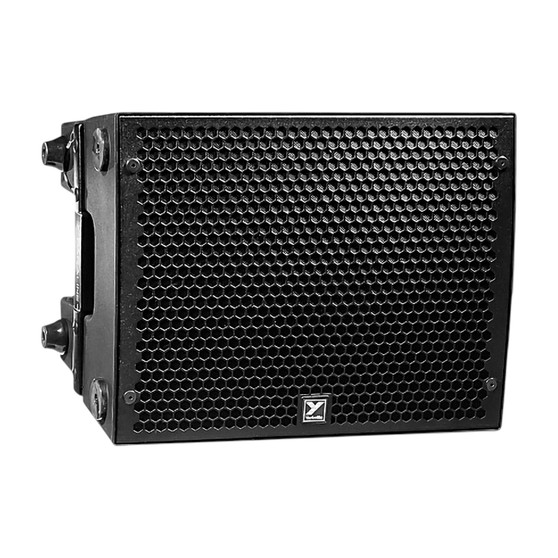

The Yorkville Paraline PSA1 is a 700-watt active compact line array loudspeaker engineered to deliver the clarity, projection, and controlled coverage of a professional line array system in a lightweight, portable enclosure. Incorporating Yorkville Sound's patented Paraline® high-frequency lens technology, originally developed for the flagship VTC Elevation Series, the PSA1 provides exceptional vocal intelligibility, consistent coverage, and outstanding performance for live sound applications.
Equipped with four high-performance 6-inch neodymium low-frequency drivers and dual BMS 1-inch compression drivers featuring 1.75-inch voice coils, the PSA1 delivers a focused 15° vertical dispersion and a wide 110° horizontal coverage, making it ideal for audiences requiring even sound distribution with minimal interference between cabinets.
Designed for mobile entertainers, production companies, houses of worship, and permanent installations, the PSA1 mounts easily on a standard speaker stand using its integrated dual-angle pole mount. Up to two cabinets can safely be stacked on a single speaker stand, while optional rigging hardware allows suspended installations. Efficient Class D and Class H amplification provides reliable performance while allowing up to four PSA1 cabinets to operate from a single 15-amp circuit.
Proudly Made in Canada, the Yorkville Paraline PSA1 offers premium sound quality, innovative technology, and dependable construction for demanding professional audio environments.
Features
- 700W active compact line array loudspeaker
- Patented Yorkville Paraline® horn lens technology
- Four 6-inch neodymium low-frequency drivers
- Dual 1-inch BMS compression drivers with 1.75-inch voice coils
- Wide 110° horizontal coverage
- Focused 15° vertical dispersion
- Integrated Class D and Class H amplification
- Peak and average limiting protection
- Excursion and RMS woofer protection
- Lightweight, durable injection-molded ABS enclosure
- Dual-angle integrated speaker pole mount
- Stack up to two cabinets on a standard speaker stand
- Optional flying hardware available
- Convection cooling system
- Locking IEC power input with loop-through output
- HF Boost and Full Range/Sub mode switches
- Made in Canada
Applications
- Live Sound Reinforcement
- Mobile DJs
- Concert Venues
- Houses of Worship
- Corporate Events
- Portable PA Systems
- Rental Companies
- Clubs and Bars
- Outdoor Events
- Permanent Installations
Specifications
General
- Model: Paraline PSA1
- Manufacturer: Yorkville Sound
- Speaker Type: Active Compact Line Array
- Made In: Canada
Power
- Program Power: 700 Watts
- Peak Power: 1,200 Watts
- LF Amplifier: 625W Class D
- HF Amplifier: 75W Class H
Performance
- Maximum SPL: 128 dB Peak / 125 dB Continuous
- Frequency Response: 75 Hz – 20 kHz (±3 dB)
- Crossover Frequency: 1.2 kHz
Drivers
- Low Frequency: 4 × 6-inch Neodymium Drivers
- Voice Coil: 45 mm
- High Frequency: 2 × 1-inch Ceramic Compression Drivers
- HF Voice Coil: 1.75-inch
Coverage
- Horizontal Dispersion: 110°
- Vertical Dispersion: 15°
Inputs & Controls
- Input Connector: Combo XLR / 1/4-inch
- Input Sensitivity:
- 1.4 Vrms (Center)
- 0.35 Vrms (Maximum)
- Level Control: Volume
- EQ Controls:
- HF Boost
- Full Range / Sub Switch
- LED Indicators:
- Power
- Clip
- Limit
Protection
- Peak Limiting
- Average Limiting
- RMS Protection
- Excursion Protection
Power
- Cooling: Convection
- Power Connector: Locking IEC Input & Loop Output
- Power Switch: Yes
- Typical Power Consumption: 135 VA
- Maximum Power Consumption: 225 VA
Construction
- Cabinet Material: Injection-Molded ABS
- Baffle Material: Injection-Molded ABS
- Finish: Painted
Dimensions & Weight
- Dimensions: 20.5 × 16 × 14.5 in (52.1 × 40.6 × 36.8 cm)
- Weight: 52 lb (23.6 kg)
