Product Description

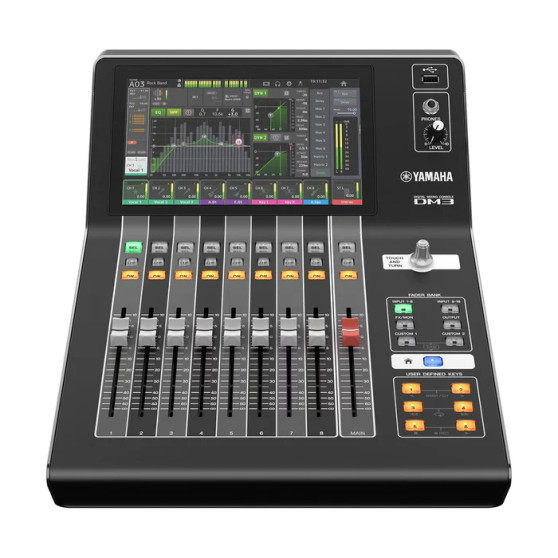

Yamaha DM3Standard 22-channel Digital Mixer
The Yamaha DM3S is a 22-channel digital mixer that packs a punch despite its incredibly compact size. With its cutting-edge features, this mixer is easy to navigate, thanks to its intuitive 9-inch touchscreen and single, all-purpose control knob. The DM3S delivers high-quality audio with 96kHz resolution, complemented by 16 exceptional microphone preamps and eight analog outputs. Building on Yamaha's legendary digital effects heritage, the DM3S offers a range of impressive audio processing capabilities.
Additionally, it provides multiple recording and streaming options, including an 18 x 18 USB interface and direct recording to a USB drive. For added flexibility, the DM3S also features a DAW remote mode with transport control and custom control via OSC, USB-MIDI, and ProVisionaire. Overall, the Yamaha DM3S is the perfect solution for those seeking a compact digital mixer with no compromises or sacrifices. Available at DJEshop FM Electronics.
Yamaha DM3Standard 22-channel Digital Mixer Features:
- Packs 22 channels into an ultra-compact digital mixer: 16 mono channels, 1 stereo channel, and 2 stereo FX returns
- 9-inch touchscreen and single all-purpose touch-and-turn knob provide easy operation and navigation
- Capable of sampling rates as high as 96kHz
- 6 mono or 3 stereo mixes, 2 matrixes, and 1 stereo bus
- 16 outstanding mic preamps and 8 convenient analog outputs
- Excellent built-in DSP effects
- 18 x 18 USB audio interface for playback and recording
- 2 x 2 recording directly to a USB drive
- DAW remote mode with transport control
- Custom control via OSC, USB-MIDI, and Yamaha's power
Yamaha DM3Standard Tech Specs:
- Type:Digital Mixer
- Channels:22

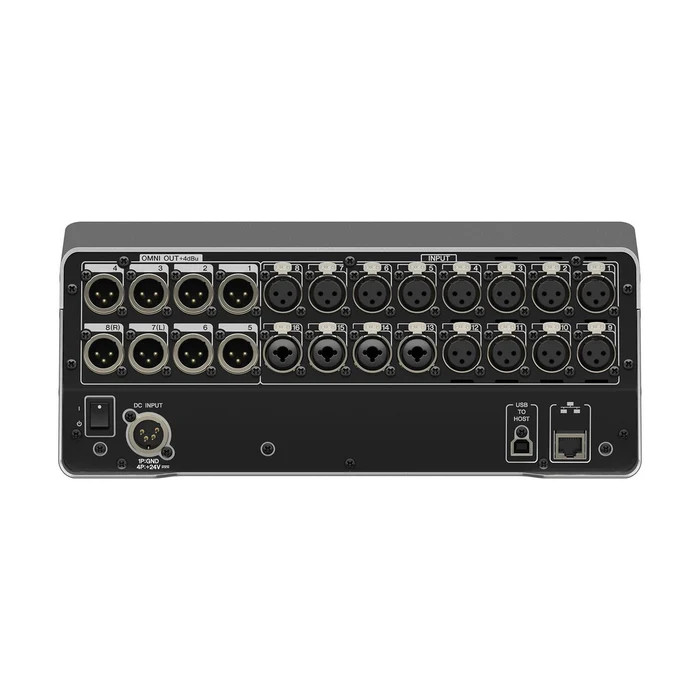

- Inputs - Mic Preamps:12 x XLR, 4 x XLR-1/4" combo
- Phantom Power:16 Channels
- Outputs - Main:8 x XLR
- Busses/Groups:Internal (1 x stereo, 6 x mix, 2 x FX, 2 x matrix)
- Data I/O:1 x RJ-45 (LAN)
- Headphones:1 x 1/4"
- USB:1 x Type A, 1 x Type B
- Computer Connectivity:USB (18 x 18)
- Faders:9 x 100mm Motorized Faders
- A/D Resolution:Up to 96kHz
- DAW Control:Yes
- Screen:9" touchscreen
- Storage:USB slot
- Power Source:24V DC, 2.5 Power Supply (included)
- Height:5.5"
- Depth:17.9"
- Width:12.6"
- Weight:14.33 lbs
