Product Description

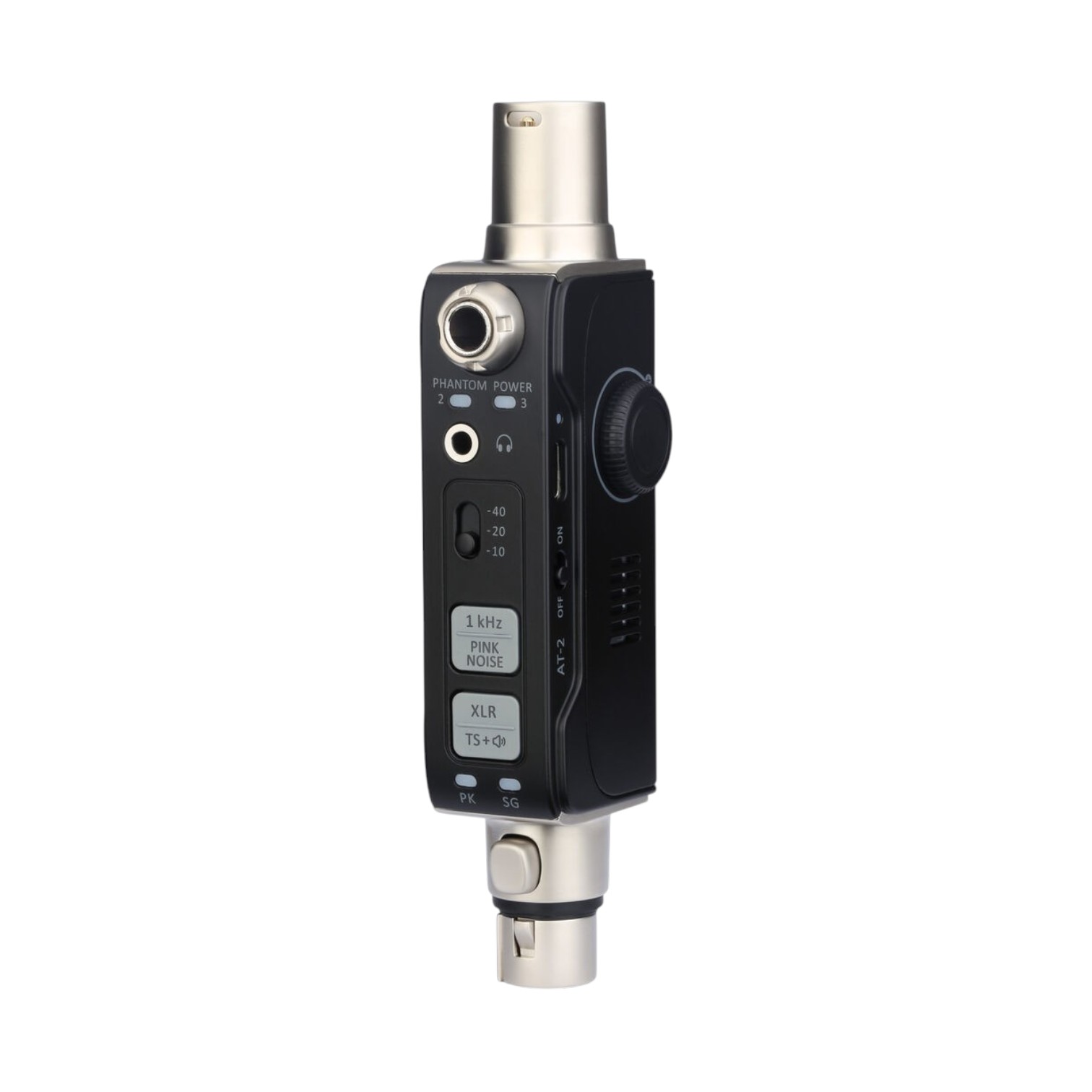

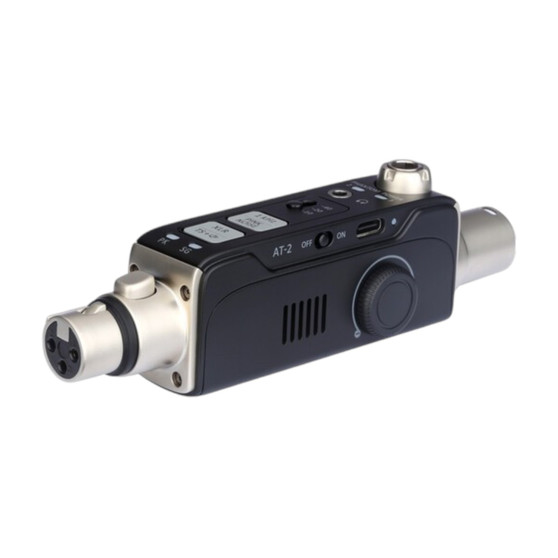

The AT-2 Audio Tester Pro is a compact and versatile all-in-one diagnostic tool designed for audio professionals, technicians, and engineers. Combining a signal generator, cable tester, input meter, and monitoring system, this device provides everything needed to quickly test and troubleshoot audio equipment in the field or studio.
Equipped with a built-in signal generator, the AT-2 can output a 1 kHz sine wave or pink noise through XLR, 1/4", and 1/8" connectors with selectable output levels. It also features an XLR cable tester to verify proper pin functionality, ensuring cables are operating correctly.
The integrated XLR input metering allows you to measure signal strength, while the phantom power check verifies voltage levels to ensure microphones and equipment receive proper power. For real-time monitoring, the unit includes headphone and speaker output via a 1/8" jack.
With fast USB-C charging and up to 4 hours of battery life, the AT-2 Audio Tester Pro is an essential tool for testing PA systems, mixers, cables, DI boxes, IEM systems, and more.
Features
- All-in-one audio testing and diagnostic tool
- Built-in signal generator (1 kHz sine wave and pink noise)
- Multiple output connectors: XLR, 1/4", and 1/8"
- Selectable output levels: -10 dB, -20 dB, -40 dB
- XLR cable tester for pin-to-pin verification
- XLR input metering for signal level measurement
- Phantom power voltage testing (44–52V / 24–44V indicators)
- Headphone monitoring via 1/8" output
- USB-C rechargeable battery (1.5-hour charge time)
- Up to 4 hours of operation on a full charge
- Compact and portable design
Specifications
Signal Generator
- 1 kHz Tone Output: -40, -20, -10 dBu (±1 dB)
- Pink Noise Output: -40, -20, -10 dBu (±1 dB)
Input / Output
- XLR Balanced Output Impedance: 350 Ω
- 1/4" Output Impedance: 600 Ω
- Input Impedance:
- XLR: 3 kΩ
- 1/4": 600 Ω / 3.5 kΩ
Metering
- Input Meter Threshold (SG): -20 dBu
- Input Meter Threshold (PK): +10 dBu
Phantom Power
- Voltage Detection:
- Solid: 44 – 52 V
- Flashing: 24 – 44 V
Cable Tester
- DC Voltage: 3.3 V
Power
- Charging: USB-C
- Charging Time: 1.5 hours
- Battery Life: Up to 4 hours
What’s Included
- AT-2 Audio Tester Pro
- Holster pouch
- 1/4" male to 1/4" male adapter
- USB-C charging cable
Applications
Ideal for testing and troubleshooting:
- Powered PA speakers
- Audio cables (XLR, 1/4", etc.)
- Mixers and audio interfaces
- DI boxes and IEM systems
- Effect pedals and signal chains
- Live sound and studio environments
