Product Description

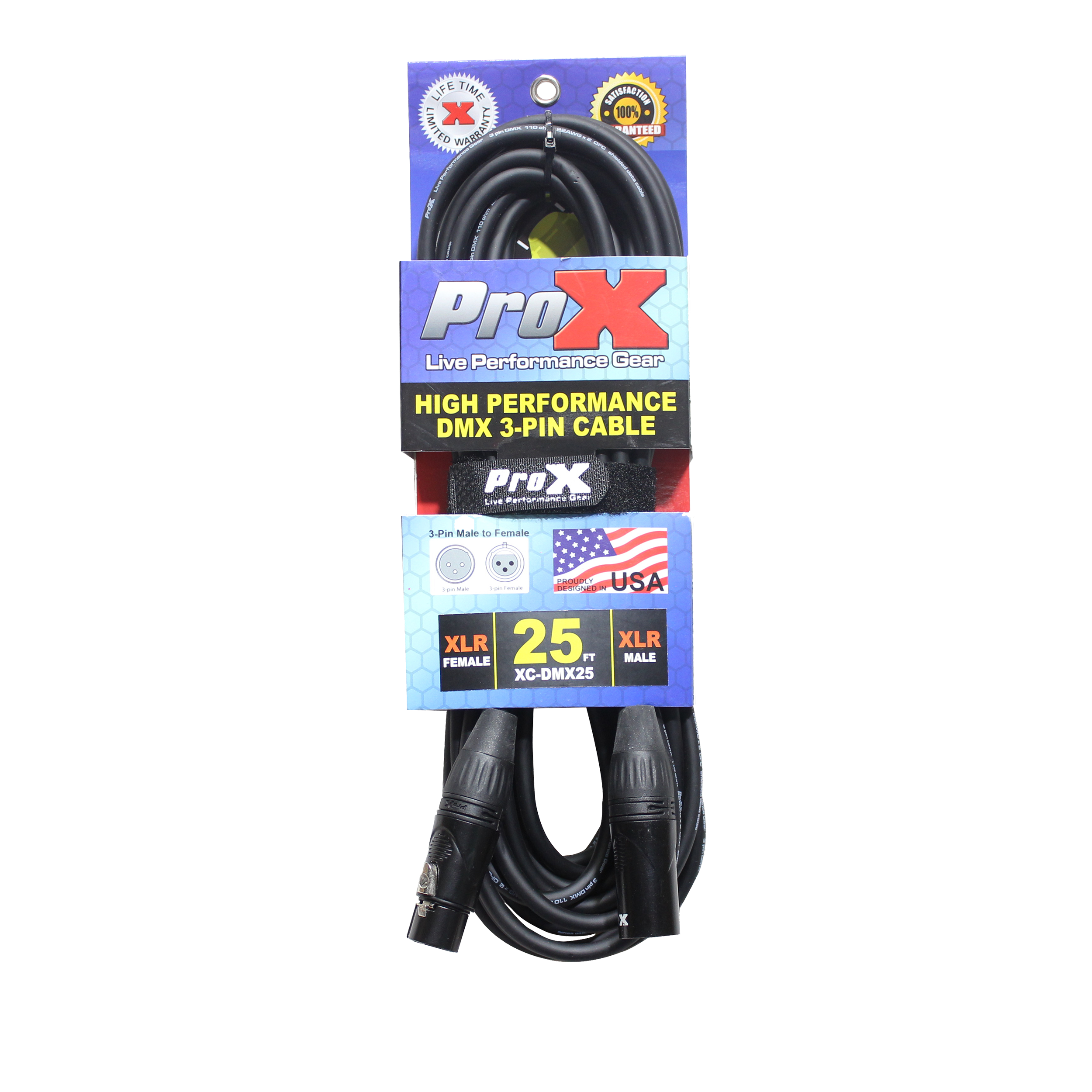

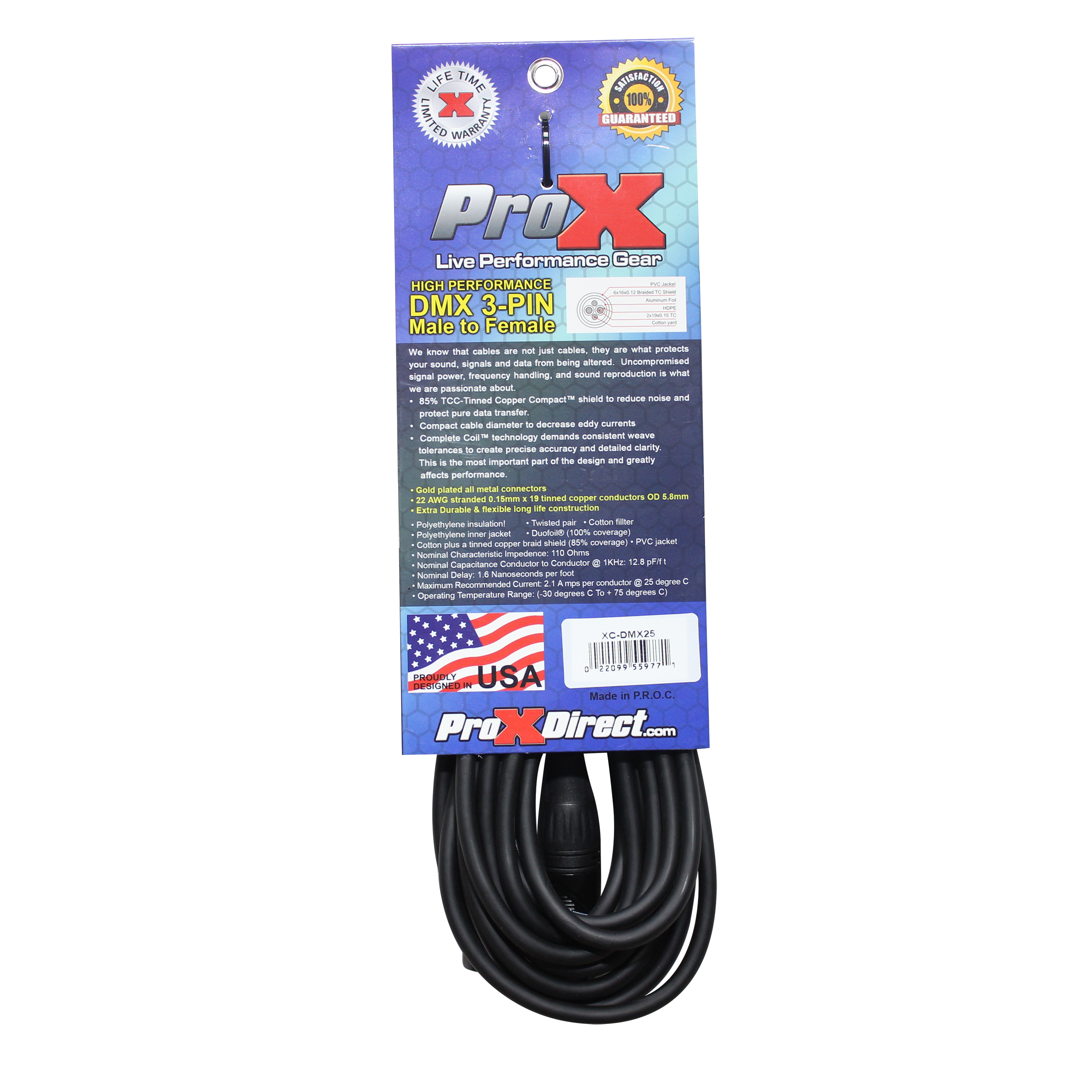

The ProX XC-DMX25 25 Ft High-Performance DMX XLR3-M to XLR3-F Cable is designed for professional lighting control applications where precise, noise-free DMX data transmission is critical. Ideal for stage lighting controllers, fixtures, mobile DJ rigs, and permanent installations, this cable ensures reliable control signal flow in demanding environments.
Built with Oxygen-Free Copper (OFC) conductors and advanced shielding, the XC-DMX25 protects DMX data from interference and signal degradation. The DuoFoil® shield combined with braided OFC copper blocks noise while maintaining consistent impedance for accurate DMX512 performance.
Engineered for touring and production use, this cable resists bending and twisting and is manufactured using Complete Coil technology, which maintains consistent weave tolerances for precise data transmission and long-term durability.
Note: DMX cables are not interchangeable with audio cables. Always use true DMX-rated cables to ensure reliable lighting control performance.
Features
-
25 ft professional DMX patch cable
-
3-pin XLR male to 3-pin XLR female connectors
-
ProX-branded all-metal XLR connectors
-
Gold-plated contacts for superior data transfer
-
Oxygen-Free Copper (OFC) conductors
-
DuoFoil® and braided copper shielding for noise rejection
-
Extra durable and flexible construction
-
Designed for touring, stage, and DJ lighting systems
-
ProX Limited Lifetime Warranty
Specifications
-
Product Name: ProX XC-DMX25
-
Product Type: DMX Lighting Control Cable
-
Cable Length: 25 ft
-
Connector A: XLR 3-Pin Male
-
Connector B: XLR 3-Pin Female
-
Conductor Type: Oxygen-Free Copper (OFC)
-
Conductor Gauge: 20 AWG × 2
-
Insulation: Polyethylene
-
Inner Jacket: Polyethylene
-
Shielding:
-
DuoFoil® (100% coverage)
-
Cotton filler with tinned copper braid (85% coverage)
-
-
Jacket Material: PVC
-
Characteristic Impedance: 110 Ohms
-
Nominal Capacitance (Conductor to Conductor @ 1 kHz): 12.8 pF/ft
-
Nominal Capacitance (Conductor to Shield @ 1 kHz): 23 pF/ft
-
Velocity of Propagation: 66%
-
Delay: 1.6 ns/ft
-
Maximum Recommended Current: 2.1 A per conductor @ 25°C
-
Operating Temperature Range: −30°C to +75°C
