Product Description

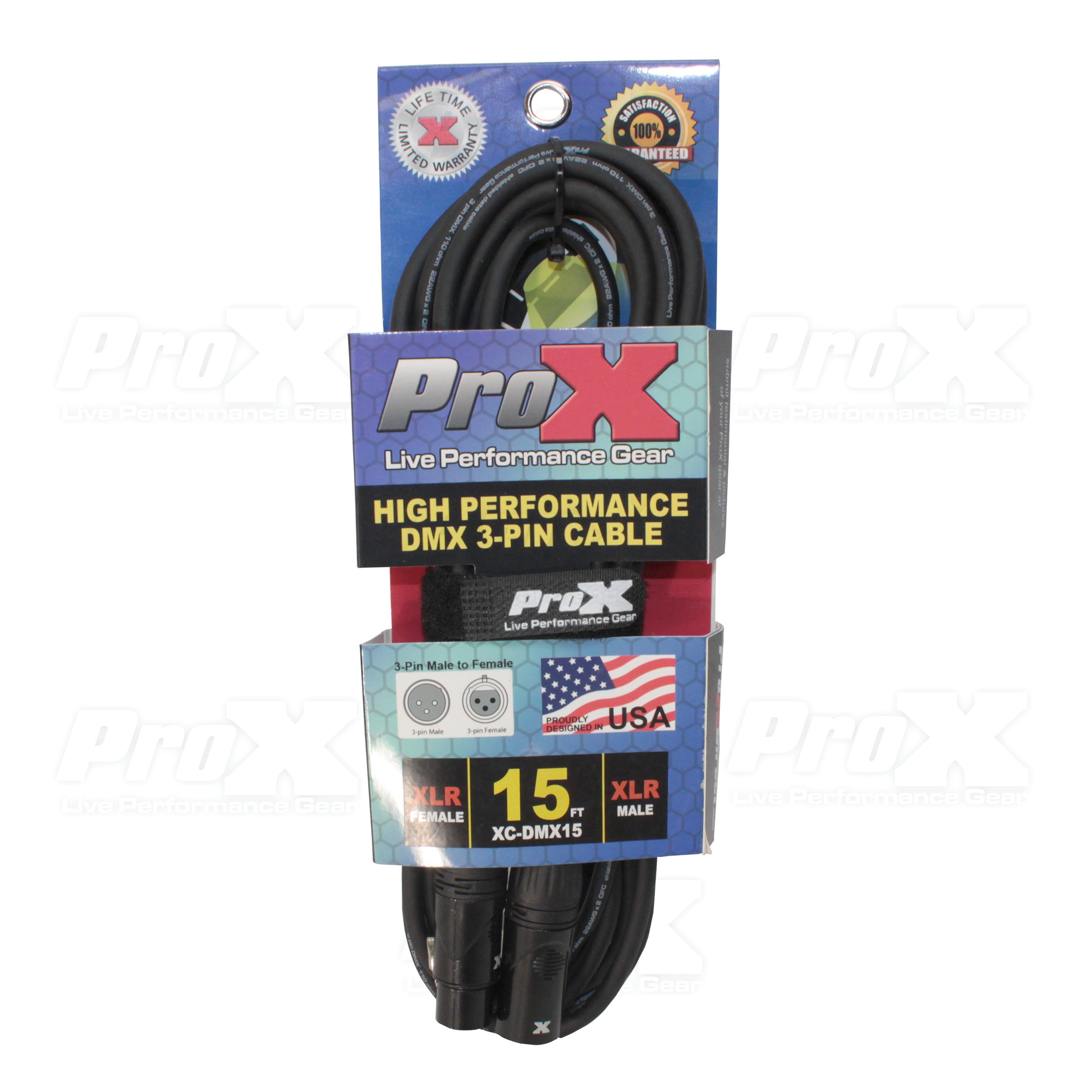

The ProX XC-DMX15 15 ft High Performance DMX Cable is engineered for professional lighting control, touring, and live production environments where reliable DMX data transmission is critical. Designed to connect devices with XLR3-M to XLR3-F DMX input/output, this cable ensures accurate signal delivery for consistent lighting performance.
Constructed with 22AWG Oxygen-Free Copper (OFC) conductors, the XC-DMX15 delivers precise and stable DMX data transfer. Its twisted-pair data design, combined with DuoFoil® shielding and braided OFC copper compact shielding, provides superior noise rejection and protects against interference in demanding stage and venue environments.
ProX DMX cables are built with tour-grade durability, designed to withstand constant bending, twisting, and heavy use. The Complete Coil technology maintains consistent weave tolerances, which is essential for accurate data transmission and long-term reliability. A rugged PVC outer jacket and premium insulation materials ensure dependable performance show after show.
Important Note: DMX data cables are not interchangeable with audio cables. Always use proper DMX-rated cables for lighting control to ensure reliable operation and prevent signal issues.
Features
-

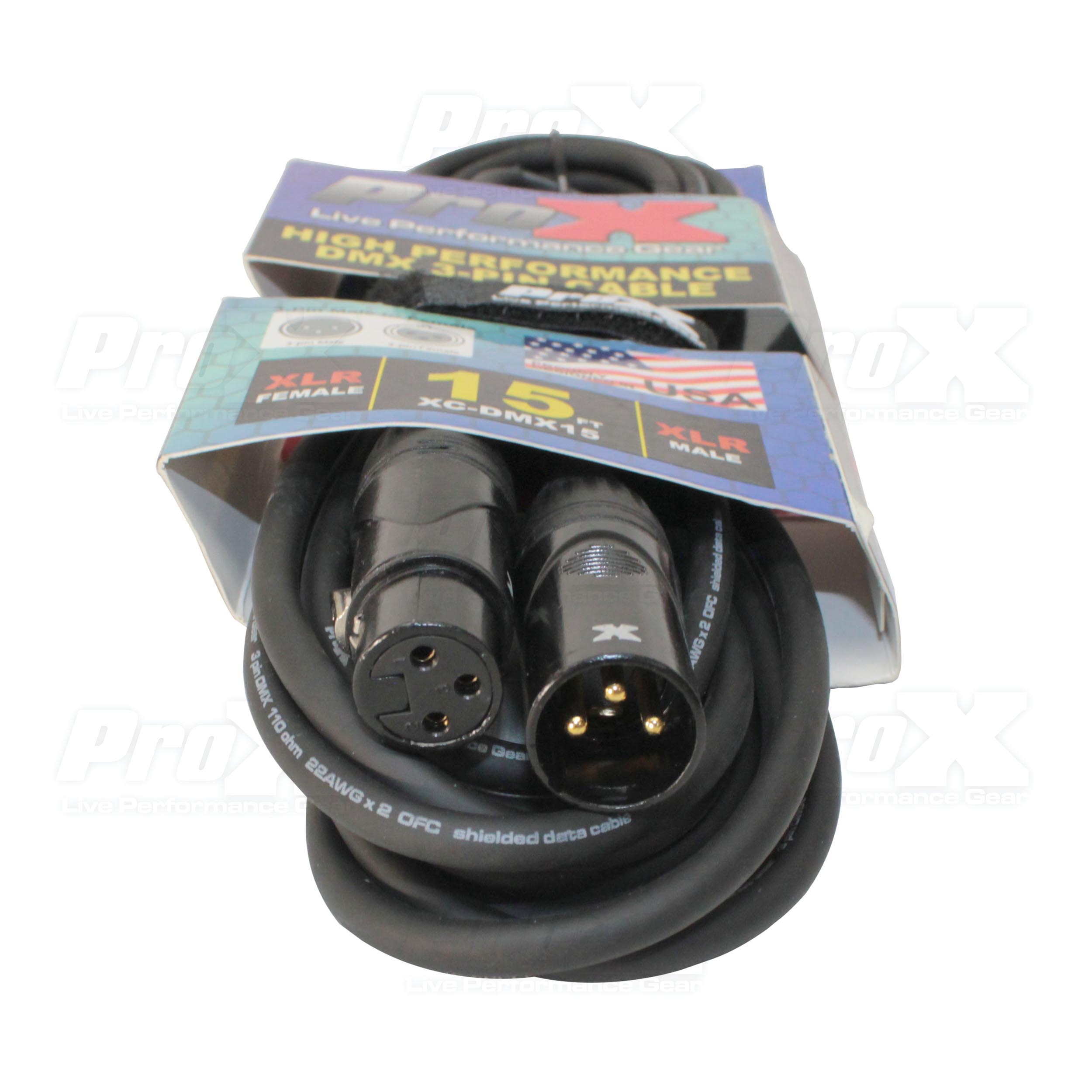

DMX XLR3-M to XLR3-F high-performance data cable
-
Ideal for professional lighting control and DMX applications
-
22AWG Oxygen-Free Copper (OFC) conductors
-
Twisted-pair DMX data cable design
-
DuoFoil® shielding with braided OFC copper compact shield
-
Gold-plated contacts for superior data transfer
-
ProX-branded all-metal XLR connectors
-
Extra-durable, flexible long-life construction
-
Designed to withstand bending and twisting
-
ProX Limited Lifetime Warranty

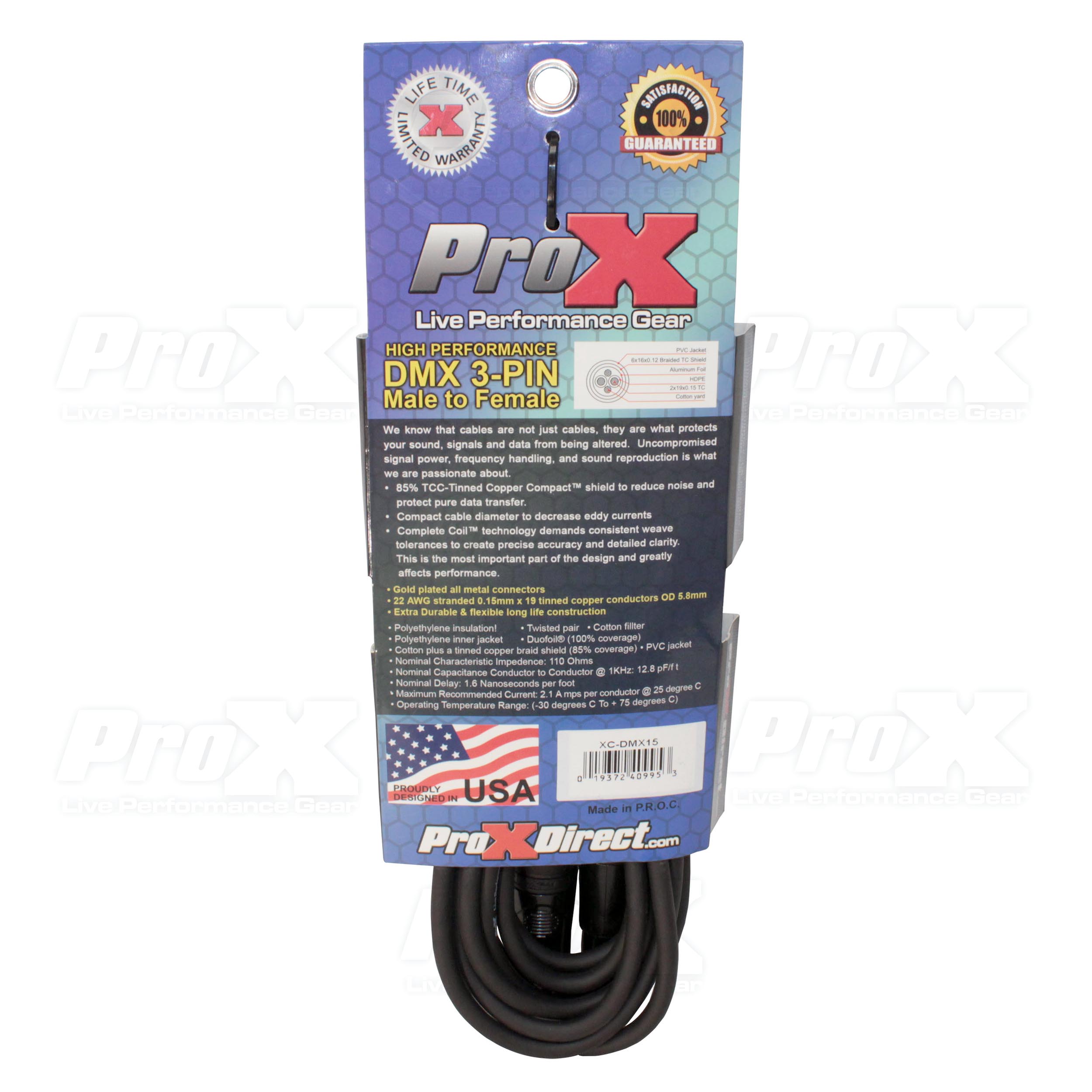

Technical Specifications
-
Length: 15 ft
-
Cable Type: DMX XLR3-M to XLR3-F
-
Conductor: 22AWG x 2 Oxygen-Free Copper (OFC)
-
Insulation: Polyethylene
-
Inner Jacket: Polyethylene
-
Shielding: DuoFoil® (100% coverage) + tinned copper braid (85%)
-
Outer Jacket: PVC
-
Nominal Impedance: 110 Ohms
-
Capacitance (Conductor to Conductor @ 1kHz): 12.8 pF/ft
-
Capacitance (Conductor to Shield @ 1kHz): 23 pF/ft
-
Velocity of Propagation: 66%
-
Nominal Delay: 1.6 ns/ft
-
DC Resistance (Conductor): 24 Ohms / 1000 ft
-
DC Resistance (Shield): 3.4 Ohms / 1000 ft
-
Attenuation: 0.6 dB / 100 ft @ 1 MHz
-
Max Recommended Current: 2.1 A per conductor @ 25°C
-
Operating Temperature: -30°C to +75°C
