Product Description

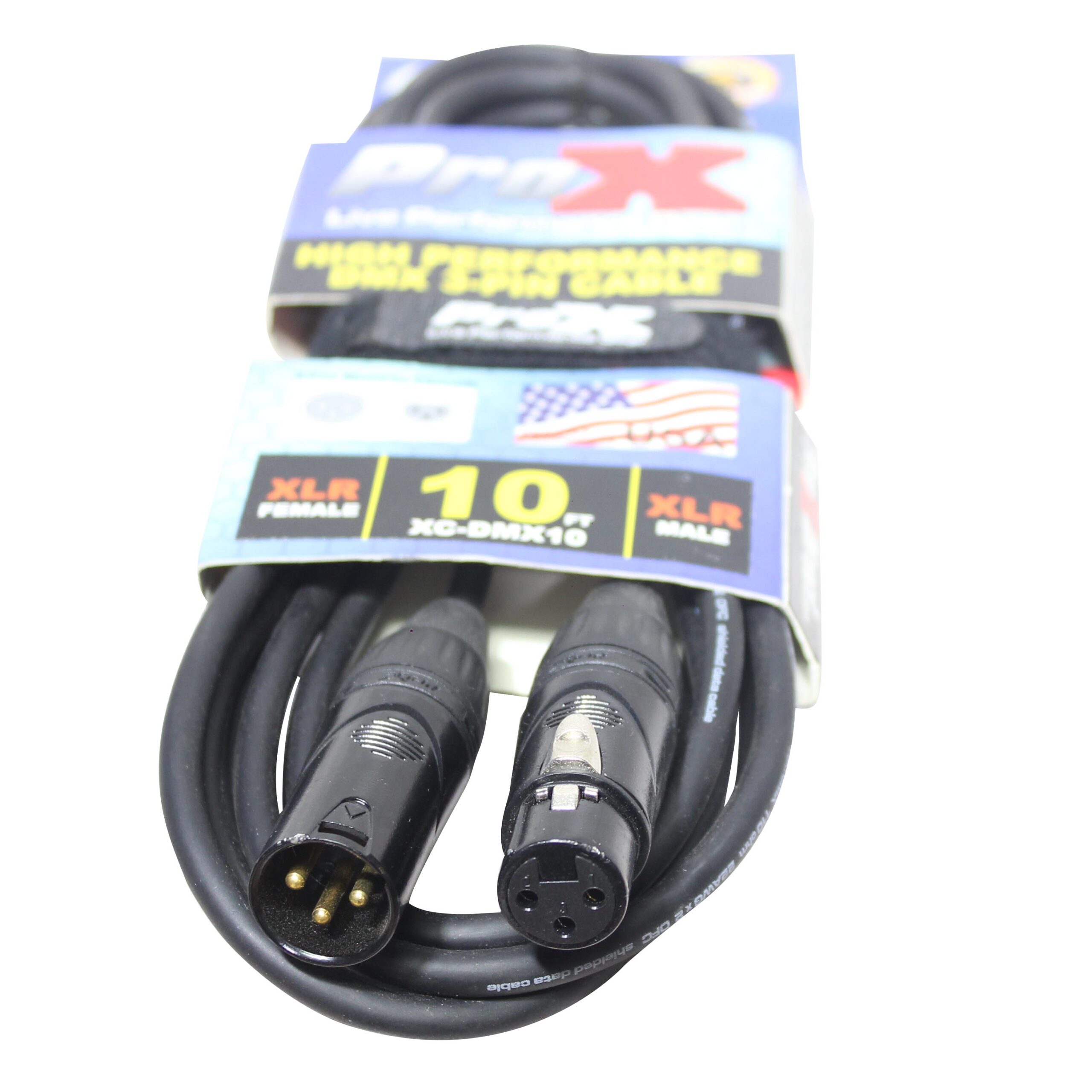

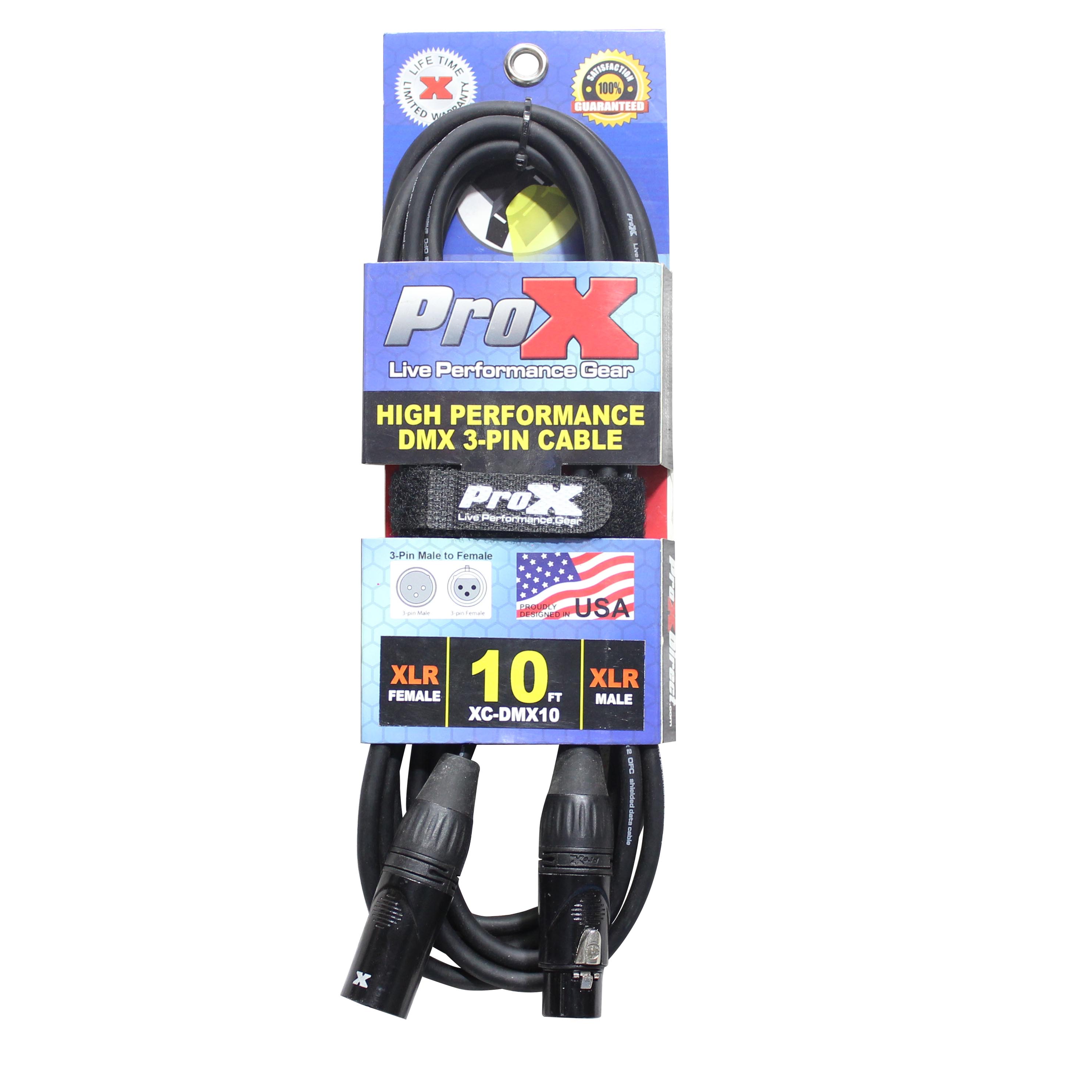

The ProX XC-DMX10 10 Ft. DMX XLR3-M to XLR3-F High Performance Cable is engineered for reliable DMX data transmission in professional lighting environments. Designed to connect devices with male and female 3-pin DMX ports, this cable ensures precise signal integrity for lighting controllers, fixtures, and DMX-enabled equipment.
Built with oxygen-free copper (OFC) conductors and ProX’s advanced DuoFoil® and braided copper shielding, the XC-DMX10 effectively blocks interference while preserving clean, accurate data flow. Its tour-grade construction withstands constant bending, twisting, and heavy use, making it ideal for stages, clubs, theaters, houses of worship, and mobile production rigs.
Unlike standard audio cables, this twisted-pair DMX cable is specifically tuned to DMX specifications, including a 110-ohm impedance, ensuring dependable communication and minimizing signal loss. Designed by professionals for professionals, ProX DMX cables deliver long-lasting performance you can trust show after show.
Note: DMX cables are not interchangeable with audio cables. Always use proper DMX-rated cables for lighting control applications.
Features
-
10 ft. DMX cable with XLR3-M to XLR3-F connectors
-
20 AWG x 2 Oxygen-Free Copper (OFC) conductors
-
DuoFoil® shielding with braided OFC copper for noise rejection
-
Gold-plated contacts for superior conductivity
-
ProX-branded all-metal XLR connectors
-
Extra flexible, tour-grade construction
-
Designed specifically for DMX data transmission
-
ProX Limited Lifetime Warranty
Specifications
-
Cable Type: Twisted Pair DMX Data Cable
-
Length: 10 ft (3.05 m)
-
Insulation: Polyethylene
-
Inner Jacket: Polyethylene
-
Shielding:
-
DuoFoil® (100% coverage)
-
Cotton + tinned copper braid (85% coverage)
-
-
Outer Jacket: PVC
-
Nominal Impedance: 110 Ohms
-
Capacitance (Conductor to Conductor @ 1 kHz): 12.8 pF/ft
-
Capacitance (Conductor to Shield @ 1 kHz): 23 pF/ft
-
Velocity of Propagation: 66%
-
Signal Delay: 1.6 ns/ft
-
Conductor DC Resistance @ 20°C: 24 Ohms / 1000 ft
-
Shield DC Resistance @ 20°C: 3.4 Ohms / 1000 ft
-
Attenuation: 0.6 dB / 100 ft @ 1 MHz
-
Maximum Recommended Current: 2.1 A per conductor @ 25°C
-
Operating Temperature: -30°C to +75°C
-
Connector Type: DMX XLR3-M to XLR3-F
