Product Description

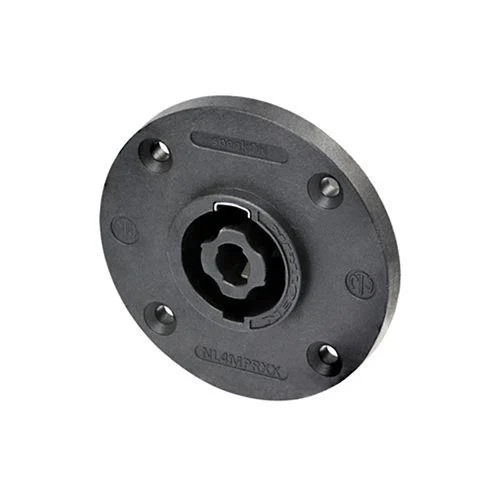

The SpeakON 4-Pole Chassis Connector is a professional-grade panel-mount receptacle designed for secure loudspeaker and amplifier interconnections. Featuring a large round G-size flange and a rugged locking mechanism, this connector provides reliable signal transmission in demanding professional audio environments.
Widely used in speaker cabinets, power amplifiers, line arrays, and professional sound reinforcement systems, SpeakON connectors are the industry standard for high-current loudspeaker connections. Their unique locking design ensures contacts engage only after the connector is fully locked, preventing accidental disconnections and improving operational safety.
This chassis connector is fully compliant with IEC 62368-1 requirements through component certification according to IEC 61984, making it suitable for use in modern professional audio equipment.
Features
- Professional 4-pole SpeakON chassis receptacle
- Large round G-size flange design
- Secure metal locking system
- Contacts engage only after full connector lock
- Robust construction for professional applications
- Easy termination with flat tab connections
- Ideal for speaker cabinet and amplifier installations
- Black finish for a professional appearance
- IEC 62368-1 compliant through IEC 61984 certification
Specifications
General
- Connector Type: SpeakON Chassis Connector
- Number of Poles: 4
- Mounting Style: Panel Mount
- Flange Type: Large Round G-Size Flange
- Color: Black
Mounting
- Mounting Holes: Countersunk Through Holes
- Terminal Type: 3/16" Flat Tabs
Compliance
- IEC 62368-1 Compliant
- IEC 61984 Certified Component
Applications
- Loudspeaker cabinets
- Professional power amplifiers
- PA systems
- Line array systems
- Stage monitor enclosures
- Audio equipment manufacturing
- Speaker repair and replacement
- Touring and installation audio systems
Benefits of SpeakON Connectors
- Secure twist-lock connection prevents accidental unplugging
- Designed for high-current speaker-level signals
- Fast and reliable installation
- Durable construction for touring environments
- Industry-standard compatibility with professional audio equipment
