Product Description

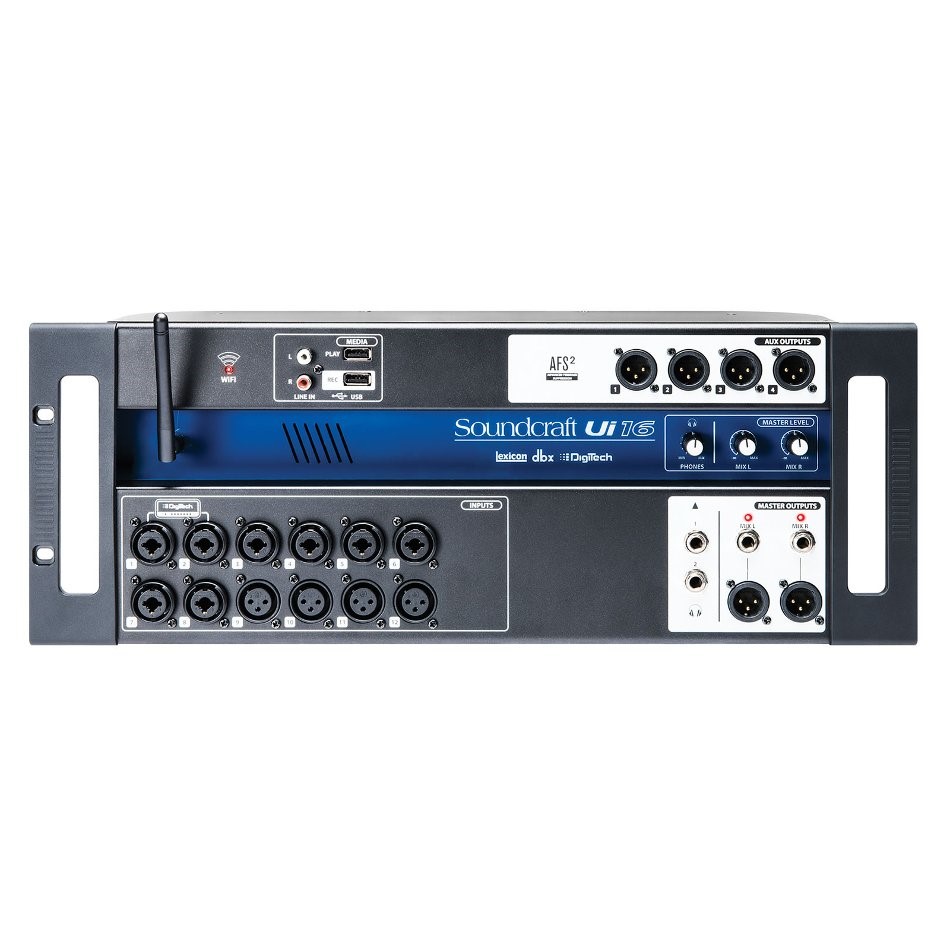

The Soundcraft Ui16 is a professional 16-channel digital mixer that combines powerful signal processing, wireless control, and flexible connectivity in a compact rackmount design. Built for live sound, houses of worship, bands, recording studios, corporate events, and mobile production, the Ui16 provides complete mixer control from virtually any device using a standard HTML5 web browser—no app installation required.

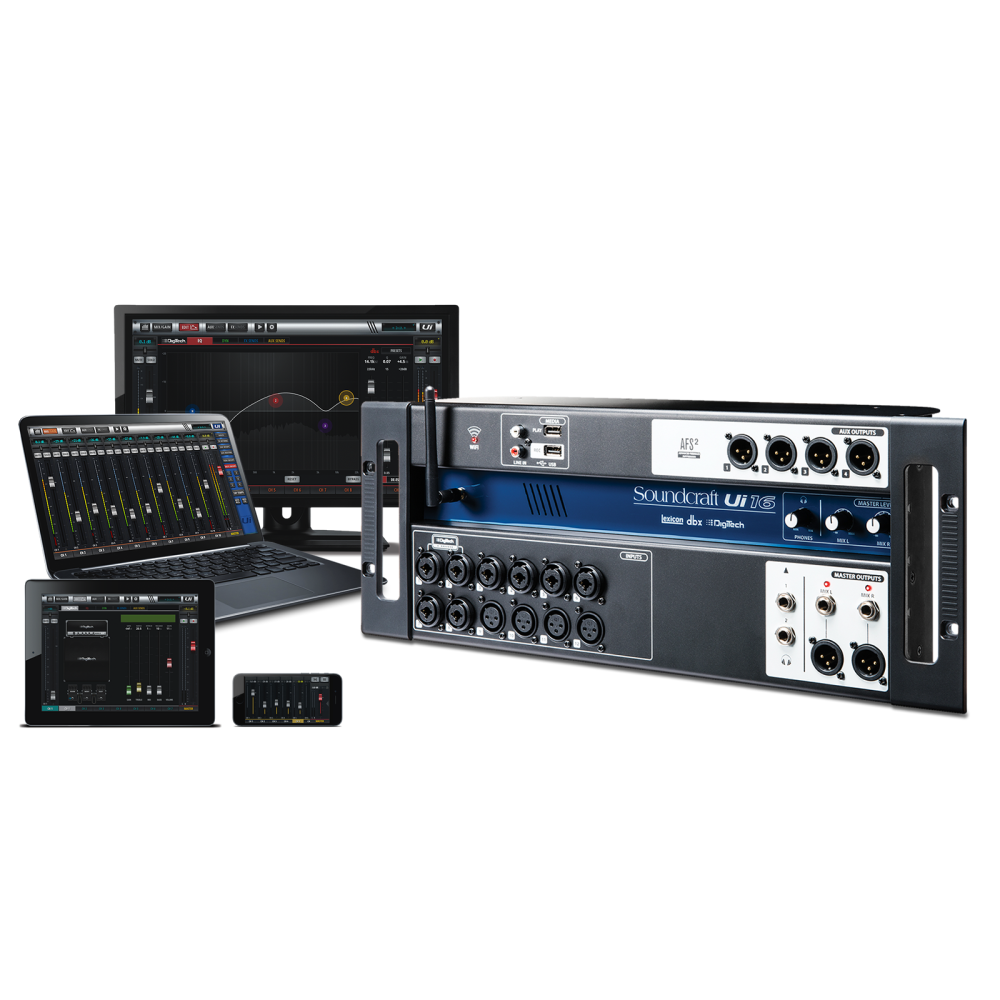

Featuring integrated Wi-Fi and Ethernet connectivity, the Ui16 allows simultaneous control from up to 10 devices running iOS, Android, Windows, macOS, or Linux. Engineers and performers can adjust levels, EQ, effects, monitor mixes, and routing from smartphones, tablets, or computers anywhere within the venue.
The Ui16 incorporates premium HARMAN technologies including Lexicon® effects, dbx® signal processing, and DigiTech® amp modeling. Every input channel includes a 4-band fully parametric EQ, compressor, de-esser, high-pass filter, and noise gate. The mixer also features 31-band graphic EQ, compression, and feedback suppression on outputs for professional-grade sound optimization.
With multiple microphone inputs, Hi-Z instrument channels, USB recording capability, and powerful wireless operation, the Soundcraft Ui16 delivers exceptional performance and flexibility for modern audio production environments.
Features
- 16-channel digital mixer with wireless control
- Built-in Wi-Fi for remote operation
- Control from smartphones, tablets, laptops, and desktop computers
- No dedicated app required
- Compatible with iOS, Android, Windows, macOS, and Linux
- Supports up to 10 simultaneous control devices
- Fully recallable microphone preamps and phantom power
- 4-band fully parametric EQ on every input
- Compressor, de-esser, noise gate, and high-pass filter on all input channels
- Lexicon® reverb, delay, and chorus effects
- dbx® signal processing
- DigiTech® amp and effects modeling
- 31-band graphic EQ on outputs
- Real-Time Frequency Analyzer (RTA)
- Show and snapshot recall functionality
- Security lockout and user access control
- Built-in USB media playback
- Direct USB recording capability
- Rackmountable 4U design
Applications
- Live Sound Reinforcement
- Houses of Worship
- Concert Venues
- Corporate Events
- Mobile Production
- Recording Studios
- Podcasting
- Streaming
- Band Rehearsals
- Educational Facilities
- Theaters
- Event Production
Inputs
- 8 × XLR/TRS Combo Mic/Line Inputs
- 4 × XLR Microphone Inputs
- 2 × Hi-Z Instrument Inputs
- 1 × Stereo RCA Line Input
- USB Media Playback Input
Outputs
- 2 × Main XLR Outputs
- 2 × Main 1/4" TRS Outputs
- 4 × XLR Auxiliary Outputs
- 2 × 1/4" Headphone Outputs

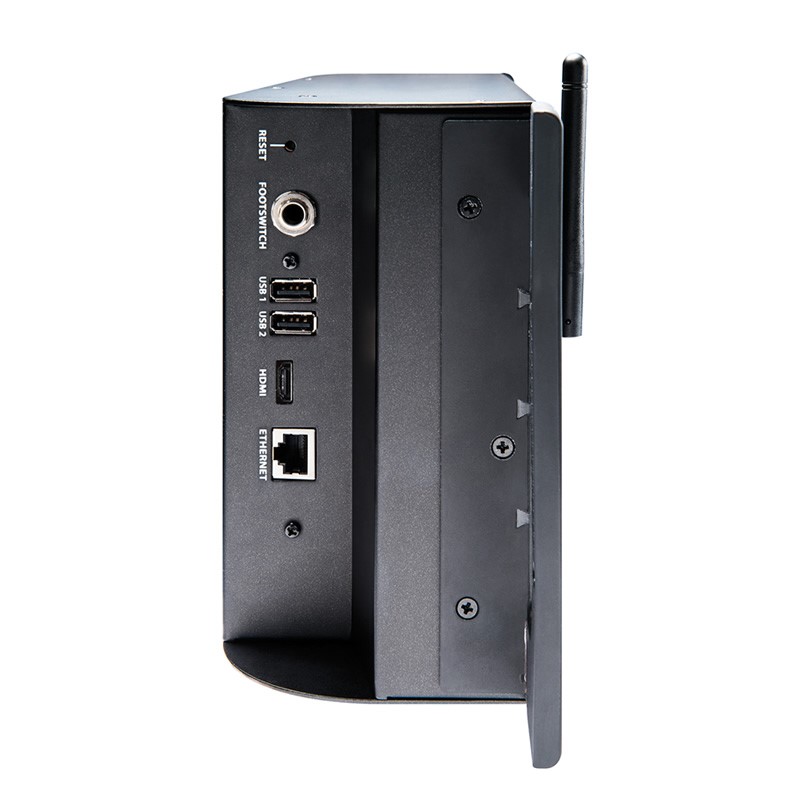

- Ethernet Network Port
Signal Processing
- Lexicon Reverb
- Lexicon Delay
- Lexicon Chorus
- dbx Compression
- dbx De-Esser
- dbx Noise Gate
- DigiTech Amp Modeling
- DigiTech Stompbox Effects
- Real-Time Frequency Analyzer (RTA)
- High-Pass Filters
- 31-Band Graphic EQ
Specifications
General
- Manufacturer: Soundcraft
- Model: Ui16
- Mixer Type: Digital Mixer
- Channels: 16
Audio Processing
- Input EQ: 4-Band Fully Parametric EQ
- Output EQ: 31-Band Graphic EQ
- Compression: Yes
- De-Esser: Yes
- Noise Gate: Yes
- High-Pass Filter: Yes
- Effects Processor: Lexicon
- Amp Modeling: DigiTech
Connectivity
- Built-In Wi-Fi: Yes
- Ethernet Control: Yes
- Simultaneous Control Devices: Up to 10
- Platform Compatibility:
- iOS
- Android
- Windows
- macOS
- Linux
USB Functions
- USB Media Playback
- Direct USB Recording
- Compatible Formats:
- MP3
- WAV
- AIFF
Physical Specifications
- Rackmount Size: 4U
- Width: 19"
- Height: 7"
- Depth: 4.3"
Metric Dimensions
- Width: 482.6 mm
- Height: 177.8 mm
- Depth: 109.2 mm
Weight
- 7.9 lbs
- 3.58 kg
