Product Description

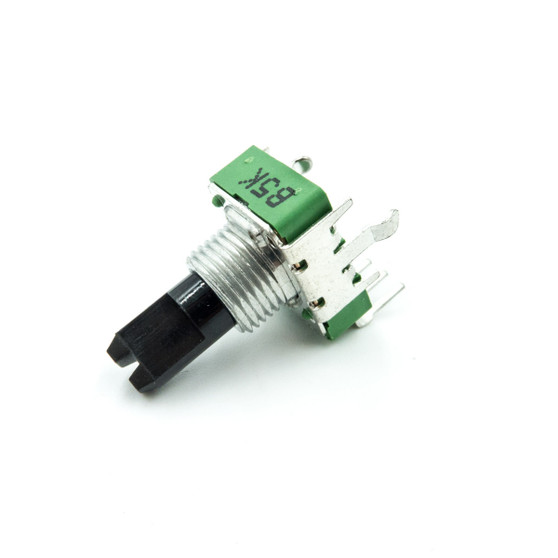

The QSC PT-250010-00 Gain Potentiometer is a replacement 5KΩ detented gain control designed for compatible QSC powered loudspeakers, including the K8.2, K10.2, K12.2, and CP12.
This component is designed to replace the original gain potentiometer when the speaker's gain control becomes worn, damaged, intermittent, or otherwise fails to provide proper adjustment. The potentiometer features a 0.75-turn rotation with 21 detents, providing positive tactile positioning during adjustment.
The PT-250010-00 features a right-angle mounting configuration, D-shaped shaft, and 15 mm shaft length, making it suitable for the compatible QSC speaker control assemblies for which this part is specified.
This is a component-level replacement part intended for repair of compatible QSC professional audio equipment. Installation requires access to the speaker's internal electronics and should be performed by a qualified technician.
Features
- Genuine QSC replacement part number PT-250010-00
- 5KΩ resistance
- Detented gain potentiometer
- 21 detents
- 0.75-turn rotation
- Right-angle mounting configuration
- D-shaped shaft
- 15 mm shaft length
- 0.05W power rating
- 20% resistance tolerance
- Designed for compatible QSC powered loudspeakers
Applications
- QSC K8.2 Powered Loudspeaker Repair
- QSC K10.2 Powered Loudspeaker Repair
- QSC K12.2 Powered Loudspeaker Repair
- QSC CP12 Powered Loudspeaker Repair
- Gain Control Replacement
- Speaker Control Panel Repair
- Professional Audio Equipment Service
- Component-Level Electronics Repair
Specifications
General
- Manufacturer: QSC
- Part Number: PT-250010-00
- Component Type: Gain Potentiometer
- Resistance: 5.0 kΩ
- Tolerance: ±20%
- Power Rating: 0.05W
Mechanical
- Rotation: 0.75 Turn
- Detents: 21
- Mounting: Right Angle
- Shaft Type: D-Shaped
- Shaft Length: 15 mm
Compatibility
- QSC K8.2
- QSC K10.2
- QSC K12.2
- QSC CP12
Compatibility Notes
The PT-250010-00 is specified for use with the QSC K8.2, K10.2, K12.2, and CP12 powered loudspeakers.
Before installation, compare the part number and physical configuration of the existing potentiometer. Components can vary between models or production revisions, so verifying the original part number is recommended.
Professional installation is recommended because replacement requires access to the internal speaker electronics.
