Product Description

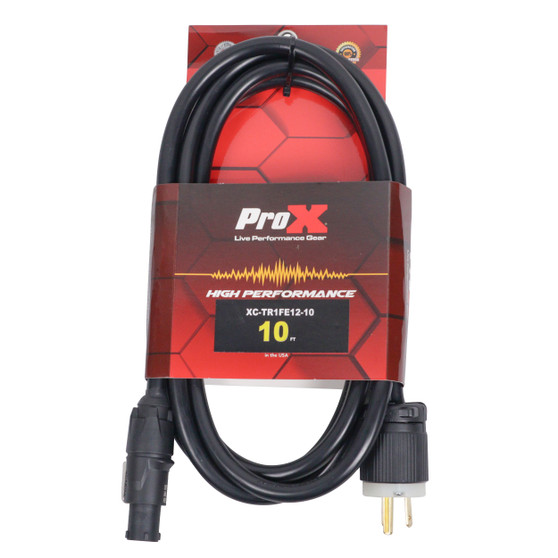

The ProX XC-TR1FE12-10FT is a rugged 10-foot power cable designed to connect standard Edison (NEMA 5-15P) outlets to devices with PowerCON-compatible inputs. Built for professional audio, lighting, and stage applications, this cable delivers a secure and reliable power connection in demanding environments.
Constructed with 12 AWG pure copper conductors, this cable ensures efficient current flow for high-power equipment. The locking PowerCON-style connector features a twist-lock mechanism that prevents accidental disconnection and enhances operational safety. Designed with a connector that supports connection and disconnection under load (CBC), it provides added flexibility for professional setups.
With an IP65 rating for dust and water resistance and UL/cUL-tested components, the XC-TR1FE12-10FT is built to withstand rigorous use both indoors and outdoors.
Features
- 10 ft Edison (NEMA 5-15P) to PowerCON-compatible cable
- 12 AWG pure copper conductors for efficient power transfer
- Locking 20A connector for secure and stable connection
- Twist-lock latching system prevents accidental unplugging
- Connector with breaking capacity (CBC) for safe live connection/disconnection
- IP65-rated for dust and water resistance
- UL and cUL tested components
- Durable construction for professional applications
- Ideal for audio equipment, lighting, and stage power distribution
- ProX limited lifetime warranty
Specifications
- Cable Length: 10 ft (3 m)
- Wire Gauge: 12 AWG
- Connector A: NEMA 5-15P (Edison male)
- Connector B: PowerCON-compatible locking connector (male)
- Voltage Rating: 120VAC
- Current Rating: Up to 20A (connector rated)
- Protection Rating: IP65 (dust/water resistant)
- Compliance: UL & cUL tested components
