Product Description

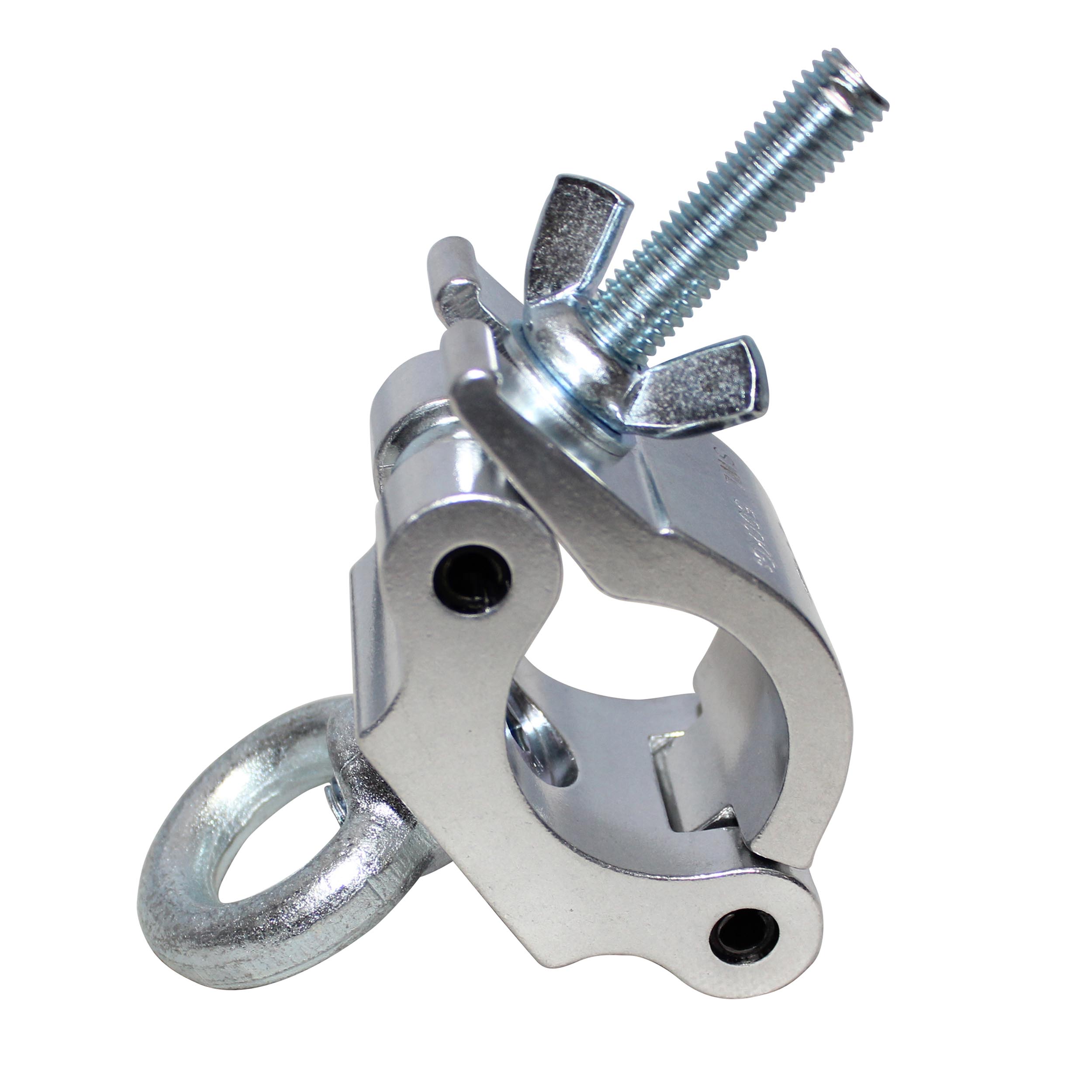

Secure compatible stage lighting fixtures and production equipment to truss systems with the ProX T-C8 Pro Heavy-Duty Truss Clamp with Eyebolt. Designed for tubing measuring approximately 1.9 to 2 inches (48–51 mm) in diameter, this wrap-around clamp is suitable for compatible 2-inch truss configurations, including F34, F32, F31, and bolted truss systems.
The T-C8 features a heavy-duty construction designed to provide a secure mounting point for compatible lighting fixtures and other production equipment. Its integrated eyebolt offers an additional attachment point for applications designed around this type of hardware.
Ideal for DJs, mobile entertainers, lighting technicians, event production companies, and stage crews, the ProX T-C8 helps simplify equipment rigging for concerts, touring productions, clubs, and temporary event setups.
The clamp is listed as TUV approved and has a manufacturer-provided maximum load rating. Always confirm that the clamp, truss, fixture, and attachment method are suitable for the intended load and installation. Use appropriate secondary safety cables or chains on overhead equipment, and follow the manufacturer's rigging instructions and applicable safety requirements.
Features
-
Heavy-duty ProX truss clamp with integrated eyebolt
-
Wrap-around design for compatible truss tubing
-
Fits tubing approximately 1.9–2.008 inches (48–51 mm) in diameter
-
Designed for compatible 2-inch truss configurations
-
Suitable for compatible F34, F32, F31, and bolted truss systems
-
Provides a mounting point for compatible stage lighting and production equipment
-
TUV approval listed in supplied specifications
-
Compact, portable design for event production and touring use
-
Recommended for use with appropriate secondary safety equipment
Applications
-
Stage lighting fixture mounting
-
DJ lighting and mobile entertainment setups
-
Concert and festival production
-
Truss-mounted effects and compatible production equipment
-
Clubs, theaters, and performance venues
-
Temporary event structures
-
Touring and rental company rigging inventories
Specifications
General
-
Brand: ProX
-
Model: T-C8
-
Product Type: Heavy-Duty Truss Clamp with Eyebolt
-
Clamp Style: Wrap-around tube clamp
-
Approval: TUV approval listed by the supplier
-
UPC: 019372406426
Compatibility
-
Compatible Tube Diameter: 1.9–2.008 inches (48–51 mm)
-
Nominal Tube Size: 2 inches (50 mm)
-
Truss Compatibility: Compatible F34, F32, F31, and bolted truss configurations
-
Intended Use: Mounting compatible lighting fixtures and production equipment
Dimensions and Weight
-
Eyebolt Inside Diameter: 1.25 inches (31.8 mm)
-
Eyebolt Outside Diameter: 2.25 inches (57.2 mm)
-
Product Weight: Approximately 1 lb (0.45 kg)
Load Rating
-
Maximum Load Capacity: 745 lb (338 kg), as specified in the detailed supplied specifications
