Product Description

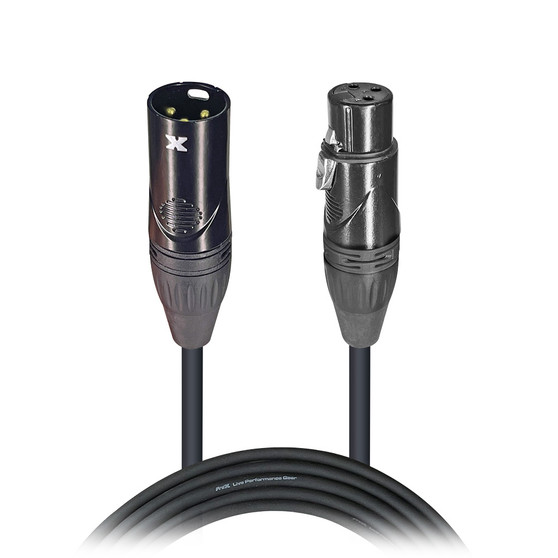

The ProX XC-DMX05 5 Ft. DMX XLR3-M to XLR3-F High Performance Cable is engineered for dependable DMX data transmission in professional lighting applications. Designed to connect devices with male and female 3-pin DMX ports, this cable ensures clean, accurate signal flow between lighting controllers, fixtures, and DMX-enabled equipment.
Built with oxygen-free copper (OFC) conductors and advanced DuoFoil® plus braided copper shielding, the XC-DMX05 protects data from interference while maintaining precise signal integrity. Its tour-grade construction is designed to withstand repeated bending, twisting, and demanding road use, making it ideal for stages, clubs, theaters, houses of worship, and mobile production setups.
Unlike standard audio cables, this twisted-pair DMX cable is specifically engineered to meet DMX data specifications, including a 110-ohm characteristic impedance, ensuring reliable communication and minimizing signal loss. Designed by professionals for professionals, ProX DMX cables deliver long-lasting performance you can count on show after show.
Note: DMX cables are not interchangeable with audio cables. Always use proper DMX-rated cables for lighting control applications.
Features
-
5 ft. DMX data cable with XLR3-M to XLR3-F connectors
-
20 AWG x 2 oxygen-free copper (OFC) conductors
-
DuoFoil® shielding with braided OFC copper for noise rejection
-
Gold-plated contacts for superior conductivity
-
ProX-branded all-metal XLR connectors
-
Extra-durable, flexible tour-grade construction
-
Designed specifically for DMX data transmission
-
ProX Limited Lifetime Warranty
Specifications
-
Cable Type: Twisted Pair DMX Data Cable
-
Length: 5 ft (1.52 m)
-
Insulation: Polyethylene
-
Inner Jacket: Polyethylene
-
Shielding:
-
DuoFoil® (100% coverage)
-
Cotton + tinned copper braid (85% coverage)
-
-
Outer Jacket: PVC
-
Nominal Characteristic Impedance: 110 Ohms
-
Capacitance (Conductor to Conductor @ 1 kHz): 12.8 pF/ft
-
Capacitance (Conductor to Shield @ 1 kHz): 23 pF/ft
-
Velocity of Propagation: 66%
-
Nominal Delay: 1.6 ns/ft
-
Conductor DC Resistance @ 20°C: 24 Ohms / 1000 ft
-
Shield DC Resistance @ 20°C: 3.4 Ohms / 1000 ft
-
Attenuation: 0.6 dB / 100 ft @ 1 MHz
-
Maximum Recommended Current: 2.1 A per conductor @ 25°C
-
Operating Temperature Range: -30°C to +75°C
-
Connector Type: DMX XLR3-M to XLR3-F
-
Master Carton: 10 cables
