Product Description

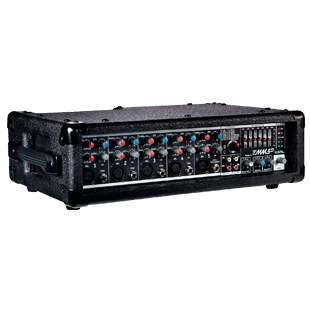

The Yorkville MicroMix MM5D is a compact and versatile powered mixer designed for portable PA systems, rehearsal spaces, schools, houses of worship, presentations, and installed sound applications. Delivering up to 2 x 90 watts at 4 ohms, the MM5D combines flexible input options, onboard digital effects, and reliable amplification in a convenient all-in-one solution.
Featuring five input channels with balanced XLR microphone inputs and 1/4-inch line inputs, each channel includes independent level, EQ, and effects send controls for easy sound shaping. A dedicated CD/Tape input with level control allows playback of background music or prerecorded audio, while separate record outputs make capturing performances simple.
The built-in digital effects processor offers 16 effects including reverb, echo, chorus, and flange, helping enhance vocals and instruments without requiring external processors. A master 7-band graphic EQ provides additional control over the overall mix, while both Speakon and 1/4-inch speaker outputs ensure compatibility with a wide range of speaker systems.
With rugged construction, thermal protection, clip limiting, and straightforward operation, the Yorkville MM5D is an excellent choice for users needing a compact powered mixer with professional features and dependable performance.
Features
- Compact 5-channel powered mixer
- Delivers up to 2 x 90 watts at 4 ohms
- Five input channels with XLR and 1/4-inch inputs
- Individual channel level, EQ, and effects controls
- Built-in digital effects processor
- 16 onboard effects including reverb, echo, chorus, and flange
- Stereo 7-band master graphic EQ
- Dedicated CD/Tape input with level control
- Separate stereo record outputs with level control
- Speakon and 1/4-inch speaker output connections
- Clip limiter and thermal shutdown protection
- Ideal for live sound, rehearsals, installations, and announcements
Specifications
General
- Model: MM5D
- Manufacturer: Yorkville Sound
- Mixer Type: Powered Box Mixer
- Channels: 5
Inputs
- Microphone Inputs: 5 Balanced XLR
- Line Inputs: 5 x 1/4"
- Auxiliary Input: Stereo RCA CD/Tape Input
Channel Processing
- EQ: 2-Band Shelving EQ per Channel
- Digital Effects: 16 Presets
- Reverb
- Echo
- Chorus
- Flange
Outputs
- Speaker Outputs:
- 1 x Speakon Output per Channel
- 1 x 1/4" Speaker Output per Channel
- Record Outputs:
- Stereo RCA with Level Control
Amplifier Section
- Power Output @ 8 Ohms:
- 2 x 60 Watts
- Power Output @ 4 Ohms:
- 2 x 90 Watts
- THD:
- Less than 0.1%
Performance
- Frequency Response:
- 40 Hz – 20 kHz
- Maximum Gain (Mic Input to Line Out):
- 84 dB
- Maximum Gain (Line Input to Line Out):
- 70 dB
- Crosstalk:
- Less than -60 dB
Protection
- Clip Limiter
- Thermal Shutdown Protection
Cooling
- Passive Heatsink
- Internal Fan
Power Requirements
- 120 VAC:
- 1.0 A
- 230 VAC:
- 0.5 A
Dimensions
- 9" D × 17.75" W × 6" H
- 22.85 × 45 × 15.25 cm
Weight
- 19.2 lbs
- 8.7 kg
