Product Description

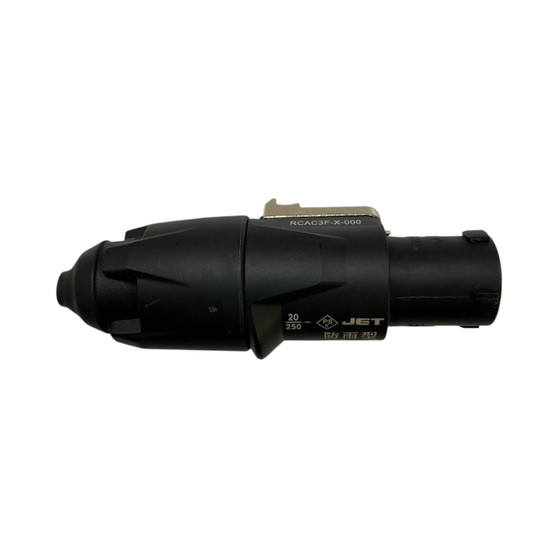

The RCAC3F-X-000 Lockable Female Cable Power Connector is a professional-grade AC power connector designed for secure and reliable power distribution in audio, video, lighting, and stage production environments. Featuring a robust twist-lock retention system, this connector provides a dependable connection that prevents accidental disconnection during operation, making it ideal for touring, live events, installations, and professional AV applications.
Constructed from durable polyamide materials and equipped with silver-plated copper alloy contacts, the RCAC3F-X-000 delivers excellent electrical performance, long service life, and dependable operation in demanding environments. Its screw-terminal wiring design supports conductors up to 12 AWG, allowing for secure field assembly and maintenance.
With a mating life exceeding 5,000 connection cycles, this connector is built to withstand the rigors of professional use while maintaining consistent electrical performance.
Features
- Lockable female AC power connector
- Secure twist-lock retention system
- Professional-grade cable mount design
- Silver-plated contacts for excellent conductivity
- Durable polyamide housing construction
- Screw-terminal wire connections
- Supports cable diameters from 6 mm to 12 mm
- Designed for demanding touring and installation applications
- Long-life design rated for over 5,000 mating cycles
- Suitable for audio, video, lighting, and power distribution systems
Applications
- Professional Audio Systems
- Stage Lighting Equipment
- LED Video Walls
- Power Distribution Units
- Touring Productions
- Broadcast Systems
- Theatrical Installations
- Houses of Worship
- AV Integration Projects
- Event Production Systems
Electrical Specifications
| Specification | Value |
|---|---|
| Contact Configuration | 2 + PE (Protective Earth) |
| European Rating | 16A, 250V AC (EN 60320-1) |
| USA Rating | 20A, 250V AC (UL 60320-1) |
| Dielectric Strength | 4 kV DC / 2.8 kV AC |
| Contact Resistance | ≤ 2 mΩ |
| Insulation Resistance (After Damp Heat Test) | > 0.1 GΩ |
Mechanical Specifications
| Specification | Value |
|---|---|
| Retention Method | Twist Lock |
| Mating Life | > 5,000 Cycles |
| Cable Outside Diameter | 6 – 12 mm |
| Wiring Method | Screw Terminals |
| Wire Size Metric | 1.0 – 2.5 mm² |
| Wire Size Imperial | Up to 12 AWG |
Material Specifications
| Component | Material |
|---|---|
| Shell | Polyamide |
| Insert | Polyamide |
| Contacts | Copper Alloy |
| Contact Plating | Silver (Ag) |
| Strain Relief | PBT |
Environmental Specifications
| Specification | Value |
|---|---|
| Operating Temperature | -30°C to +80°C |
| Operating Temperature | -22°F to +176°F |
| Flammability Rating | UL94 V-0 |
Benefits
- Prevents accidental power disconnections
- Provides reliable power delivery for critical equipment
- Durable enough for touring and rental environments
- Easy field termination with screw-terminal design
- Compatible with a wide variety of professional power applications
- Long service life reduces maintenance and replacement costs
