Product Description

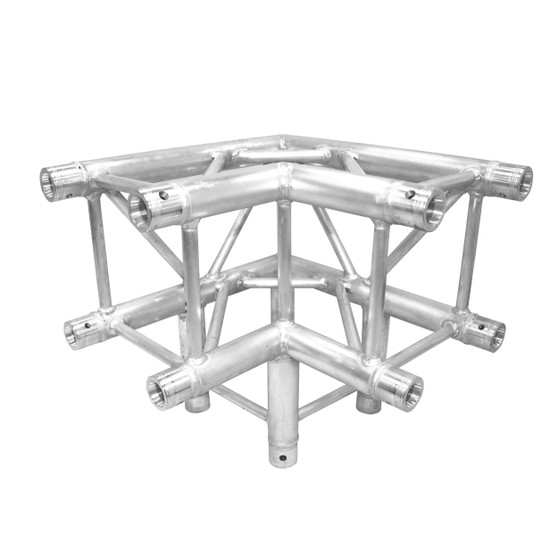

The ProX XT-SQ164-3W90 F34 Square Truss Junction Corner Block is a professional 3-way, 90-degree junction designed for building custom square truss structures, displays, lighting rigs, DJ setups, stages, exhibition booths, and other event production configurations.
Designed for compatibility with F34 and F32 truss segments, this corner block provides three connection points arranged at a 90-degree angle, allowing you to create corners and custom structural layouts with greater flexibility. Its robust construction and certified welded assembly provide the durability and stability required for professional entertainment and event production environments.
The XT-SQ164-3W90 is manufactured using quality materials and is designed to work with most compatible truss brands. The reinforced construction helps create secure connections between truss sections, while the included connecting hardware simplifies installation.
Whether you're building a mobile DJ truss system, lighting structure, exhibition display, stage configuration, or custom event installation, the ProX XT-SQ164-3W90 provides a practical solution for creating professional 90-degree truss junctions.
Features
- 3-way, 90-degree square truss junction corner block
- Designed for F34 and F32 truss segments
- Ideal for creating custom truss configurations and displays
- Professional-grade construction
- Crafted by certified welders
- Durable design for indoor and outdoor applications
- Compatible with most compatible truss brands
- Provides three truss connection points
- Designed for professional stage, lighting, DJ, and event applications
- Connecting hardware included
- Part of the ProX XT-SQ Series square truss system
Applications
- Stage Truss Systems
- DJ Truss Setups
- Concert Lighting Rigs
- Mobile DJ Productions
- Event Production
- Trade Show Displays
- Exhibition Booths
- Corporate Events
- Theater Productions
- Entertainment Venues
- Lighting Installations
- Custom Truss Structures
- Production and Rental Companies
Specifications
General
- Brand: ProX
- Model: XT-SQ164-3W90
- Series: XT-SQ Series
- Product Type: Square Truss Junction Corner Block
- Junction Type: 3-Way, 90-Degree
- Compatible Truss: F34, F32
- Application: Truss Construction and Rigging
Dimensions
- Height: 11.42 inches (290 mm)
- Width: 11.42 inches (290 mm)
- Main Tube Diameter: 2 inches (50 mm)
- Main Tube Wall Thickness: 0.08 inch (2 mm)
- Brace Diameter: 0.75 inch (20 mm)
Construction
- Construction: Professional Welded Truss Component
- Welding: Certified Welder Construction
- Connection Points: 3
- Connection Angle: 90 Degrees
- Compatibility: Most Compatible Truss Brands
