Product Description

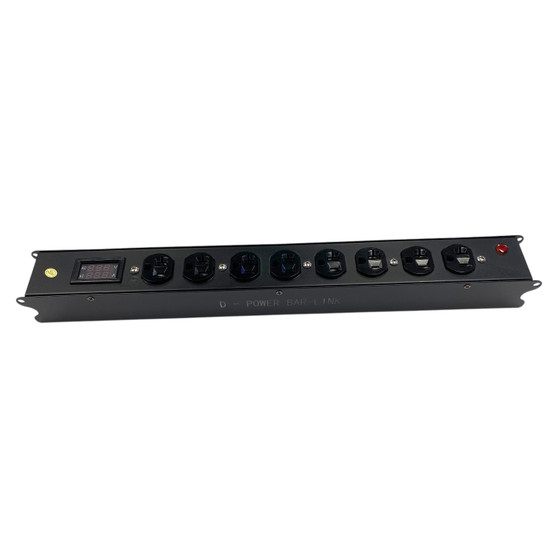

The AUVI PRO Display Power Bar is a versatile AC power distribution solution designed for stage lighting, audio systems, mobile DJs, production companies, and event professionals. Featuring a durable metal enclosure, integrated monitoring displays, and multiple Edison outlets, this power distribution box provides a convenient way to distribute AC power throughout your setup.
Equipped with eight grounded Edison outlets, a PowerCon Blue power input connector, a power indicator light, and built-in voltage and current monitoring displays, the Display Power Bar offers a practical solution for powering lighting fixtures, powered speakers, video equipment, and other professional AV devices.
The integrated digital voltmeter and amperage display allow users to monitor incoming power conditions and electrical load in real time, helping maintain system awareness during events and installations.
This unit is supplied as an unwired DIY assembly, making it ideal for technicians, installers, and users who prefer to customize the internal wiring to meet specific project requirements.
Features
- Professional AC power distribution box
- Ideal for lighting, audio, stage, and production applications
- Eight grounded Edison U-Ground outlets
- PowerCon Blue power input connector included
- Built-in voltage display meter
- Built-in amperage display meter
- Power status indicator light
- Compact rack-friendly design
- Durable metal enclosure
- DIY unwired configuration for custom installations
- Suitable for mobile and permanent installations
Applications
- Stage Lighting Systems
- DJ Setups
- Powered Speaker Systems
- Event Production
- Live Sound Applications
- Production Companies
- Trade Shows
- Houses of Worship
- Theatrical Productions
- Custom Power Distribution Projects
Specifications
General
- Product Type: AC Power Distribution Bar
- Brand: AUVI PRO
- Application: Stage, Audio, Lighting, and Event Power Distribution
Electrical
- Voltage Rating: 125V AC
- Current Capacity: 20A
- Input Connector: PowerCon Blue (Power In)
- Outlet Type: Edison U-Ground Receptacles
- Number of Outlets: 8
Integrated Displays
- Digital Voltmeter Display
- Digital Amperage Display
- Power Indicator Light
Construction
- Metal Enclosure
- Compact Portable Design
- DIY Unwired Configuration
Dimensions
- Length: 19 in (48.3 cm)
- Width: 2 in (5.1 cm)
- Height: 3 in (7.6 cm)
Weight
- 2.6 lbs
- 1.18 kg
Included
- AUVI PRO Display Power Bar Chassis
- 1 x PowerCon Blue Power Input Connector
Important Note
- This unit is supplied unwired.
- Internal wiring is not included.
- Designed for qualified users and DIY installers who wish to customize wiring based on their application requirements.
