Product Description

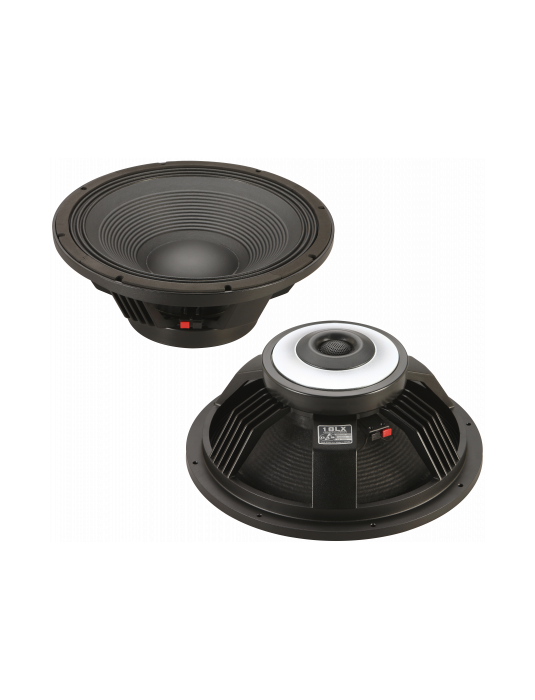

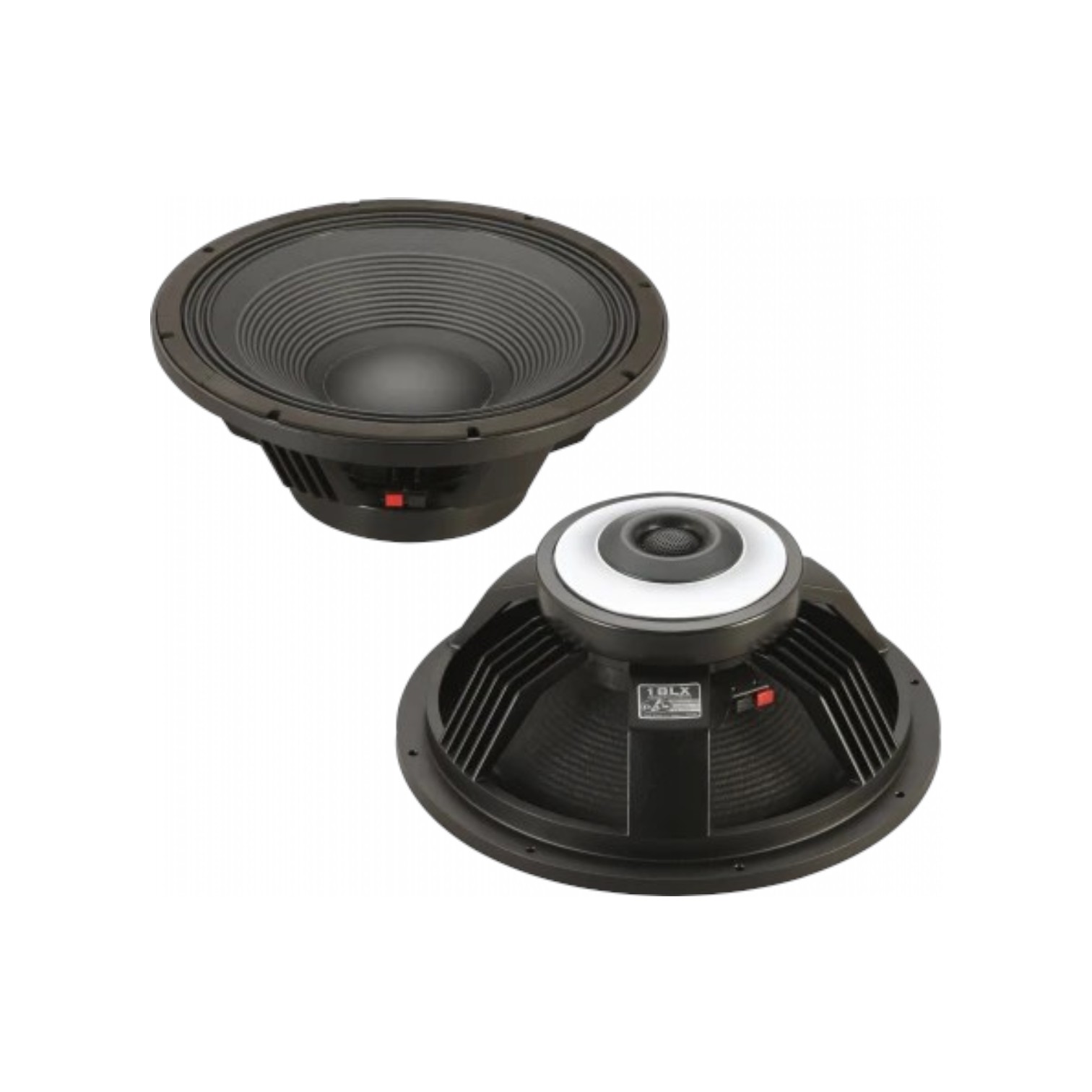

The DAS Audio 18LX 18-Inch LF Replacement Speaker is a professional low-frequency woofer designed to deliver powerful, controlled bass for demanding sound reinforcement and subwoofer applications. Featuring a large 18-inch diameter, 4-inch voice coil, ferrite magnet assembly, and 1000W AES power handling, the 18LX is built for high-output professional audio systems.
With an 8-ohm nominal impedance and 96.5 dB sensitivity, the DAS 18LX provides strong acoustic output and dependable low-frequency performance. Its robust construction makes it an excellent replacement option for compatible DAS Audio subwoofer systems and other applications requiring a high-power 18-inch LF driver.
The DAS Audio 18LX is compatible with systems including the DAS Event 218A Series, Aero 182, Aero 182A 2K, Aero 218 Sub, and Aero 218A 2K Sub, making it a practical solution for repairing or restoring professional subwoofer cabinets.
Whether you're servicing a touring PA system, rental inventory, installed sound system, or professional subwoofer, the DAS Audio 18LX provides the power handling and reliability required for demanding low-frequency applications.
Features
- Genuine DAS Audio 18LX low-frequency replacement speaker
- 18-inch (457 mm) nominal diameter
- 8-ohm nominal impedance
- 1000W AES power handling
- Up to 4000W peak power handling
- 4-inch (102 mm) voice coil diameter
- Ferrite magnet assembly
- 96.5 dB SPL sensitivity at 1W/1m
- Designed for high-output professional audio applications
- Suitable for subwoofer and low-frequency systems
- Compatible with multiple DAS Audio professional loudspeaker systems
- Ideal for speaker replacement, repair, and refurbishment
Applications
- Professional Subwoofer Replacement
- Low-Frequency Speaker Systems
- Live Sound Reinforcement
- Touring PA Systems
- Rental Sound Systems
- Concert Production
- Installed Sound
- Large Venue Audio
- Professional Speaker Repair
- Subwoofer Restoration
- DAS Audio Loudspeaker Maintenance
Compatibility
The DAS Audio 18LX is specified for use with compatible DAS Audio systems including:
- DAS Audio Event 218A Series
- DAS Audio Aero 182
- DAS Audio Aero 182A 2K
- DAS Audio Aero 218 Sub
- DAS Audio Aero 218A 2K Sub
- Other compatible 18-inch subwoofer systems
Important: Always verify the specifications and physical dimensions of your existing driver before ordering to ensure compatibility with your specific cabinet.
Specifications
General
- Brand: DAS Audio
- Model: 18LX
- Product Type: Low-Frequency Speaker / Woofer
- Driver Diameter: 18" (457 mm)
- Nominal Impedance: 8 Ohms
- Magnet Type: Ferrite
- Voice Coil Diameter: 4" (102 mm)
Power & Performance
- AES Power Handling: 1000 W
- Peak Power Handling: 4000 W
- Sensitivity: 96.5 dB SPL @ 1W/1m
- Frequency Range: Low-Frequency / Subwoofer Application
Physical
- Net Weight: 12.1 kg (26.6 lb)
- Shipping Weight: 13.0 kg (28.7 lb)
- Carton Dimensions: 240 × 500 × 500 mm
- Carton Dimensions: 9.5 × 19.7 × 19.7 in
