Product Description

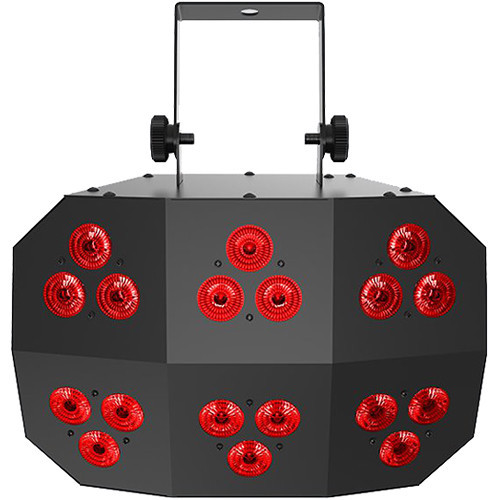

The CHAUVET DJ Wash FX 2 is a versatile quad-color RGB+UV LED lighting fixture designed for mobile entertainers, DJs, event productions, clubs, parties, and other applications where colorful wash lighting and dynamic effects are needed. With 18 quad-color RGB+UV LEDs, the Wash FX 2 combines vibrant color mixing with powerful ultraviolet output for eye-catching blacklight effects.
The Wash FX 2 can function as a traditional wash light or as an exciting eye-candy effect, featuring six independent chasing zones that can create dynamic patterns and movement across the fixture. The integrated RGB+UV LED technology provides a broad range of colors while the UV output adds a psychedelic blacklight effect that works especially well with fluorescent materials.
Flexible control options make the Wash FX 2 suitable for both simple and advanced lighting setups. The fixture supports standalone operation, DMX, infrared control, and master/slave operation, with DMX modes ranging from 3 to 28 channels for different levels of control. It is also compatible with the optional CHAUVET DJ IRC-6 wireless remote for convenient wireless triggering.
The Wash FX 2 supports power linking, allowing multiple fixtures to share power and helping reduce cable clutter during setup. Up to 6 units can be power linked at 120 V or 12 units at 230 V. The fixture also fits the CHS-40 VIP Gear Bag, making it a practical choice for mobile DJs and entertainers who need compact, transport-friendly lighting equipment.
With a 40° beam angle, 64° field angle, 0–25 Hz strobe range, and 1,795 lux illuminance at 2 meters, the Wash FX 2 delivers both broad wash coverage and dynamic visual effects in a compact fixture.
Features
- 18 quad-color RGB+UV LEDs
- 6 W LED technology with 50,000-hour rated lifespan
- Functions as both a wash light and eye-candy effect
- Six independent chasing zones
- Powerful UV output for psychedelic blacklight effects
- Brilliant RGB+UV color mixing
- 40° beam angle
- 64° field angle
- 0–25 Hz strobe rate
- 1,795 lux illuminance at 2 meters
- DMX control with 3, 4, 8, or 28-channel modes
- 3-pin XLR DMX connectors
- Standalone operation
- Master/slave operation
- Infrared control
- Compatible with optional IRC-6 wireless remote
- Power linking for simplified installation
- Up to 6 units power linked at 120 V
- Up to 12 units power linked at 230 V
- 100–240 VAC, 50/60 Hz auto-ranging power supply
- Compact design for mobile entertainment applications
- Compatible with CHS-40 VIP Gear Bag
- Includes power cable and mounting hardware/bracket
Applications
- Mobile DJ Lighting
- Nightclubs and Bars
- Weddings and Private Events
- Concerts and Live Performances
- Parties and Celebrations
- School and College Events
- Corporate Events
- Clubs and Entertainment Venues
- Stage Lighting
- Dance Floors
- UV and Blacklight Effects
- Event Production
- Small to Medium Lighting Rigs
Specifications
General
- Product: Wash FX 2
- Manufacturer: CHAUVET DJ
- Fixture Type: LED Wash / Effect Light
- Intended Use: Mobile Entertainment and Event Lighting
- Zones: 6 Chasing Zones
Light Source
- LED Type: Quad-Color RGB+UV
- LED Quantity: 18
- LED Power: 6 W
- LED Rated Life: 50,000 hours
- UV Wavelength: 395–405 nm
Photometrics
- Beam Angle: 40°
- Field Angle: 64°
- Illuminance: 1,795 lux @ 2 m
- Strobe Rate: 0–25 Hz
- PWM Frequency: 78.126 Hz
DMX & Control
- DMX Channels: 3, 4, 8, or 28
- DMX Connectors: 3-pin XLR
- Control Modes:
- DMX
- Standalone
- Infrared
- Master/Slave
- Optional Wireless Controller: IRC-6
Power
- Input Voltage: 100–240 VAC, 50/60 Hz
- Power Supply: Auto-ranging internal switching power supply
- Power Consumption @ 120 V: 145 W
- Operating Current @ 120 V: 1.3 A
- Power Consumption @ 230 V: 141 W
- Operating Current @ 230 V: 0.6 A
- Power Linking @ 120 V: Up to 6 units
- Power Linking @ 230 V: Up to 12 units
- Fuse: T1 A, 250 V
- Power Input: IEC
- U.S. Power Output: Edison
Physical
- Length: 10.7 in (273 mm)
- Width: 6.3 in (160 mm)
- Height: 7.2 in (183 mm)
- Weight: 5.8 lb (2.6 kg)
- Cooling: Fan-assisted convection
- Maximum External Temperature: 104°F (40°C)
- Approvals: CE, RoHS
The dimensions and weight above are based on CHAUVET DJ's technical documentation; some older catalog material lists different dimensions, so the current manual specifications are recommended for the product page.
Included Accessories
- Power Cable
- Mounting Bracket/Hardware
What's Included
- 1 × CHAUVET DJ Wash FX 2
- 1 × Power Cable
- Mounting Hardware/Bracket
Compatibility
- CHAUVET DJ IRC-6 Wireless Remote — optional
- CHAUVET DJ CHS-40 VIP Gear Bag — compatible
- DMX512 Controllers — compatible
- Compatible with other DMX-controlled lighting fixtures in professional lighting systems
