Product Description

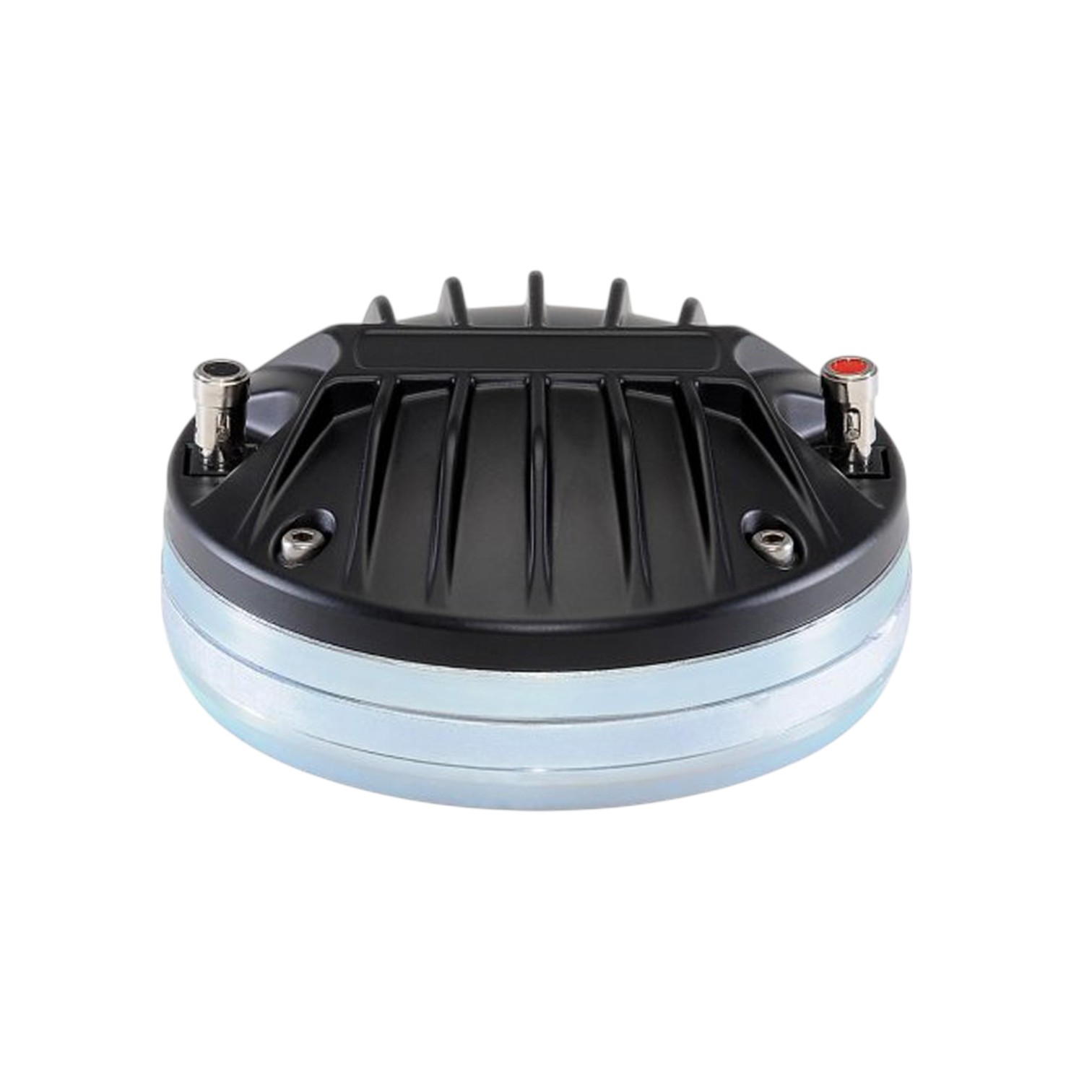

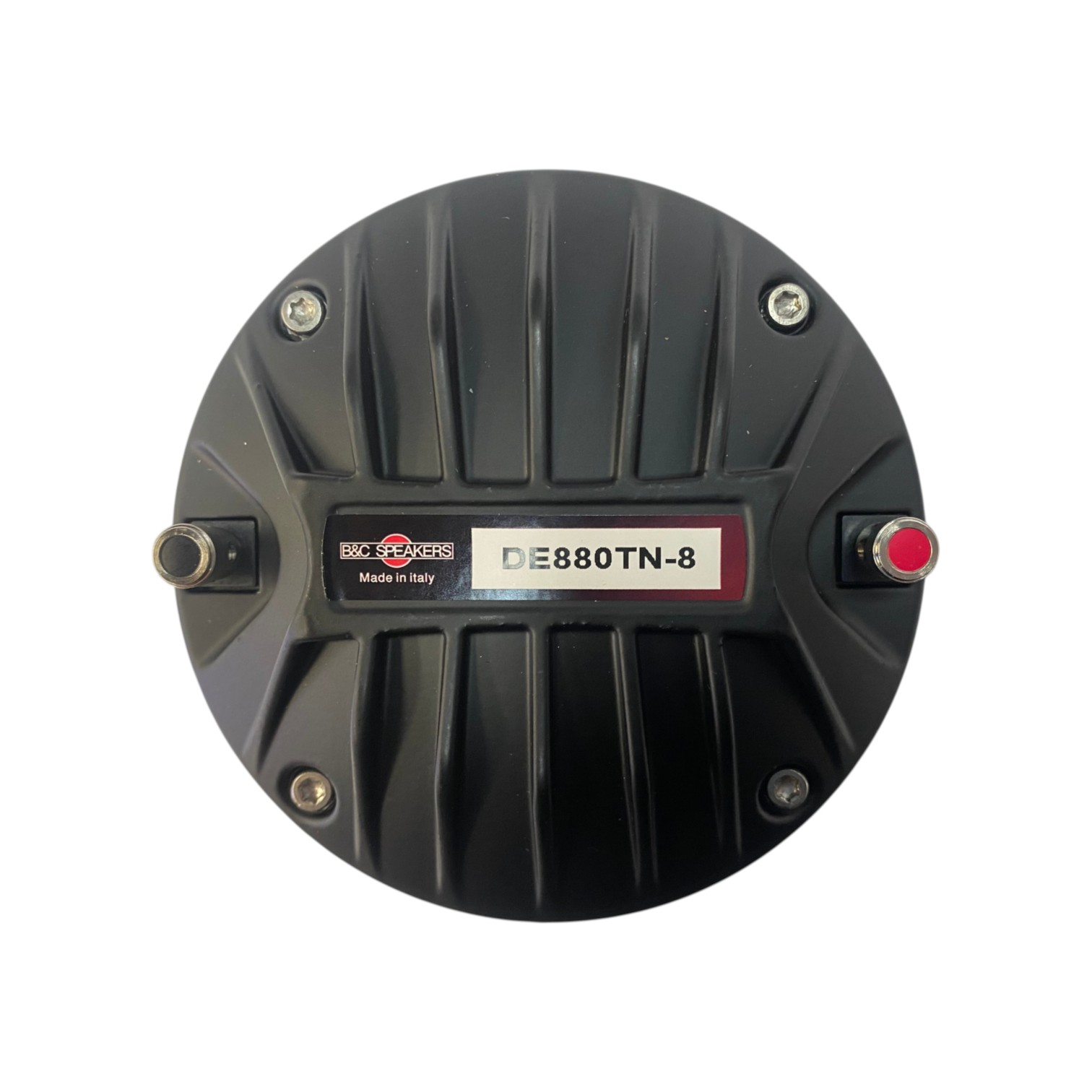

The B&C DE880TN is a premium high-frequency compression driver featuring a 75mm (3-inch) voice coil, powerful neodymium magnet assembly, and titanium diaphragm. Designed for professional sound reinforcement applications, the DE880TN delivers high output, excellent sensitivity, and smooth high-frequency reproduction with controlled distortion.
B&C completely redesigned the diaphragm assembly for this latest-generation driver. The updated design incorporates a bent-edge voice coil former, redesigned dome and surround geometry, and an optimized phase plug. These improvements provide better control of diaphragm displacement and deformation, helping reduce distortion and produce a smoother high-frequency response, particularly above 10kHz.
With a 1.4-inch throat, 8-ohm nominal impedance, 220W continuous power handling, and 108dB sensitivity, the DE880TN is well suited for demanding professional loudspeaker systems, high-output PA cabinets, line array applications, and custom speaker designs.
The neodymium magnet assembly incorporates a shorting copper cap to help improve high-frequency performance and reduce undesirable distortion. The driver features a titanium diaphragm and aluminum voice coil for a combination of high-frequency detail, efficiency, and professional durability.
The DE880TN also has a replacement diaphragm service kit available, making it a practical choice for professional loudspeaker maintenance and repair.
Features
- Premium B&C professional high-frequency compression driver
- 75mm (3-inch) aluminum voice coil
- Titanium diaphragm
- Neodymium magnet assembly
- Shorting copper cap
- 1.4-inch throat diameter
- 220W continuous power handling
- 110W nominal power handling
- 108dB sensitivity
- 500Hz-18kHz operating frequency range
- Smooth extended high-frequency response
- Redesigned diaphragm for improved control and reduced distortion
- Optimized phase plug
- Recommended crossover frequency of 1.2kHz
- Replacement diaphragm service kit available
Applications
- Professional PA Loudspeakers
- High-Power Sound Reinforcement Systems
- Touring Loudspeakers
- Line Array Systems
- Concert Sound
- Large Venue Audio
- Installed Sound Systems
- Custom Speaker Cabinets
- Loudspeaker Repair and Maintenance
- Professional Audio Driver Replacement
Specifications
Driver
- Manufacturer: B&C Speakers
- Model: DE880TN
- Driver Type: High-Frequency Compression Driver
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 8.1 Ohms
- Throat Diameter: 36mm / 1.4"
- Voice Coil Diameter: 75mm / 3"
- Diaphragm Material: Titanium
- Voice Coil Winding Material: Aluminum
- Magnet Material: Neodymium
- Flux Density: 1.85 Tesla
Power & Performance
- Continuous Power Handling: 220W
- Nominal Power Handling: 110W
- Sensitivity: 108dB
- Frequency Range: 500Hz-18kHz
- Recommended Crossover: 1.2kHz
- Inductance: 0.1mH
Mounting
- Mounting Holes: 4 × M6
- Mounting Pattern: 90° on 102mm / 4" diameter
- Overall Diameter: 124mm / 4.9"
- Depth: 54mm / 2.13"
Dimensions & Weight
- Overall Diameter: 124mm / 4.9"
- Depth: 54mm / 2.13"
- Net Weight: 2.15kg / 4.74lbs
- Shipping Weight: 2.2kg / 4.85lbs
Shipping
- Shipping Box: 140 × 135 × 62mm
- Shipping Box: 5.51 × 5.31 × 2.44"
- Shipping Unit: 1 piece
Service Kit
- Replacement Diaphragm: MMD3DTN8M
