Product Description

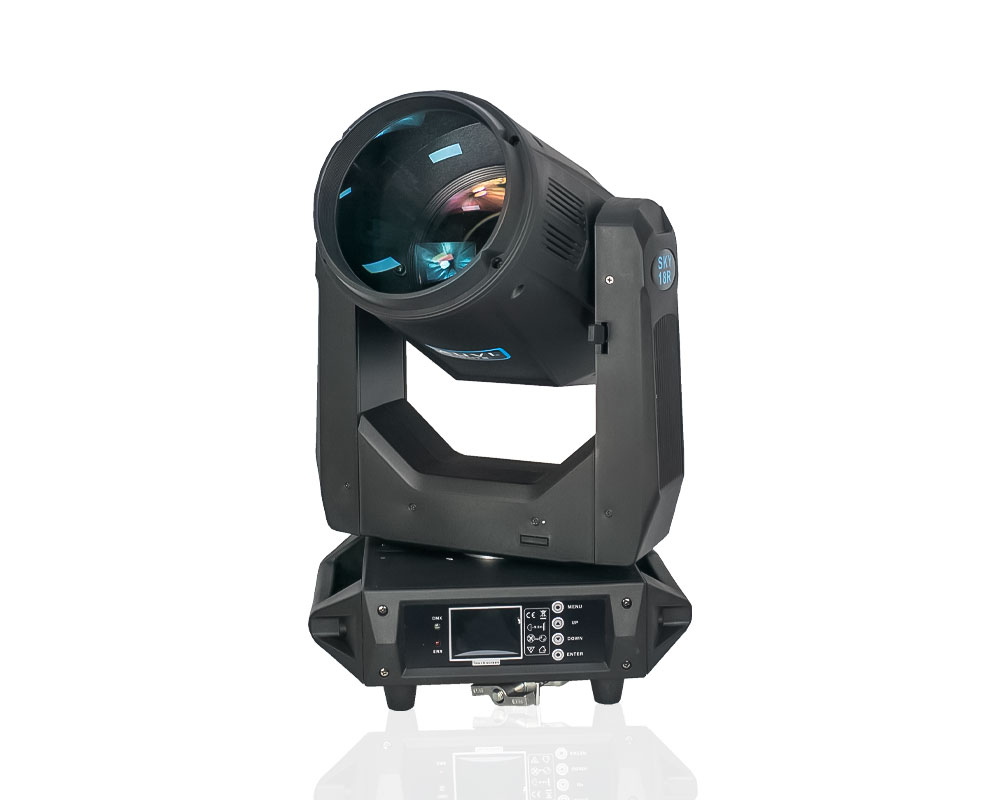

AUVI Sky Beam 18RX 382W Moving Head Beam with Dual Prisms & Folding Clamps
Professional 382W Moving Head Beam for Concerts, DJs & Live Productions
The AUVI Sky Beam 18RX is a high-performance moving head beam fixture designed for professional productions that demand exceptional brightness, speed, and reliability. Powered by a genuine OSRAM MSD Platinum 382W lamp, it produces razor-sharp aerial beams, vibrant colors, crisp gobos, and dynamic prism effects, making it ideal for concerts, festivals, churches, nightclubs, theaters, and touring productions.
Its lightweight, compact design and integrated Folding Clamp System allow for faster installation while delivering the performance expected from professional lighting equipment.
Key Features
- OSRAM MSD Platinum 382W Lamp
- 8,000K color temperature
- Up to 2,200-hour lamp life
- Exceptional brightness with long-throw beam projection
- Ultra-Sharp Beam Optics
- Motorized focus
- Adjustable beam angle from 3°–32°
- Smooth electronic zoom
- Professional Color & Gobo Effects
- 14 vibrant colors plus open white
- 17 precision gobos plus open
- Smooth rainbow color effect
- Dual Rotating Prism System
- 6-facet linear prism
- 8-facet circular prism
- Prism layering and rotating prism effects
- Frost filter for soft wash effects
- Fast & Precise Movement
- 540° Pan / 270° Tilt
- 16-bit resolution
- Electronic position correction
- Professional Control
- DMX512 Protocol
- 18CH or 20CH DMX Modes
- LED 4-button control menu
- 3-pin & 5-pin DMX connections
- Smooth Dimming & Strobe
- 0–100% electronic dimming
- Electronic shutter
- Variable strobe with macro effects
- Easy Installation
- Built-in Folding Clamp System
- Compact, lightweight design
- Fast truss mounting
- Reliable Performance
- Overheat protection
- IP20 indoor rating
- ETL Pending
Technical Specifications
| Specification | Details |
|---|---|
| Light Source | OSRAM MSD Platinum 382W |
| Lamp Life | Up to 2,200 Hours |
| Color Temperature | 8,000K |
| Beam Angle | 3°–32° |
| Focus | Motorized |
| Zoom | Motorized |
| Color Wheel | 14 Colors + Open White |
| Gobo Wheel | 17 Gobos + Open |
| Prisms | Rotating 6-Facet Linear & 8-Facet Circular |
| Frost Filter | Yes |
| DMX Modes | 18CH / 20CH |
| Control Protocol | DMX512 |
| Connections | PowerCON, 3-Pin & 5-Pin DMX |
| Dimming | 0–100% Electronic |
| Strobe | Electronic with Macro Effects |
| Pan / Tilt | 540° / 270° (16-Bit) |
| Power Input | AC 100–240V, 50/60Hz |
| Power Consumption | 650W |
| Power Draw | 5.2A @120V / 2.44A @220V |
| Protection | Overheat Protection |
| IP Rating | IP20 (Indoor Use Only) |
| Dimensions | 23 × 18 × 18 in |
| Weight | 48 lbs (21.8 kg) |
What's Included
- (1) AUVI Sky Beam 18RX Moving Head
- Integrated Folding Clamps
- (1) PowerCON to Edison Power Cable
- User Manual
