AUVI P2.9 Indoor LED Video Wall Package – Complete Professional LED Display System (2026 Series)

The AUVI P2.9 Indoor LED Video Wall Package is a complete professional-grade LED display solution designed for churches, houses of worship, corporate events, rental and staging companies, trade shows, educational facilities, and digital signage installations.

Part of the NEW 2026 AUVI LED Series, this package delivers outstanding image quality with a fine 2.9mm pixel pitch, ultra-smooth 7860Hz refresh rate, enhanced color accuracy, and professional Novastar video processing technology. Designed for reliability in demanding environments, the system includes premium features such as integrated corner protection, intelligent auto-voltage power supplies, front and rear serviceability, and a rugged touring flight case.

The included six-panel configuration creates an LED wall approximately 10 feet wide by 3 feet high, providing a high-impact visual solution for presentations, worship services, live productions, and digital content display.

With professional-grade construction, superior protection features, and a complete package that arrives ready for installation, the AUVI P2.9 LED Video Wall delivers exceptional value and performance for production professionals and AV integrators alike.

Why Choose AUVI?

Built for Professional Applications

• Churches & Houses of Worship
• AV Integrators
• Rental & Staging Companies
• Corporate Event Production
• Trade Show Exhibitors
• Educational Facilities
• Hotels & Convention Centers
• Digital Signage Installations

Exclusive AUVI Protection Features

Integrated Corner Protection

Built-in corner guards help protect LED surfaces during transportation, setup, and storage.

Benefits:

• Better transportation protection
• Reduced impact damage risk
• Extended panel lifespan
• Lower maintenance costs
• Ideal for rental inventories

Auto-Voltage Power Supplies

Every panel includes intelligent auto-switching power supplies.

Benefits:

• Supports both 110V and 220V operation
• No manual voltage switching required
• Improved reliability
• International compatibility
• Faster setup and deployment

Package Includes

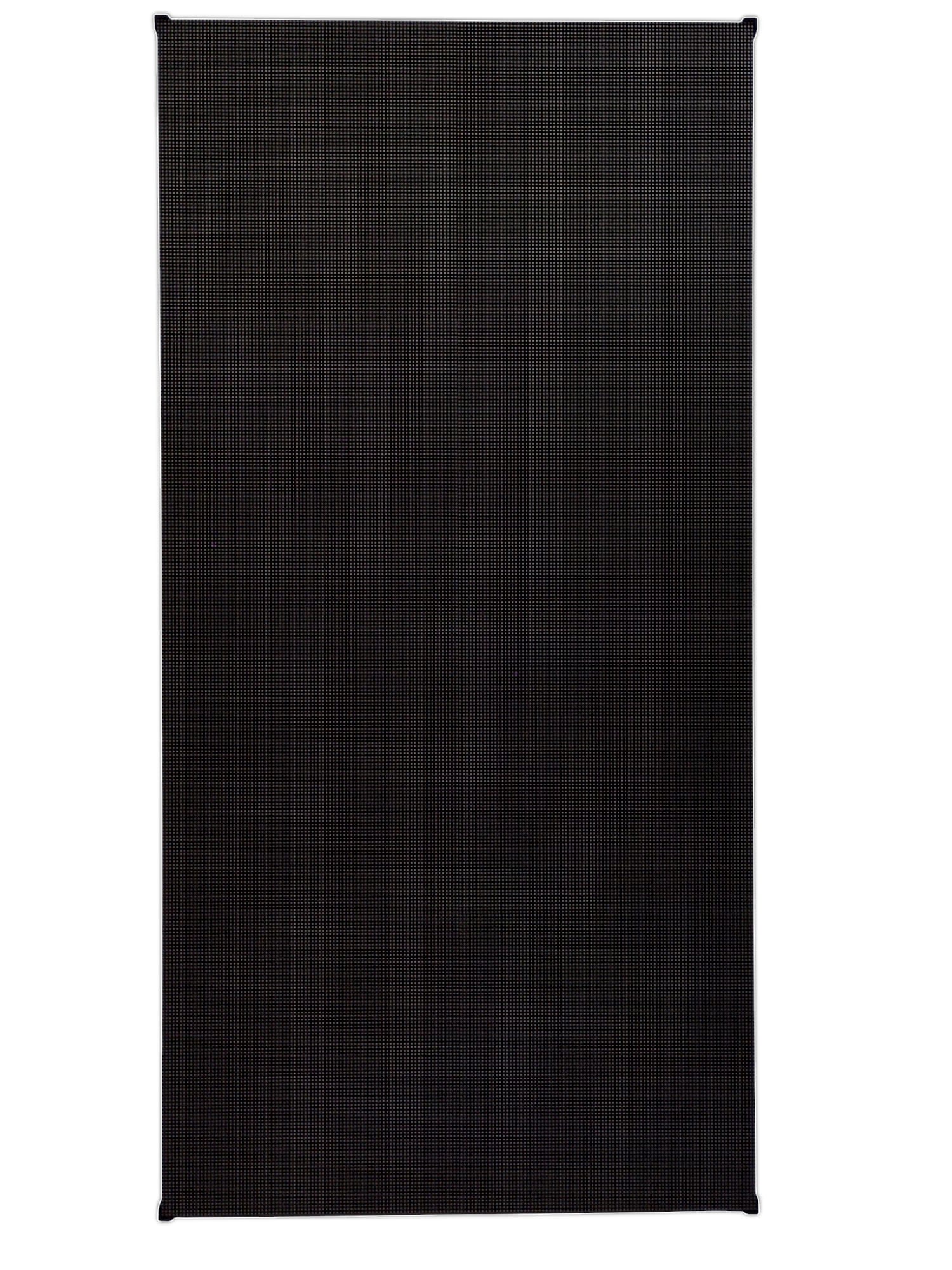

(6) AUVI P2.9 Indoor LED Panels

Features:

• 2.9mm Fine Pixel Pitch
• High-resolution display
• 7860Hz Ultra-High Refresh Rate
• Lightweight die-cast aluminum cabinets
• Front and rear maintenance access
• Integrated corner protection
• Auto-voltage power supplies

(1) Novastar CMS260 Video Processor

• Professional image scaling and processing
• Stable signal management
• Superior image quality

Novastar MRV412-N Receiver Cards

• Reliable communication and control
• Accurate image reproduction
• Stable system operation

(3) Ground / Hanging Beam Bars

• 100cm (3.28 ft) length
• Supports two panels per beam
• Suitable for hanging or ground stack installations
• Heavy-duty aluminum construction

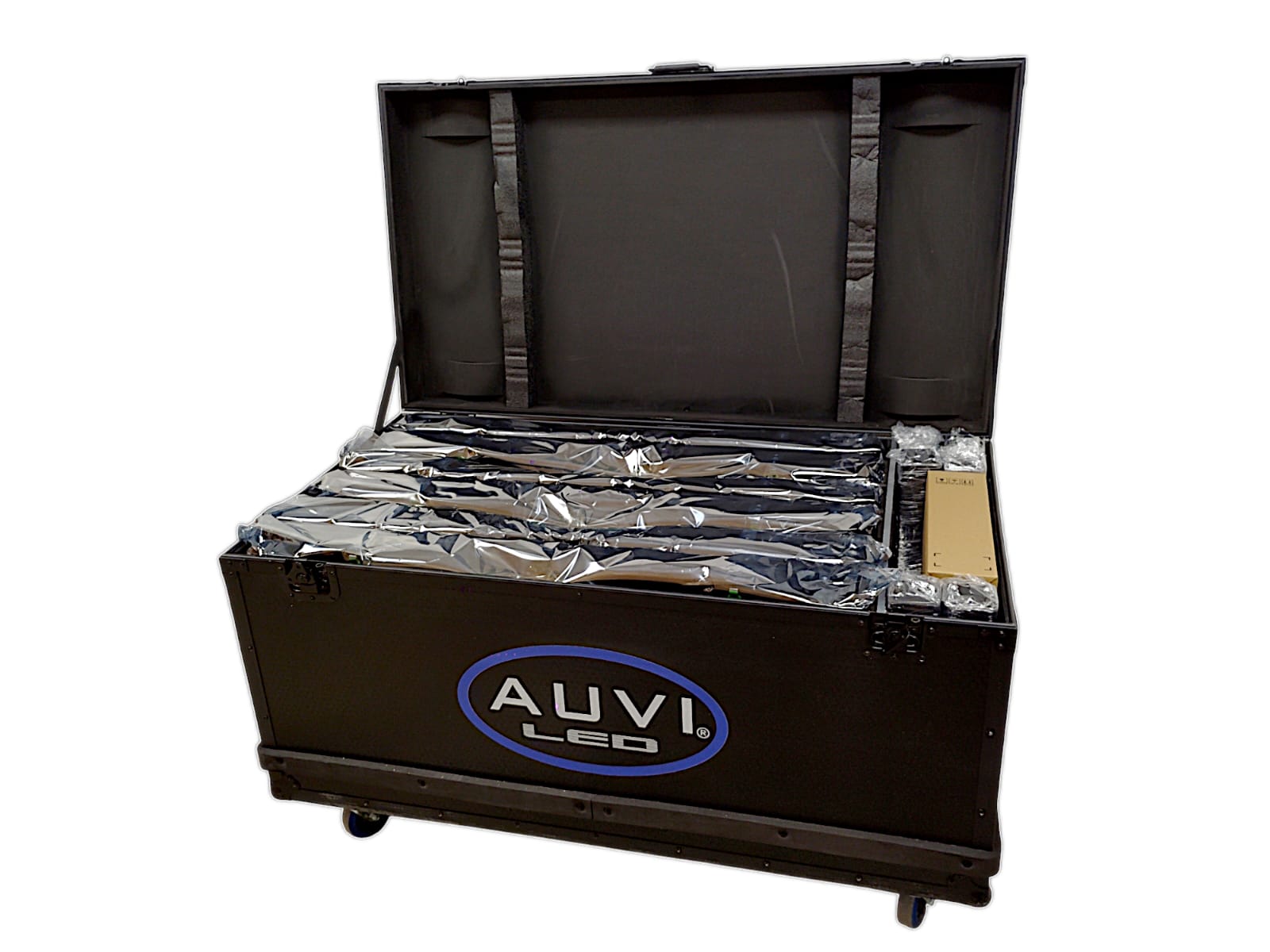

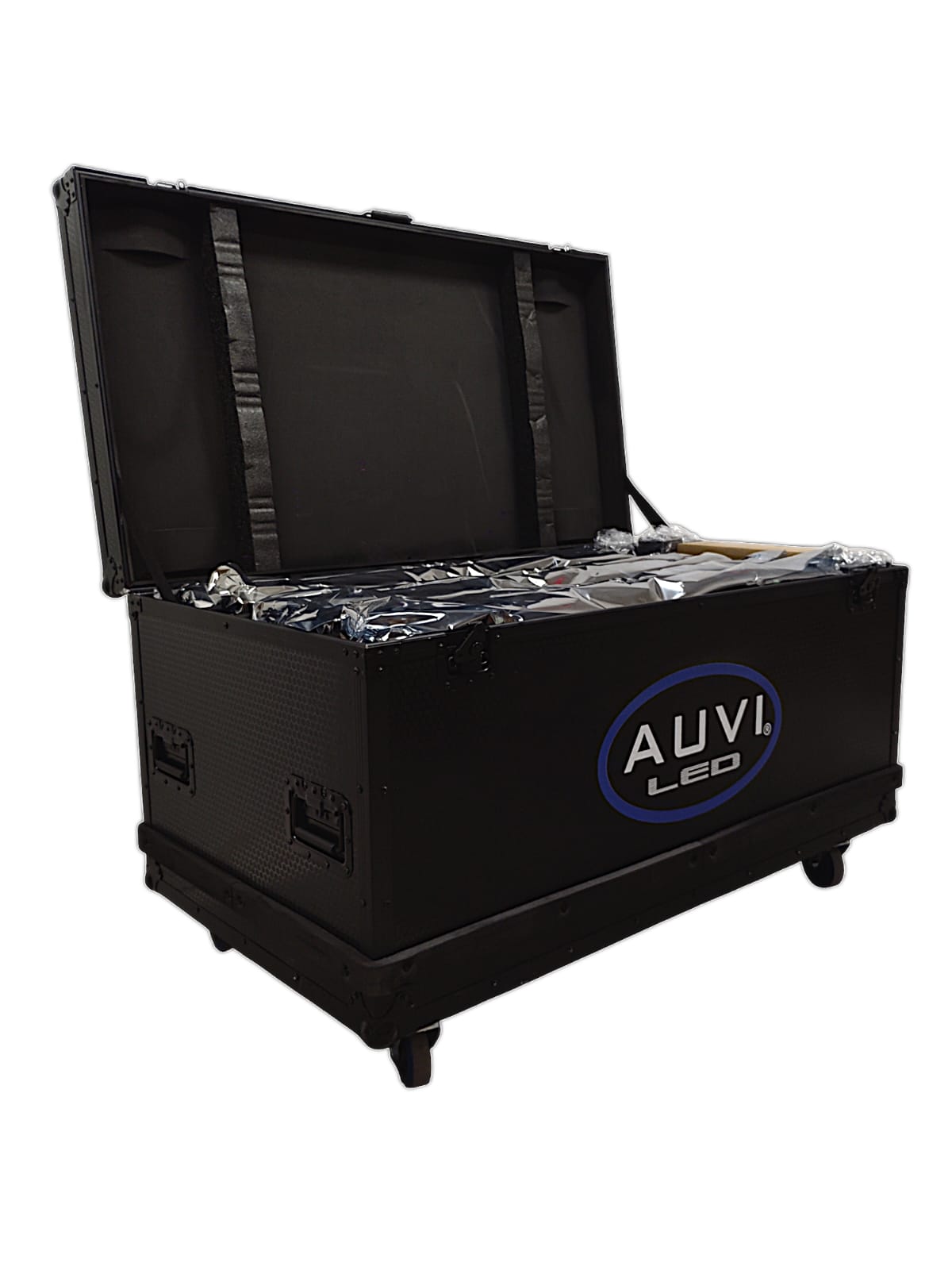

(1) Premium AUVI Touring Flight Case

• Holds up to six LED panels
• Heavy-duty touring design
• Reinforced hardware
• Locking casters
• Internal protection system
• Modern textured black finish

Features

• Complete professional indoor LED video wall package
• Fine 2.9mm pixel pitch for sharp image quality
• Ultra-high 7860Hz refresh rate for camera-friendly performance
• Includes six LED cabinets
• Approximate display size of 10 ft x 3 ft
• Professional Novastar CMS260 processor included
• Novastar MRV412-N receiver cards included
• Front and rear service access
• Die-cast aluminum cabinet construction
• Integrated corner protection system
• Intelligent auto-voltage power supplies
• Includes hanging and ground support beams
• Premium six-panel touring flight case included
• Suitable for fixed installation or rental production applications

Specifications

LED Module

• Pixel Pitch: 2.9 mm
• LED Type: SMD1515
• Module Resolution: 84 × 84 Pixels
• Module Size: 250 × 250 mm

Cabinet

• Cabinet Size: 500 × 1000 mm (19.69" × 39.37")
• Cabinet Resolution: 168 × 336 Pixels
• Cabinet Material: Die-Cast Aluminum
• Weight Per Cabinet: 11.56 kg (25.50 lbs)
• Maintenance Access: Front & Rear
• Flatness Tolerance: ≤1 mm

Optical Performance

• Brightness: ≥1,200 Nits
• Gray Scale: 16-Bit
• Viewing Angle (Horizontal): 120°
• Viewing Angle (Vertical): 120°
• Viewing Distance: 3–80 m (9.8–262.5 ft)

Electrical

• Input Voltage: AC 110V–220V ±10%
• Auto Voltage Switching: Yes
• Average Power Consumption: 78W Per Cabinet
• Maximum Power Consumption: 260W Per Cabinet
• Drive Mode: 1/28 Scan Constant Current
• Refresh Rate: 7860Hz

Control & Processing

• Video Processor: Novastar CMS260
• Receiver Card: Novastar MRV412-N
• Control System: Novastar
• Signal Interface: RJ45

Supported Inputs

• HDMI
• DVI
• VGA
• SDI

Environmental

• Operating Temperature: -20°C to +65°C (-4°F to +149°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Operating Humidity: 10–95%
• Protection Rating: IP54

Reliability

• MTBF: ≥10,000 Hours
• LED Lifespan: ≥100,000 Hours

Display Configuration

• Display Size: Approximately 10 ft × 3 ft (3.05 m × 0.91 m)
• Panel Quantity: 6 Panels
• Pixel Pitch: 2.9mm
• Refresh Rate: 7860Hz
• Video Processor Included: Yes
• Flight Case Included: Yes
• Ground/Hanging Bars Included: Yes
• Auto Voltage Operation: Yes
• Corner Protection: Yes
• Model Year: 2026
