Product Description

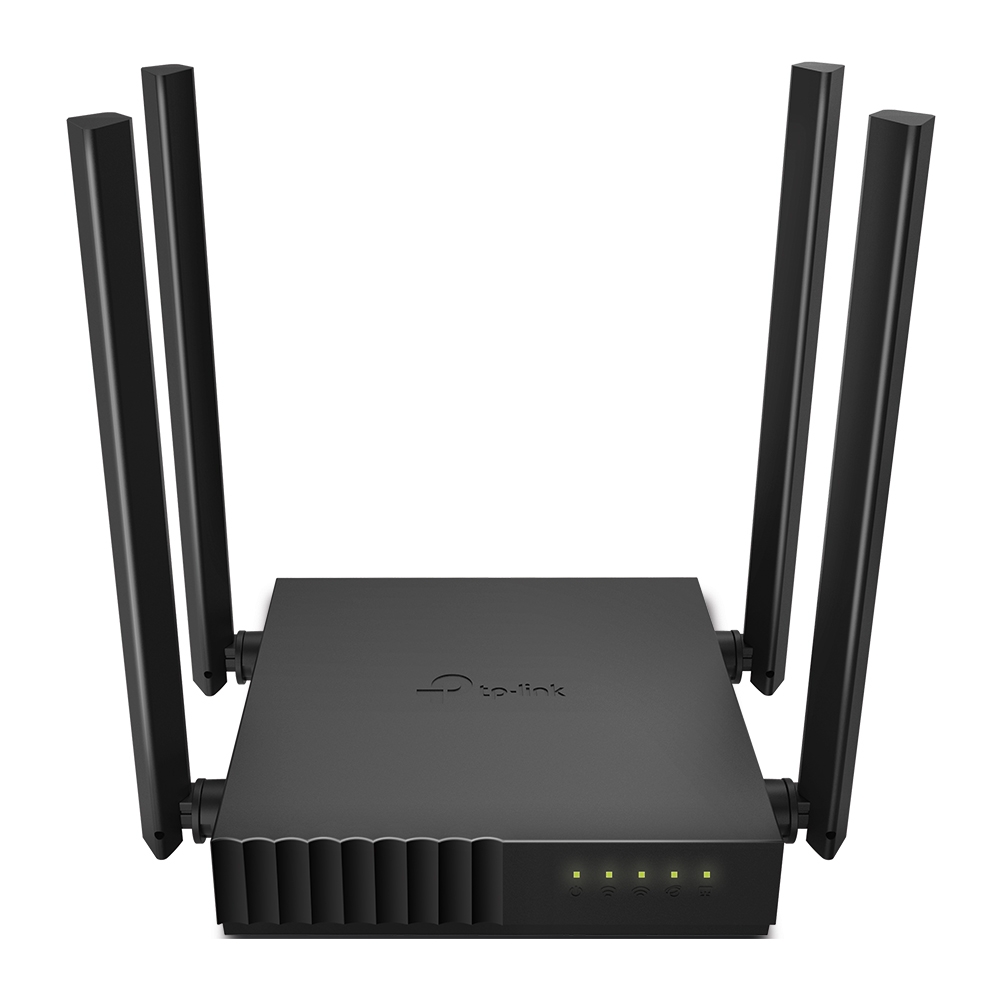

The TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router delivers fast, reliable wireless performance for homes, apartments, small offices, and everyday internet users. Featuring dual-band Wi-Fi technology, the Archer C54 provides combined wireless speeds of up to 1200 Mbps, allowing demanding devices to connect to the high-speed 5 GHz band while everyday devices utilize the stable 2.4 GHz band.
Equipped with four high-performance external antennas and Beamforming technology, the Archer C54 extends wireless coverage throughout your home by directing signal strength toward connected devices. MU-MIMO technology enables simultaneous communication with multiple devices, reducing latency and improving overall network efficiency for streaming, gaming, browsing, and video conferencing.
The Archer C54 offers flexible deployment with three operating modes: Router Mode, Access Point Mode, and Range Extender Mode. Advanced features such as parental controls, guest networks, IPv6 support, IPTV optimization, and WPA3 wireless security provide a secure and customizable networking experience.
Compact and wall-mountable, the Archer C54 is designed to fit seamlessly into any environment while delivering dependable wireless connectivity for modern households.
Features
- AC1200 dual-band Wi-Fi router
- Combined wireless speeds up to 1200 Mbps
- 867 Mbps on 5 GHz band
- 300 Mbps on 2.4 GHz band
- Four fixed external high-performance antennas
- Beamforming technology for improved coverage
- MU-MIMO technology for simultaneous device communication
- Router, Access Point, and Range Extender operating modes
- Advanced parental controls
- Separate guest networks for enhanced security
- WPA, WPA2, WPA3, and WPA/WPA2-Enterprise encryption support
- IPTV optimization with IGMP Proxy, Snooping, Bridge, and Tag VLAN
- IPv4 and IPv6 support
- QoS device prioritization
- Easy management via TP-Link Tether App and web interface
- Compact wall-mountable design
Applications
- Home Wi-Fi Networks
- Apartments and Condos
- Small Offices
- HD Video Streaming
- Online Gaming
- Video Conferencing
- IPTV Systems
- Smart Home Devices
- Guest Internet Access
- Remote Learning
Specifications
General
- Model: Archer C54
- Wireless Standard: Wi-Fi 5 (802.11ac)
- Operating Modes:
- Router Mode
- Access Point Mode
- Range Extender Mode
Wireless
- Wireless Speed:
- 5 GHz: Up to 867 Mbps
- 2.4 GHz: Up to 300 Mbps
- Total Speed: AC1200
- Antennas: 4 Fixed External Antennas
- Beamforming: Yes
- MU-MIMO: Yes
- Dual-Band Operation: Yes
Wireless Standards
- IEEE 802.11ac/n/a (5 GHz)
- IEEE 802.11n/b/g (2.4 GHz)
Security
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- WPA Security
- WPA2 Security
- WPA3 Security
- WPA/WPA2 Enterprise (802.1x)
Guest Networks
- 1 × 2.4 GHz Guest Network
- 1 × 5 GHz Guest Network
Hardware
- Processor: Single-Core CPU
- WAN Port:
- 1 × 10/100 Mbps Ethernet Port
- LAN Ports:
- 4 × 10/100 Mbps Ethernet Ports
- Button:
- WPS/Reset Button
- Power Input:
- 9V DC, 0.85A
Network Features
- IPv4 Support
- IPv6 Support
- DHCP Server
- Address Reservation
- QoS by Device
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
- Dynamic DNS Support
- NO-IP
- DynDNS
Parental Controls
- URL Filtering
- Time-Based Controls
IPTV Support
- IGMP Proxy
- IGMP Snooping
- Bridge Mode
- Tag VLAN
Management
- TP-Link Tether Mobile App
- Web-Based Management Interface
Environmental
- Operating Temperature:
- 32°F to 104°F
- 0°C to 40°C
- Storage Temperature:
- -40°F to 140°F
- -40°C to 60°C
- Operating Humidity:
- 10% to 90% Non-Condensing
- Storage Humidity:
- 5% to 90% Non-Condensing
Certifications
- FCC
- CE
- RoHS
Dimensions
- Width: 4.5"
- Depth: 4.2"
- Height: 1.0"
Metric Dimensions
- Width: 115 mm
- Depth: 106.7 mm
- Height: 24.3 mm
Package Contents
- TP-Link Archer C54 AC1200 Wi-Fi Router
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
