Product Description

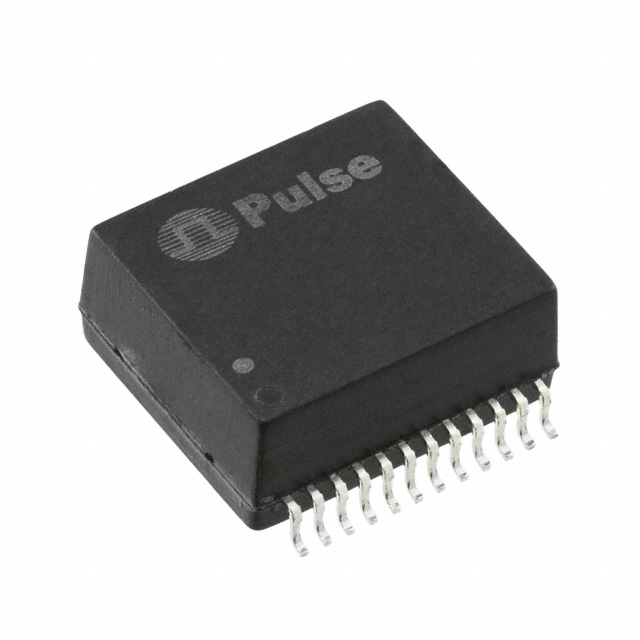

The Pulse Electronics Pulse Transformer H2006ANL is a compact, surface-mount isolation and data interface transformer module designed for Power over Ethernet (PoE) and VoIP networking applications. Engineered for reliable signal isolation and data transmission, this dual-channel magnetics module features a 1:1 transmitter and 1:1 receiver turns ratio, making it ideal for Ethernet communication equipment, IP telephony systems, networking hardware, and embedded communication devices.
Built with Pulse Electronics' proven networking expertise, the H2006ANL offers dependable performance in a compact footprint while supporting modern Ethernet and PoE infrastructure requirements. Its encapsulated design provides enhanced electrical isolation and signal integrity, making it an excellent choice for OEMs, system integrators, and electronic manufacturers developing professional networking products. Module Magnetics POE Dual VOIP, Isolation and Data Interface (Encapsulated).
Features,
- Dual VoIP and PoE magnetics module
- Isolation and data interface transformer design
- Surface-mount (SMT) package for automated assembly
- 1:1 transmitter turns ratio
- 1:1 receiver turns ratio
- Compact encapsulated construction
- Designed for Ethernet networking applications
- Ideal for VoIP, PoE, and communication equipment
- RoHS3 compliant
- REACH compliant
- Active production status
Specifications
General
- Manufacturer: Pulse Electronics
- Manufacturer Part Number: H2006ANL
- Product Type: Module Magnetics PoE Dual VoIP
- Category: Pulse Transformers
- Transformer Type: Isolation and Data Interface (Encapsulated)
- Mounting Type: Surface Mount (SMT)
- Packaging: Tube
- Part Status: Active
Electrical Specifications
- Turns Ratio (Primary:Secondary):
- 1:1 Transmitter
- 1:1 Receiver
Mechanical Specifications
- Length: 0.537 in (13.64 mm)
- Width: 0.470 in (11.94 mm)
- Maximum Height Seated: 0.254 in (6.45 mm)
- Weight: 0.09 oz (2.56 g)
Environmental Specifications
- Operating Temperature: 0°C to 70°C
- Moisture Sensitivity Level (MSL): 3 (168 Hours)
Compliance
- RoHS Status: RoHS3 Compliant
- REACH Status: REACH Unaffected
- ECCN: EAR99
- HTSUS: 8504.31.2000
Applications
- Voice over IP (VoIP) systems
- Power over Ethernet (PoE) devices
- Network switches and routers
- Ethernet communication equipment
- IP phones
- Embedded networking solutions
- Industrial communication systems
- Data networking infrastructure
