Product Description

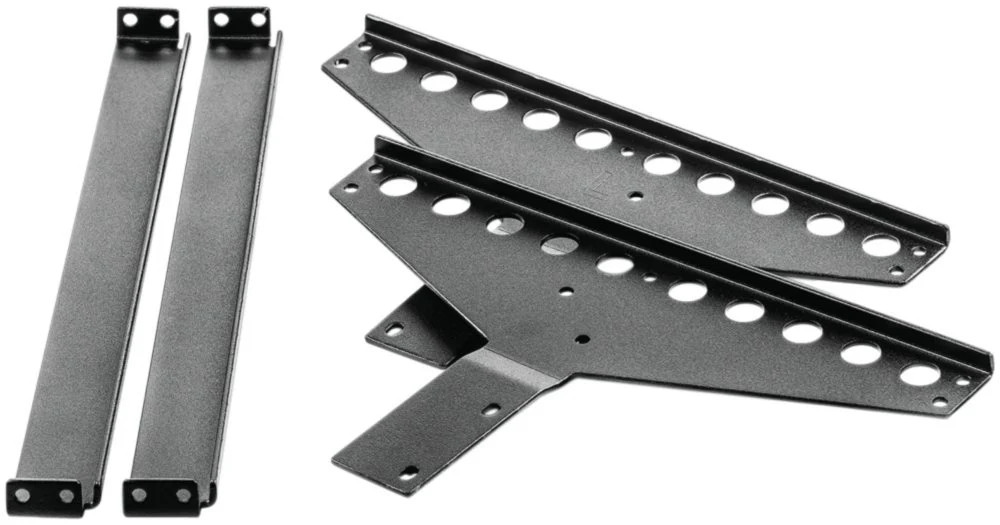

The Yorkville PSA1FRAME is the proprietary flying bumper designed for safely suspending Yorkville Paraline Series PSA1 loudspeaker arrays in permanent and portable installation environments. When used in conjunction with the PSA1RIGKIT rigging side rails, the PSA1FRAME allows PSA1 cabinets to be flown quickly, securely, and cost effectively without requiring cabinet modification.
The PSA1FRAME connects to PSA1 cabinets that are pre-fitted with PSA1RIGKIT assemblies, enabling up to four PSA1 cabinets to be vertically arrayed and flown from a single frame. Multiple integrated flying points on the bumper allow for simple two-point hangs, making it easy to angle the array for optimal vertical coverage.
Engineered for efficiency in the field, the PSA1FRAME maintains fixed cabinet-to-cabinet splay angles, ensuring seamless vertical coverage and consistent performance. This modular rigging system eliminates the need for complicated hardware or external signal processing while delivering the output and coverage control expected from a compact vertical line array system.
Ideal for houses of worship, theaters, clubs, auditoriums, and other installed sound applications, the PSA1FRAME provides a reliable, professional-grade solution for flying PSA1 arrays safely and efficiently.
Coverage Configurations
-
2 PSA1 cabinets (2 × PSA1RIGKIT + 1 × PSA1FRAME):
30° Vertical x 110° Horizontal coverage -
3 PSA1 cabinets (3 × PSA1RIGKIT + 1 × PSA1FRAME):
45° Vertical x 110° Horizontal coverage -
4 PSA1 cabinets (4 × PSA1RIGKIT + 1 × PSA1FRAME):
60° Vertical x 110° Horizontal coverage
Features
-
Official Yorkville flying bumper for PSA1 loudspeaker arrays
-
Designed for use with PSA1RIGKIT rigging side rails
-
Supports flying arrays of up to four PSA1 cabinets
-
Multiple integrated flying points for easy two-point hangs
-
Maintains fixed cabinet-to-cabinet splay angles
-
Fast field setup with minimal hardware and labor
-
No external signal processing required
-
Ideal for permanent and portable installation environments
Specifications
Product Type
-
Flying Bumper / Array Frame
Compatibility
-
Yorkville Paraline Series PSA1 Loudspeakers
Maximum Array Size
-
Up to 4 PSA1 cabinets
