Product Description
The Yamaha Yamaha DM3S bundled with the ProX ProX XS-YDM3MDLZ provides a compact, powerful digital mixing solution with professional-grade transport protection.
This package is ideal for live sound engineers, production companies, houses of worship, and mobile professionals who need high-end audio performance in a portable format.

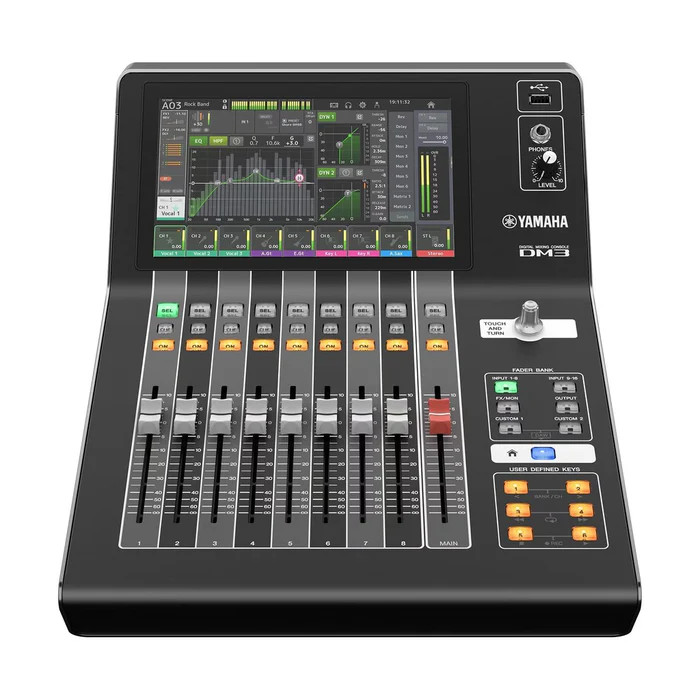

Yamaha DM3S 22-Channel Digital Mixer
The DM3S delivers 22 channels in an ultra-compact chassis, featuring a 9-inch touchscreen and a single touch-and-turn control knob for intuitive operation. With up to 96kHz resolution, 16 premium mic preamps, and 8 XLR outputs, this mixer offers pristine sound quality suitable for professional applications.
Built-in DSP effects draw from Yamaha’s legendary digital processing heritage, while the integrated 18×18 USB audio interface enables seamless multi-track recording and playback. Direct 2×2 recording to a USB drive, DAW remote control functionality, USB-MIDI, OSC compatibility, and LAN connectivity make this mixer extremely versatile for both live and studio environments.
ProX ATA Flight Case
The included XS-YDM3MDLZ ATA road case is custom-designed to fit the DM3S securely. Constructed from premium 3/8" plywood and reinforced with steel ball corners, this flight case ensures maximum durability during transport.
High-density foam interior padding protects the mixer from impact, while recessed butterfly twist-lock latches and spring-action handles provide secure handling. The low front panel design allows convenient access to connections while the mixer remains seated in the case.
This bundle offers a complete professional solution — performance and protection in one package.
Features
Yamaha DM3S Mixer
-
22-channel digital mixer (16 mono, 1 stereo, 2 stereo FX returns)
-
9" touchscreen with intuitive touch-and-turn control
-
96kHz sampling capability
-
16 mic preamps with phantom power
-
8 XLR outputs
-
6 mono or 3 stereo mixes
-
2 matrix buses
-
Built-in high-quality DSP effects
-
18×18 USB audio interface
-
Direct USB recording (2×2)
-
DAW remote mode with transport control
-
USB-MIDI, OSC, and LAN control support
ProX XS-YDM3MDLZ Case
-
ATA-300 flight-style road case
-
Custom-fit interior for Yamaha DM3S or Mackie DLZ Mixer Console
-
3/8" premium plywood construction
-
Reinforced steel ball corners
-
High-density foam padding
-
Recessed spring-action handles
-
Recessed butterfly twist-lock latches (padlock-ready)
-
Industrial rubber feet
-
ProX Limited Lifetime Warranty
Specifications
Yamaha DM3S
Type: Digital Mixer
Channels: 22
Mic Inputs:
12 × XLR
4 × XLR-1/4" Combo
Phantom Power: 16 Channels
Outputs:
8 × XLR
USB:
1 × Type-A
1 × Type-B (18×18 interface)
LAN: 1 × RJ-45
Headphones: 1 × 1/4"
Faders: 9 × 100mm motorized
Sampling Rate: Up to 96kHz
Screen: 9-inch touchscreen
Power Supply: 24V DC (included)
Dimensions:
Height: 5.5 in (139.7 mm)
Width: 12.6 in (320 mm)
Depth: 17.9 in (454.7 mm)
Weight: 14.33 lbs (6.5 kg)
ProX XS-YDM3MDLZ Case
Exterior Dimensions:
10.00 in (H) × 24.00 in (W) × 16.00 in (L)
Weight: 17.00 lbs (7.71 kg)
Construction: 3/8" Premium Series Plywood
Latch Type: Recessed butterfly twist-lock
Corner Protection: Reinforced steel ball corners
