Product Description

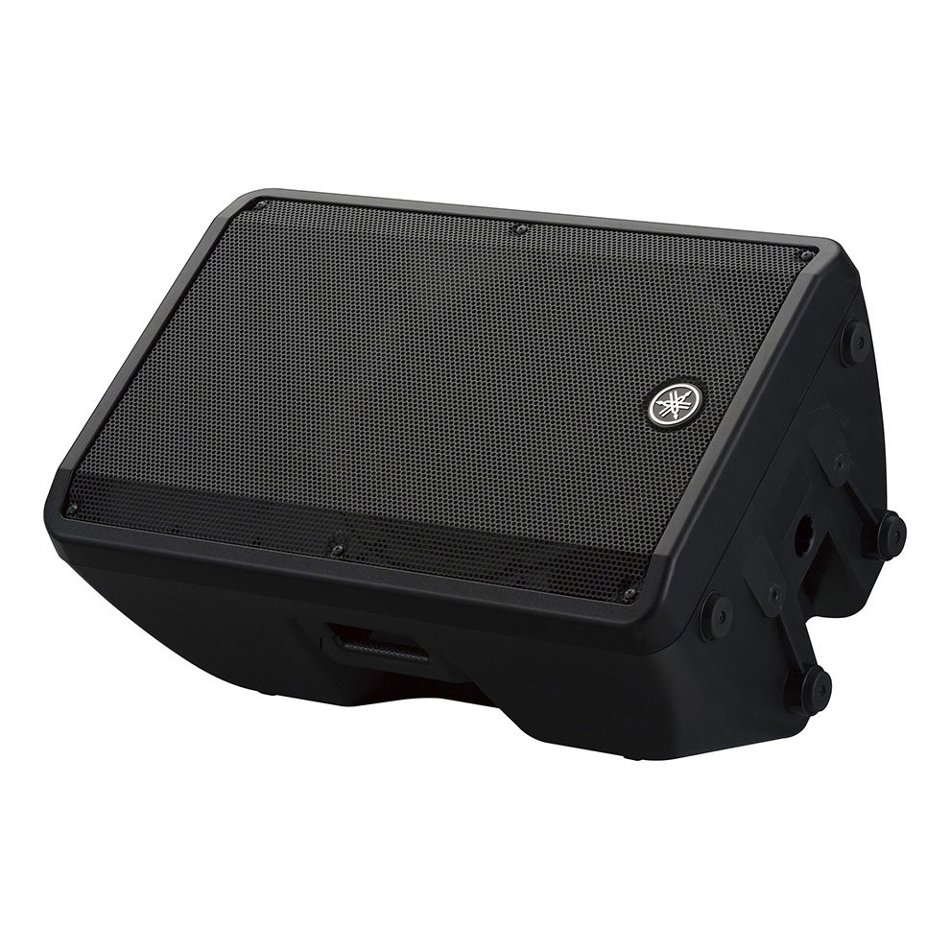

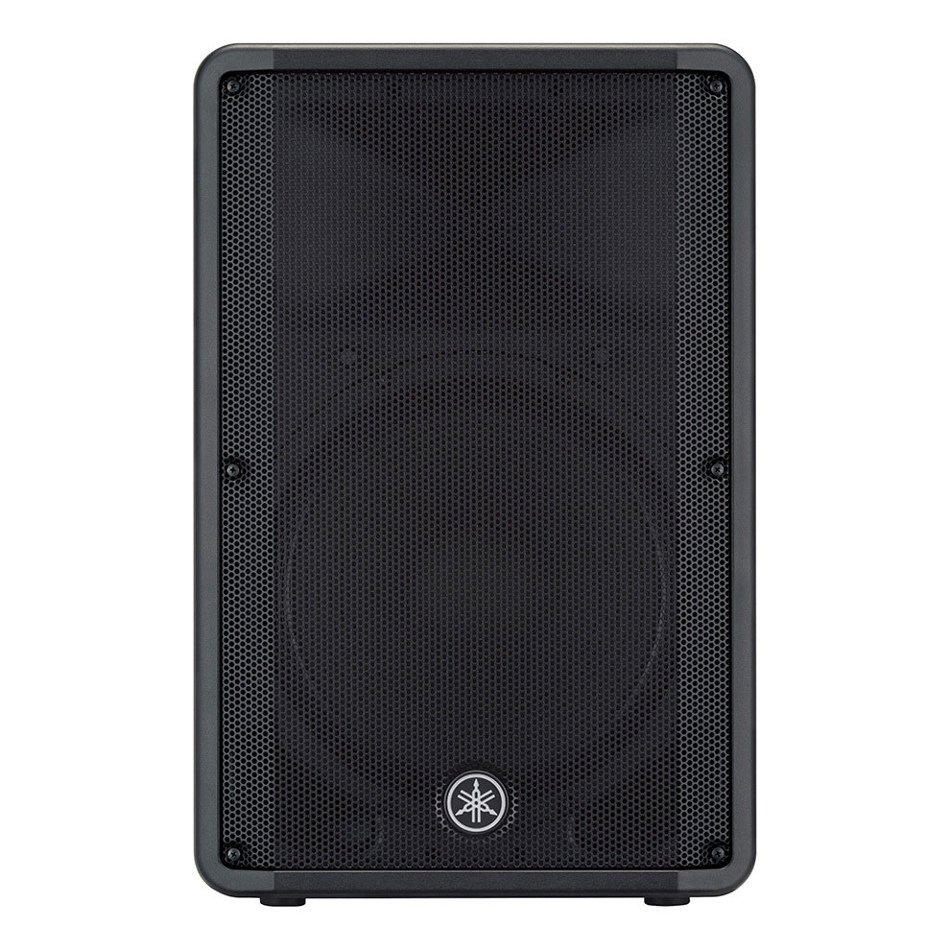

The Yamaha DBR15 15-Inch Powered Speaker is a high-performance, portable PA loudspeaker designed for DJs, live bands, and professional audio applications. Delivering up to 1000W of Class-D power and an impressive 132 dB maximum SPL, the DBR15 produces clear, punchy, and distortion-free sound—even in demanding environments.
Featuring a 15-inch low-frequency driver and a 1.4-inch compression driver, this speaker provides deep, defined bass and crisp highs. Yamaha’s advanced FIR-X tuning™ crossover ensures smooth frequency response and optimal phase alignment, while the integrated DSP processing with D-CONTOUR allows you to tailor the sound for FOH or monitor use.
Housed in a lightweight yet rugged cabinet, the DBR15 is built for portability and durability. With flexible input options, a built-in 2-channel mixer, and multiple placement configurations—including floor monitor and pole mounting—this speaker adapts easily to any setup.
Whether you're performing live, DJing an event, or setting up a professional sound system, the DBR15 delivers reliable, high-quality audio performance in a versatile, road-ready design.
Features
-
1000W Class-D amplification for powerful, dynamic sound
-
132 dB max SPL for high-output performance
-
15" woofer + 1.4" compression driver for full-range clarity
-
FIR-X tuning™ crossover for precise phase alignment
-
D-CONTOUR DSP processing (FOH/Main, Monitor modes)
-
Built-in 2-channel mixer with XLR/TRS and RCA inputs
-
Lightweight, portable cabinet with ergonomic handles
-
Multi-position use (FOH, floor monitor, rigged installation)
-
Durable steel grille for driver protection
-
Pole mount and rigging points for flexible setup
Specifications
Type:
2-way, bi-amp powered speaker (bass-reflex)
Frequency Range (-10 dB):
50 Hz – 20 kHz
Coverage:
90° x 60°
LF Driver:
15" cone, 2.5" voice coil, ferrite magnet
HF Driver:
1.4" diaphragm, 1" throat compression driver
Crossover:
2.1 kHz FIR-X tuning™
Power Output:
Dynamic: 1000W (LF: 800W / HF: 200W)
Continuous: 465W (LF: 400W / HF: 65W)
Maximum SPL:
132 dB (1 m)

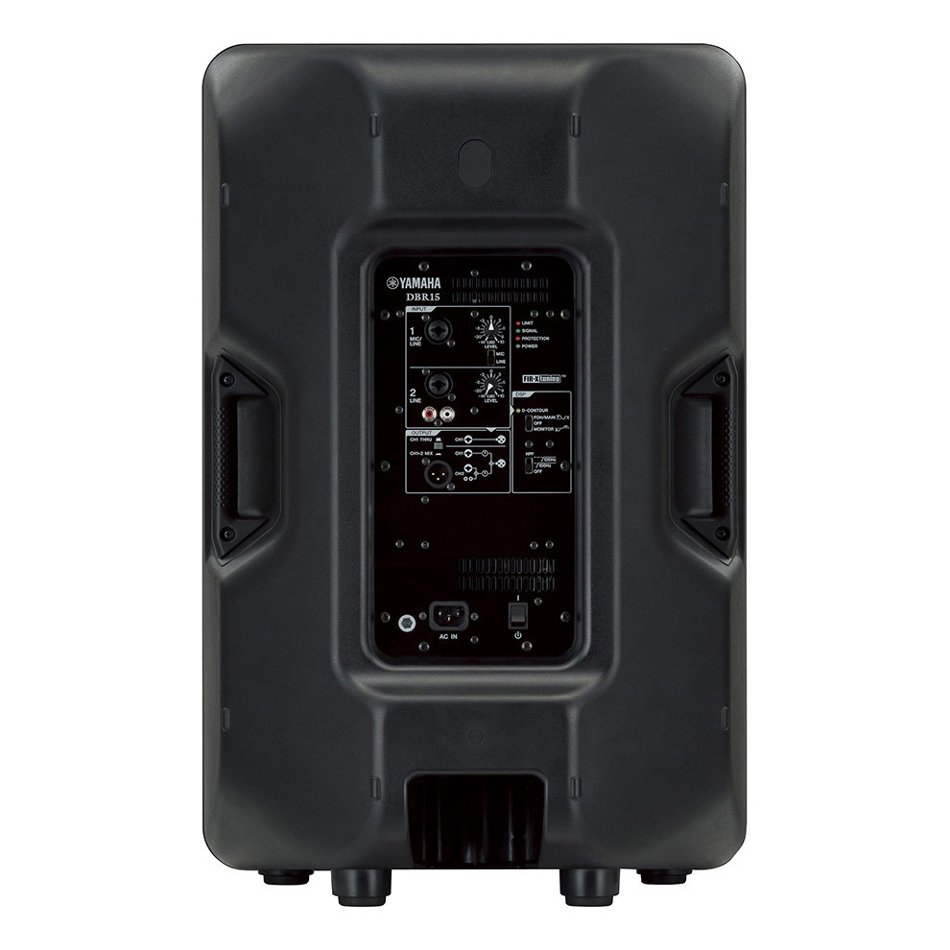

Inputs:
CH1: XLR/TRS Combo
CH2: XLR/TRS Combo + RCA (stereo)
Output:
XLR (CH1 Thru or CH1 + CH2 Mix)
Processors:
D-CONTOUR (FOH/Main, Monitor, Off)
Cooling:
Fan (4-speed)
Cabinet:
Black plastic with steel grille
Mounting Options:
35 mm pole socket, M8 rigging points
Dimensions (W x H x D):
17.9" x 27.6" x 14.9" (455 x 700 x 378 mm)
Weight:
42.6 lbs (19.3 kg)
