Product Description

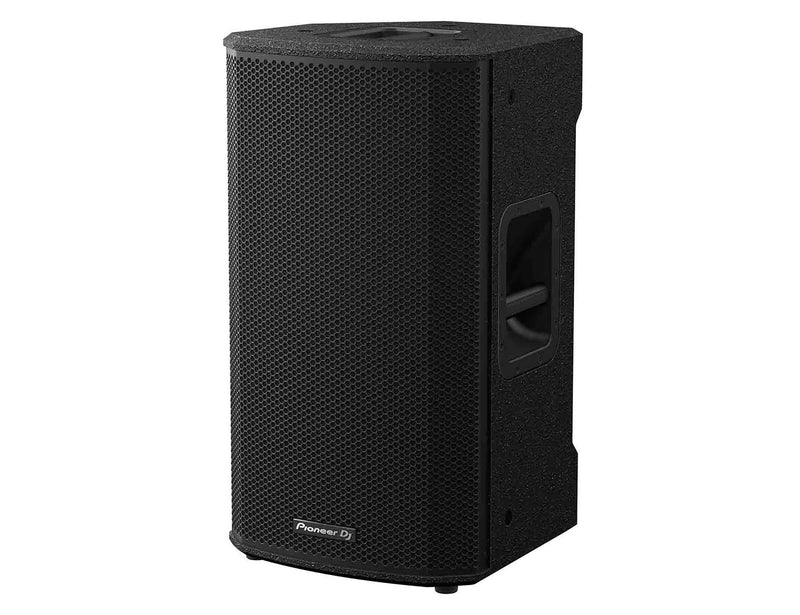

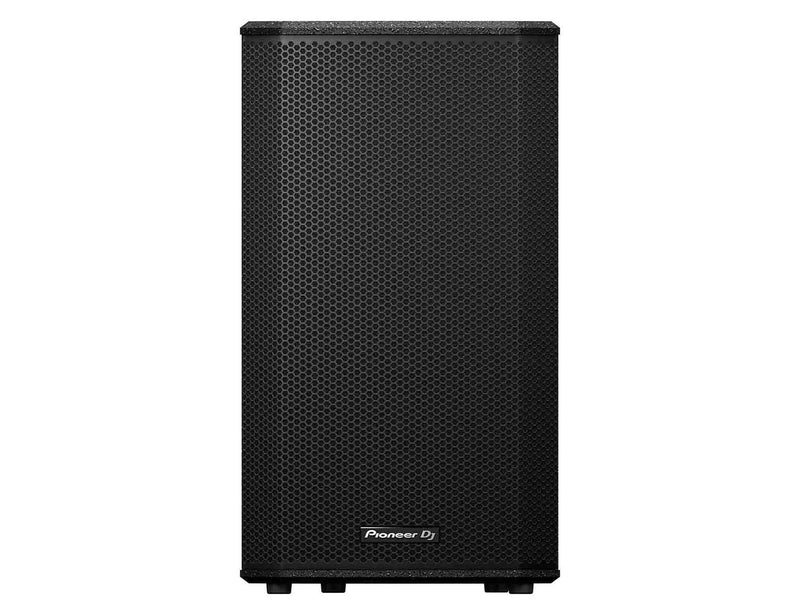

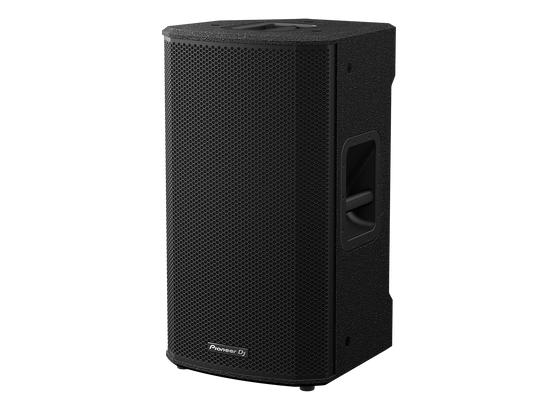

The Pioneer DJ XPRS122 is a professional 12-inch active 2-way loudspeaker built for DJs, live performers, production companies, venues, and houses of worship that require powerful, full-range sound with reliable performance. As part of the XPRS2 Series, the XPRS122 combines 2000W peak Class D amplification, advanced DSP tuning, and a rugged plywood enclosure designed for demanding indoor and outdoor environments.
Delivering a maximum SPL of 131 dB and a frequency response of 48 Hz – 20 kHz, the XPRS122 provides deep, controlled low-end, clear mids, and crisp high frequencies—making it ideal for live DJ sets, concerts, speech applications, and challenging acoustic spaces.
The speaker features a 12-inch ferrite low-frequency cone driver with a 3-inch voice coil paired with a 1-inch exit compression driver with a 1.75-inch voice coil, crossed over at 2 kHz for balanced and accurate sound reproduction across mid to large audiences.

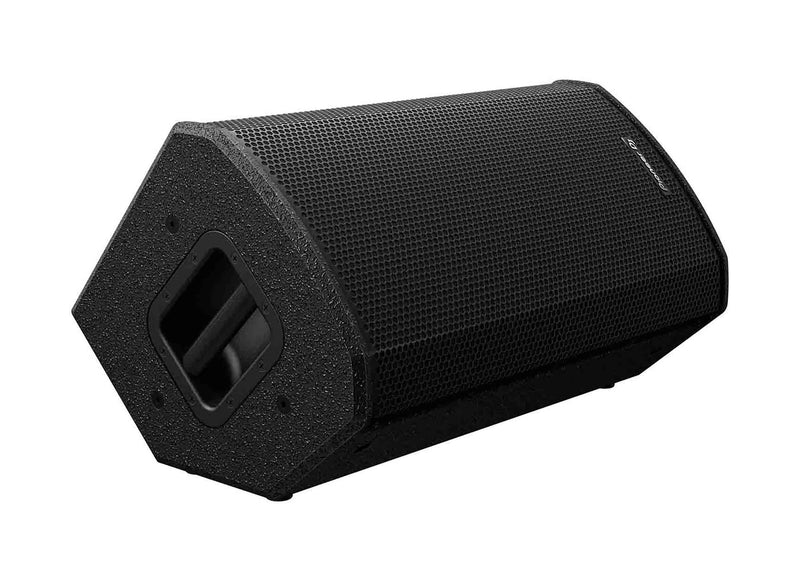

Housed in a durable TSCA-compliant plywood cabinet, the XPRS122 includes two integrated metal handles (side and top) for easy transport, rubber isolation feet for shock absorption, a 35 mm pole mount socket, and 10 x M10 rigging points for flexible installation options.
Advanced onboard DSP includes four factory preset modes—Live, Music, Speech, and Monitor—plus 16 customizable user presets that can be named and saved to optimize EQ settings for different venues and events. A built-in 4-band EQ and subwoofer high-pass selection allow precise system tuning.
With versatile connectivity options including combo MIC/LINE inputs, HI-Z/LINE input, 3.5 mm stereo mini input, and XLR mix output, the XPRS122 integrates seamlessly into professional PA systems.
The Pioneer DJ XPRS122 delivers powerful output, rugged reliability, and flexible DSP control—perfect for professional live sound applications.
Features
-
12-inch 2-way active loudspeaker
-
2000W peak Class D amplification
-
131 dB maximum SPL
-
Frequency response: 48 Hz – 20 kHz
-
12" ferrite LF cone driver with 3" voice coil
-
1" exit compression driver with 1.75" voice coil
-
4 Factory DSP Presets: Live, Music, Speech, Monitor
-
16 customizable user DSP presets
-
4-band EQ with subwoofer high-pass selection
-
Durable TSCA plywood cabinet
-
Black protective finish with rubber feet
-

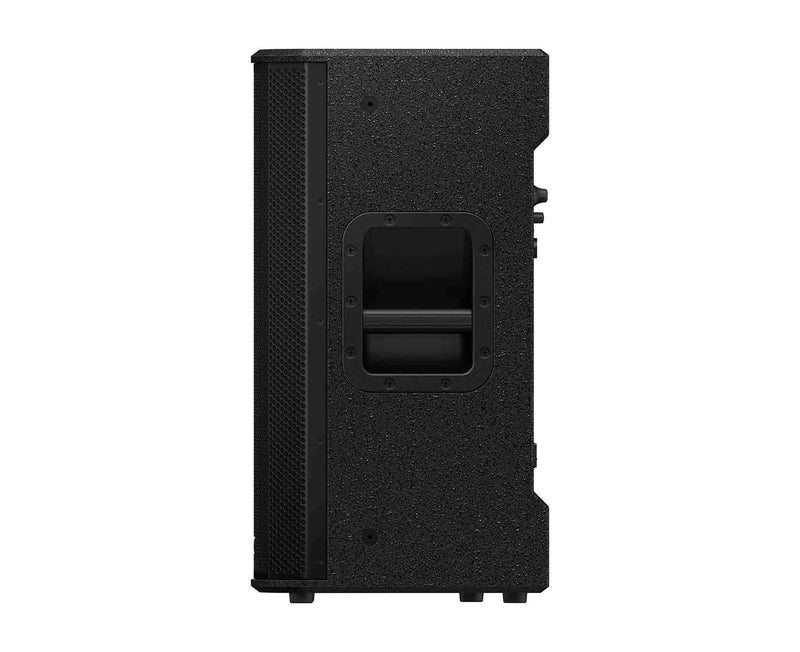

Two metal handles (side and top)
-
35 mm pole mount socket
-
10 x M10 rigging points
-
Thermal limiting, digital limiter, and digital compressor protection
Specifications
General
-
Type: 12" 2-way active loudspeaker
-
Amplifier: Class D
-
Amplifier Output: 2000W Peak
-
Maximum SPL: 131 dB
-
Frequency Range: 48 Hz – 20,000 Hz
-
Crossover Frequency: 2 kHz
Power
-
Power Supply: 110–240V AC, 50/60 Hz
-
Power Consumption: 800W

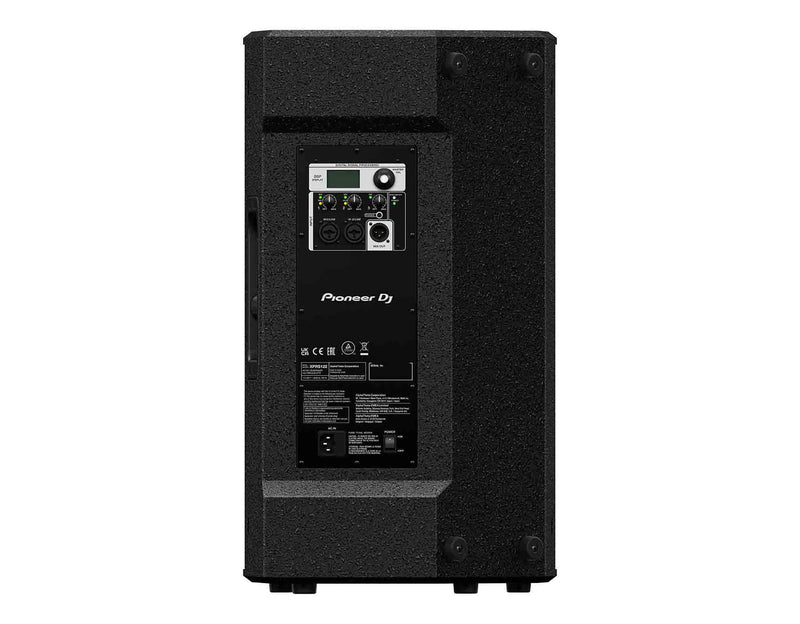

Inputs
-
MIC/LINE x1 (Combo XLR/TRS)
-
HI-Z/LINE x1 (Combo XLR/TRS)
-
3.5 mm stereo mini jack x1 (Unbalanced)
Outputs
-
MIX Out (XLR)
Drivers
-
LF Driver: 12" ferrite cone
-
HF Driver: 1.75" compression driver
Physical Dimensions
-
Width: 362.7 mm (14.28 in)
-
Depth: 350 mm (13.78 in)
-
Height: 637 mm (25.08 in)
-
Weight: 20.2 kg (44.53 lbs)
Construction
-
Enclosure: TSCA Plywood
-
Finish: Black paint
-
Handle: 2 metal handles (side and top)
-
Pole Mount: 35 mm socket
-
Rigging Points: 10 x M10
Protection
-
Thermal limiting
-
Digital limiter
-
Digital compressor
-
Short circuit protection
-
AC mains overcurrent protection
-
AC mains overvoltage protection
Included Accessories
-
Pioneer DJ XPRS122 (single unit; not sold as a pair)
-
Power cord
-
Quick start guide
-
Important safety precautions document
