Product Description
The Pioneer DJ XPRS1182ST is a high-output 18-inch active subwoofer engineered to deliver deep, powerful, and accurate low-frequency reinforcement for professional DJs, live performers, production companies, and venues. As part of the XPRS2 Series, this subwoofer combines 4000W peak Class D amplification, advanced DSP control, and a rugged plywood enclosure built for demanding indoor and outdoor applications.
At its core is an 18-inch ferrite low-frequency driver with a 3-inch long-excursion voice coil, designed to move significant air volume while maintaining tight and controlled bass response. With a frequency response of 40 Hz – 120 Hz and a maximum SPL of 130 dB, the XPRS1182ST delivers impactful low-end performance suitable for large venues, live concerts, and high-energy DJ events.

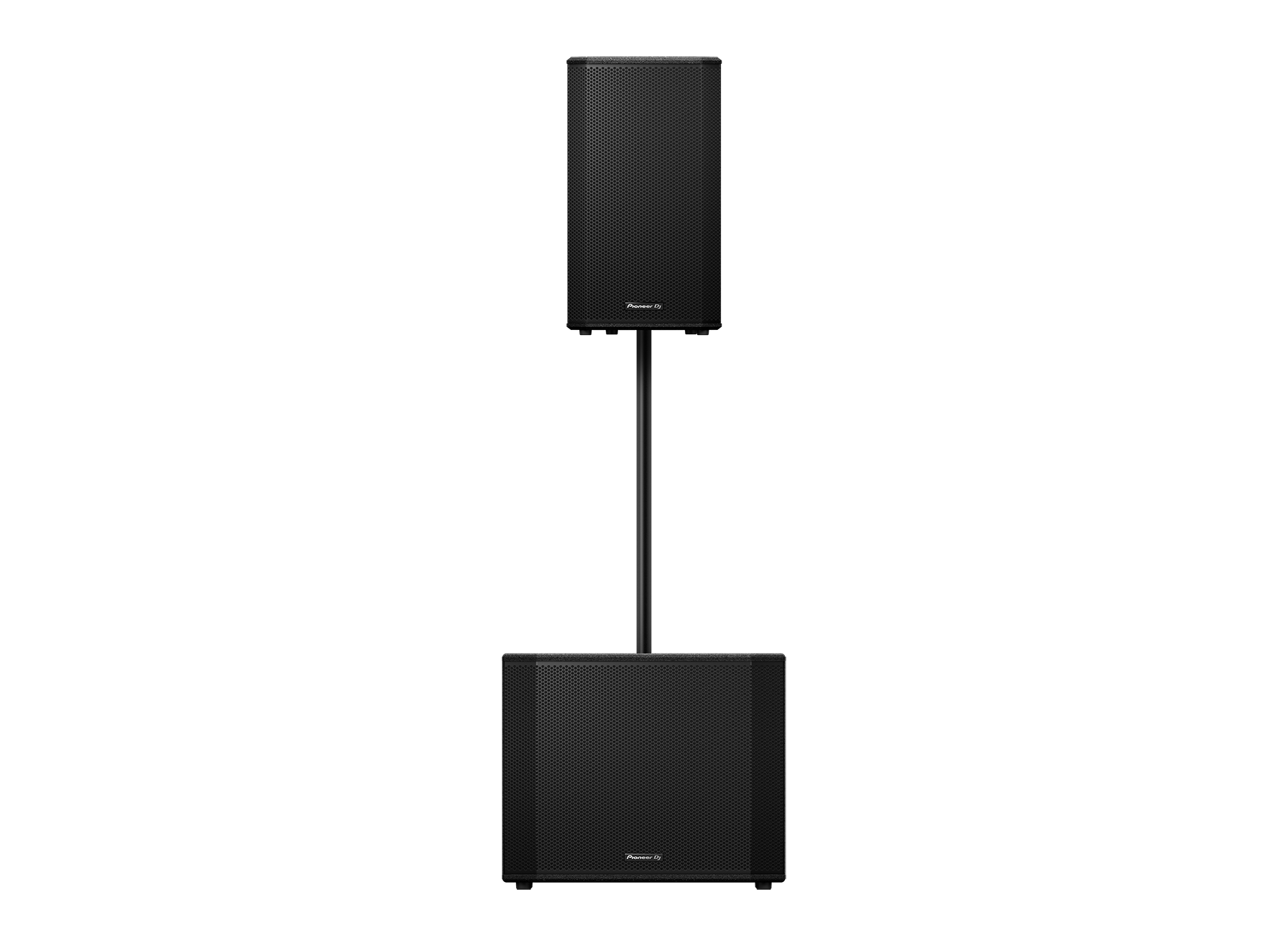

The durable TSCA-compliant plywood cabinet features a sleek black protective finish, rubber isolation feet for vibration control, and dual side handles for easier transport. An integrated M20 threaded pole mount socket provides added stability when mounting full-range speakers above the subwoofer.
Built-in DSP provides three selectable preset modes—Boost, Extended LF, and Normal—allowing users to tailor the bass response for different environments and musical styles. Additional controls include selectable low-pass filter (LPF) and polarity adjustment for proper system alignment and seamless integration with full-range speakers.
With combo XLR/TRS inputs and XLR outputs, the XPRS1182ST easily integrates into professional PA systems, supporting stereo or mono configurations.
The Pioneer DJ XPRS1182ST offers powerful, precise bass performance in a rugged and road-ready design ideal for professional sound reinforcement.
Features
-
18-inch active subwoofer
-
4000W peak Class D amplification
-
130 dB maximum SPL
-
Frequency response: 40 Hz – 120 Hz
-
18" ferrite LF cone driver with 3" long-excursion voice coil
-
3 DSP preset modes: Boost, Extended LF, Normal
-
Selectable Low-Pass Filter (LPF)
-
Polarity switch for system alignment
-
Durable TSCA plywood cabinet
-
Black protective finish with rubber isolation feet
-
Dual side carry handles
-
M20 threaded pole mount socket
-
Thermal limiting and digital compressor protection
Specifications
General
-
Type: 18" active subwoofer
-
Amplifier: Class D
-
Amplifier Output: 4000W Peak
-
Maximum SPL: 130 dB
-
Frequency Range: 40 Hz – 120 Hz
Power
-
Power Supply: 110–240V AC, 50/60 Hz
-
Power Consumption: 800W
DSP
-
EQ Mode Select (3 DSP preset modes)
-
LPF control
-
Polarity selection
Inputs
-
Left Mono (Combo XLR/TRS)
-
Right (Combo XLR/TRS)
Outputs
-
Left Mono (XLR)
-
Right (XLR)
Driver
-
18" ferrite LF cone driver
-
3" voice coil
Physical Dimensions
-
Width: 661 mm (26.02 in)
-
Depth: 536.5 mm (21.13 in)
-
Height: 535 mm (21.06 in)
-
Weight: 32.6 kg (71.87 lbs)
Construction
-
Enclosure: TSCA Plywood
-
Finish: Black paint
-
Handles: 2 (one on each side)
-
Pole Mount: M20 threaded socket
Protection
-
Thermal limiting
-
Digital compressor
-
Short circuit protection
-
AC mains overcurrent protection
-
AC mains overvoltage protection
Included Accessories
-
Pioneer DJ XPRS1182ST (single unit; not sold as a pair)
-
Power cord
-
Quick start guide
-
Important safety precautions document
