Product Description

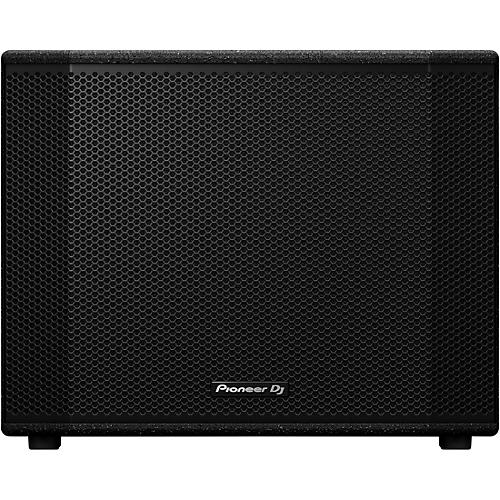

The Pioneer DJ XPRS1152ST is a powerful 15-inch active subwoofer designed to deliver deep, accurate, and high-impact low-frequency performance for DJs, live performers, venues, and mobile sound professionals. As part of the XPRS2 Series, this subwoofer combines 4000W peak Class D amplification, advanced DSP control, and a rugged plywood enclosure for reliable performance in demanding environments.
Equipped with a 15-inch ferrite low-frequency driver featuring a 3-inch long-excursion voice coil, the XPRS1152ST produces tight, punchy bass with exceptional clarity and control. With a frequency response of 45 Hz – 120 Hz and a maximum SPL of 129 dB, this subwoofer delivers powerful low-end reinforcement ideal for live DJ sets, concerts, and event production.

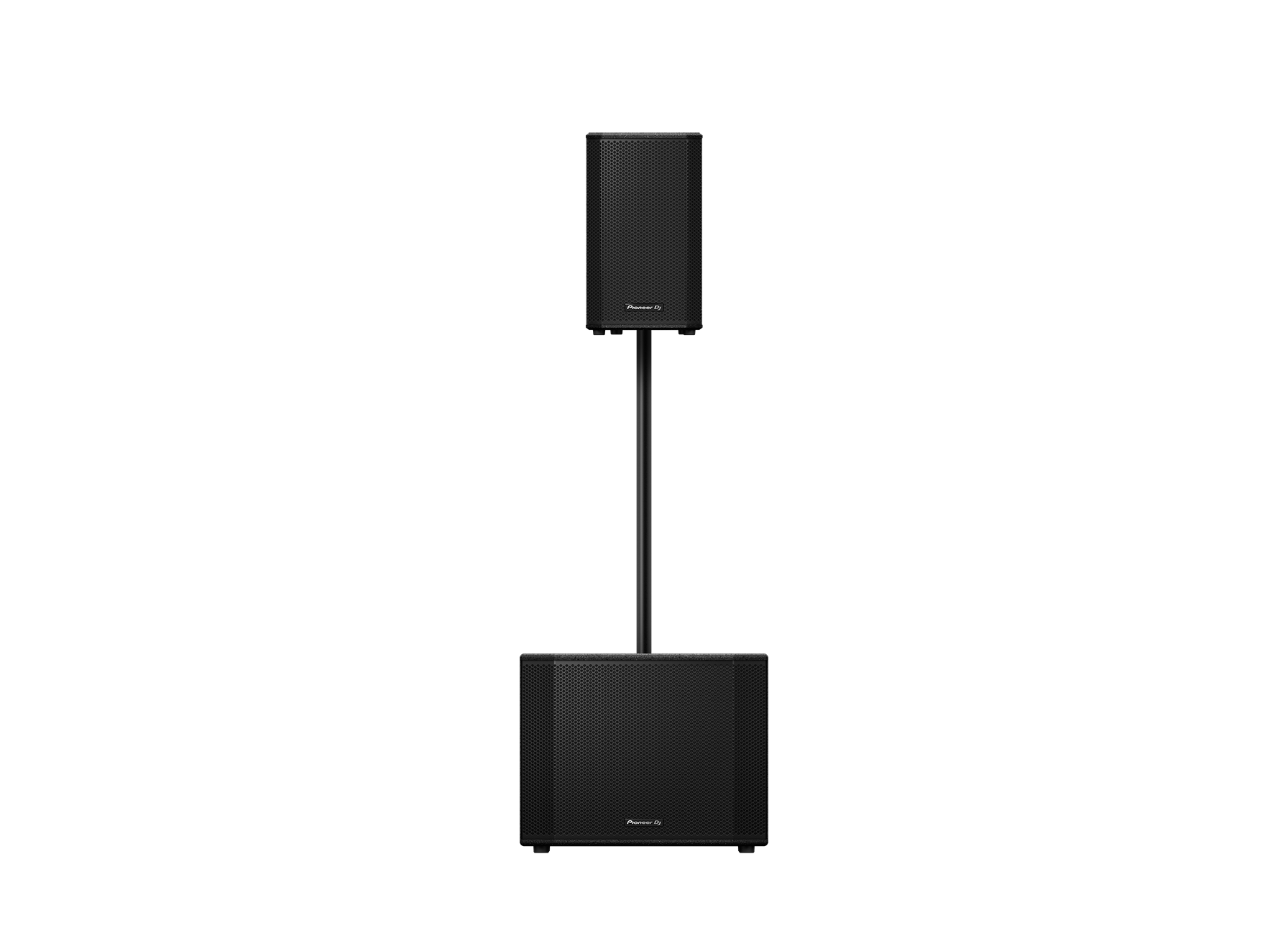

Designed for portability without sacrificing performance, the XPRS1152ST features a durable black-painted TSCA-compliant plywood cabinet, integrated handles for easy transport, and rubber isolation feet to reduce vibration and surface resonance. An M20 threaded pole mount socket provides added stability when mounting full-range speakers on top.
The onboard DSP offers three preset modes—Boost, Extended LF, and Normal—allowing you to tailor bass response to different venues and applications. Additional controls include selectable low-pass filter (LPF) and polarity adjustment for seamless integration into any PA system.

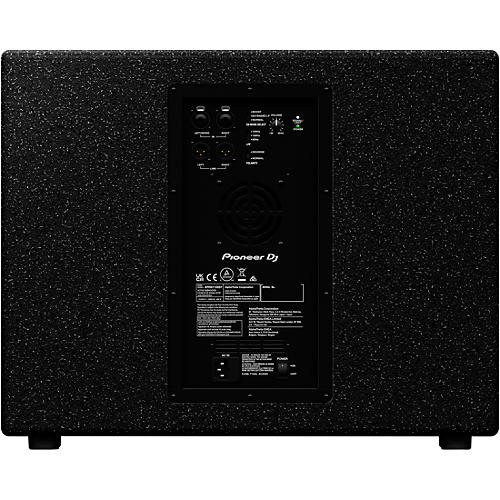

With combo XLR/TRS inputs and XLR outputs, the XPRS1152ST integrates easily into professional sound systems, providing flexible routing options for stereo or mono configurations.
The Pioneer DJ XPRS1152ST delivers powerful, reliable low-frequency reinforcement in a portable and road-ready design.
Features
-
15-inch active subwoofer
-
4000W peak Class D amplification
-
129 dB maximum SPL
-
Frequency response: 45 Hz – 120 Hz
-
15" ferrite LF driver with 3" long-excursion voice coil
-
3 DSP preset modes: Boost, Extended LF, Normal
-
Selectable Low-Pass Filter (LPF)
-
Polarity switch for system alignment
-
Durable TSCA plywood cabinet
-
Black protective finish with rubber feet
-
Integrated carry handles
-
M20 threaded pole-mount socket
-
Thermal limiting and digital compressor protection
Specifications
Amplifier
-
Class D
-
4000W Peak Output
Maximum SPL
-
129 dB
Frequency Response
-
45 Hz – 120 Hz
Power
-
Power Supply: 110–240V AC, 50/60 Hz
-
Power Consumption: 800W
DSP
-
EQ Mode Select (3 DSP preset modes)
-
LPF control
-
Polarity selection
Inputs
-
Left Mono (Combo XLR/TRS)
-
Right (Combo XLR/TRS)
Outputs
-
Left Mono (XLR)
-
Right (XLR)
Driver
-
15" ferrite LF cone driver
-
3" voice coil
Physical Dimensions
-
Width: 580 mm (22.83 in)
-
Depth: 503 mm (19.80 in)
-
Height: 450 mm (17.72 in)
-
Weight: 26.6 kg (58.64 lbs)
Construction
-
Enclosure: TSCA Plywood
-
Finish: Black paint
-
Rubber isolation feet
-
M20 threaded pole mount
Protection
-
Thermal limiting
-
Digital compressor
-
Short circuit protection
-
AC mains overcurrent protection
-
AC mains overvoltage protection
Included Accessories
-
Pioneer DJ XPRS1152ST (single unit; not sold as a pair)
-
Power cord
-
Quick start guide
-
Important safety precautions document
