Product Description

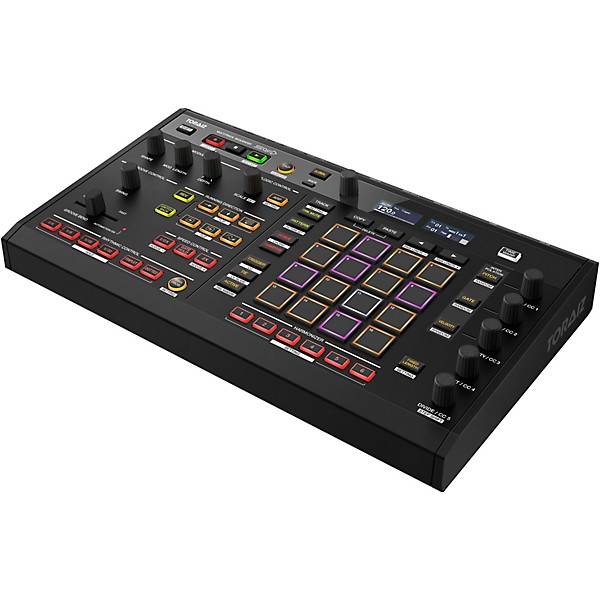

The Pioneer TORAIZ SQUID is a revolutionary USB/MIDI/CV/DIN multitrack sequencer designed for studio and live performance. With 16 tracks, 64 patterns per track, 64 steps per track, and up to 8 notes per step, SQUID gives producers, DJs, and electronic musicians complete control over complex sequences. Its 16 multicolor LED pads, Groove Bend, Running Direction, Speed Modulation, and Time Warp features allow you to craft intricate rhythms, evolving phrases, and expressive grooves in real time.
Connect SQUID to your DAW, modular synths, vintage drum machines, or TORAIZ instruments via USB, MIDI, CV/GATE, and DIN SYNC, and integrate it seamlessly into any setup. Intuitive performance features such as Interpolation, Harmonizer, and Scale mode let you create melodies, chords, and dynamic sequences effortlessly. With the dedicated SQUID Manager software, you can import, export, and back up patterns between your computer and the hardware.
Whether you’re performing live or producing in the studio, SQUID turns inspiration into action with unmatched versatility and workflow efficiency.
Features:
-
16 Tracks: Simultaneously control multiple instruments or sounds.
-

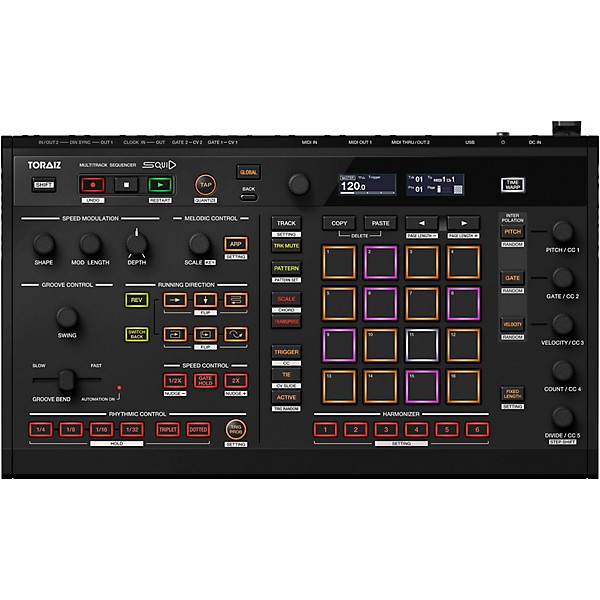

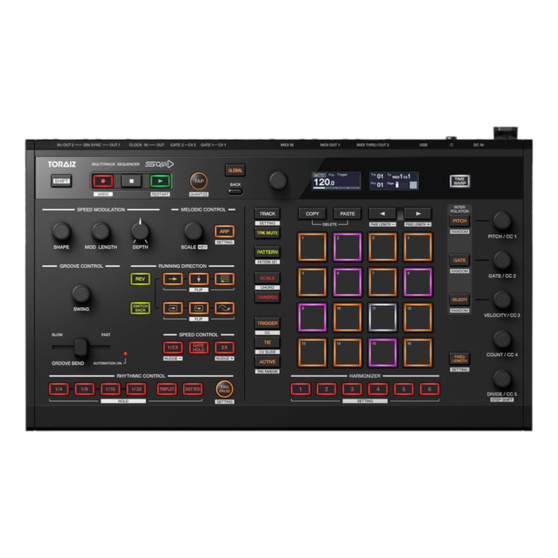

16 Multicolor LED Pads: Step record, transpose, or perform scales with velocity-sensitive, high-precision pads.
-
64 Patterns Per Track & 64 Steps Per Track: Build dynamic and complex arrangements.
-
Up to 8 Notes Per Step (Polyphony): Layer chords and create rich sequences.
-
Groove Bend: Change trigger timing in real-time for expressive grooves.
-
Speed Modulation: Fluctuate sequence playback speed with six waveform shapes.
-
Running Direction: Create 48 unique phrase variations by altering playback direction.
-
Time Warp: Audition and save phrases created during experimentation.
-
Interpolation: Automatically generate step pitch, gate, and velocity between start and end points.
-
Harmonizer: Easily create evolving chords and record real-time performances.
-

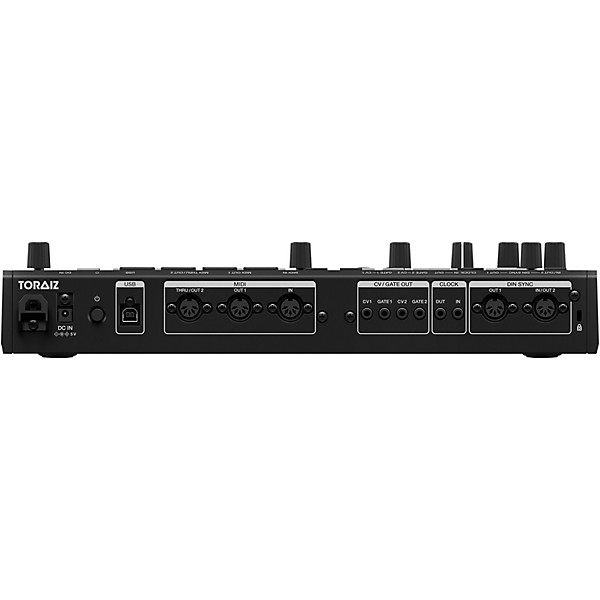

Multiple Inputs/Outputs: USB B, MIDI In/Out/Thru, CV/GATE outputs, CLOCK In/Out, DIN SYNC In/Out.
-
SQUID Manager Software: Import/export sequence patterns to and from PC/Mac.
Specifications:
-
Maximum Tracks: 16
-
Maximum Patterns Per Track: 64
-
Maximum Steps Per Track: 64
-
Maximum Notes Per Step (Polyphony): 8
-
MIDI: In/Out/Thru
-
USB: USB Type B
-
CV OUT 1 & 2: V/Oct, Hz/V
-
GATE OUT 1 & 2: V-Trigger, S-Trigger
-
CLOCK IN: Step, 1, 2, 4, 24, 48 ppqn, Gate
-
CLOCK OUT: Step, 1, 2, 4, 24, 48 ppqn
-
Dimensions (W × D × H): 14.8" × 8.8" × 2.8"
-
Weight: 4.2 lb
