Product Description

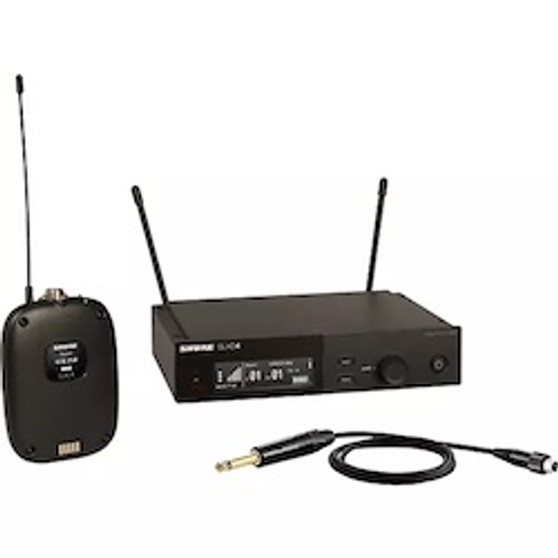

Shure SLXD14 Combo System with SLXD1 Bodypack and SLXD4 Receiver Band H55
\n
\n
\nSLX® Wireless Systems are powerful wireless tools that can be set up quickly and used confidently by installers and working bands. Features include auto frequency scan with transmitter setup, exceptional wireless clarity, and Shure patented Audio Reference Companding.
\nIncludes WL93 lavalier microphone, SLX1 bodypack transmitter, SLX4 receiver, tie clip, rackmount kit, two 1/4 wave antennas, power supply, 2 AA batteries, protective bumpers with 8 screws, vinyl bag, and user guide. \n \n \nConsumer Alert:
\nMost users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones. \n
\n
\nFeatures
\n-
\n
- 1 - rackmount kit \n
- 2 - 1/4 wave antennas \n
- 1 - power supply \n
- 2 - AA battery \n
- 1 - vinyl bag \n
- protective bumpers with 8 screws \n
Specifications
\n
\n
\nSLX Working Range:
\n
\n-
\n
- Line of Sight: \n
- 100 m (300 ft) \n
- Note: Actual range depends on RF signal absorption,reflection and interference. \n
-
\n
- 45–15000 Hz \n
- Note: Dependent on microphone type \n
-
\n
- Ref. ±38 kHz deviation with 1 kHz tone \n
- <0.5%, typical \n
-
\n
- >100 dB, A-weighted \n
-
\n
- -18°C (0°F) to +50°C (122°F) \n
- Note: Battery characteristics may limit this range. \n
-
\n
- Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. \n
-
\n
- Gain position \n
- mic: −10 dBV maximum \n
- 0dB: +10 dBV maximum \n
- –10dB: +20 dBV maximum \n
-
\n
- 30 dB \n
-
\n
- 1 MΩ \n
-
\n
- 10–30 mW \n
- varies by region \n
-
\n
- TA4M: \n
- 1: ground (cable shield) \n
- 2: + 5 V Bias \n
- 3: audio \n
- 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats) \n
-
\n
- 108mm x 64mm x 19mm (H x W x D) \n
-
\n
- 81 g (3 oz.), without batteries \n
-
\n
- galvanized steel \n
-
\n
- 2 "AA" size alkaline or rechargeable batteries \n
-
\n
- up to 8 hours (alkaline) \n
-
\n
- 42mm X 197mm X 134mm (H x W x D) Weight: \n
- 816 g (1 lb 13oz.) \n
-
\n
- galvanized steel \n
-
\n
- -105 dBm for 12 dB SINAD, typical \n
-
\n
- 12–18 V DC @ 150 mA, supplied by external power supply (tip positive) \n
-
\n
- Impedance balanced \n
-
\n
- Ref. ±38 kHz deviation with 1 kHz tone \n
-
\n
- –13 dBV (into 600 Ωload) \n
- 6.35 mm (1/4") \n
- connector: –2 dBV (into 3 kΩ load) \n
-
\n
- XLR connector: 200 Ω \n
- 6.35 mm (1/4") \n
-
\n
- XLR connector: 1=ground, 2=audio, \n
- 3=no audio \n
-
\n
- Tip=audio, Ring=no audio, Sleeve=ground Image Rejection \n
- >70 dB, typical Volume Adjustment Range \n
- 0 dB to -25 dB " \n
Pro Coverage
\n
\n
\nManufacturer's Warranty
\nOne year warranty on wireless mics, mixers, and circuitry products.
\n2 year warranty on wired mics.
\nWarranty terms vary. Check with manufacturer for specific product warranty.
