Product Description
\n

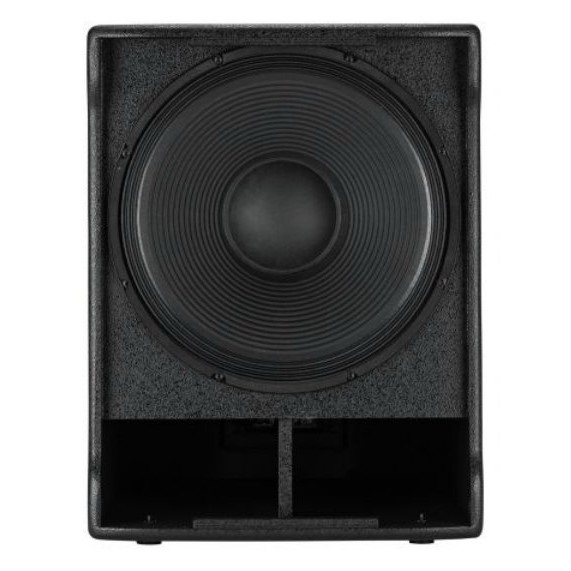

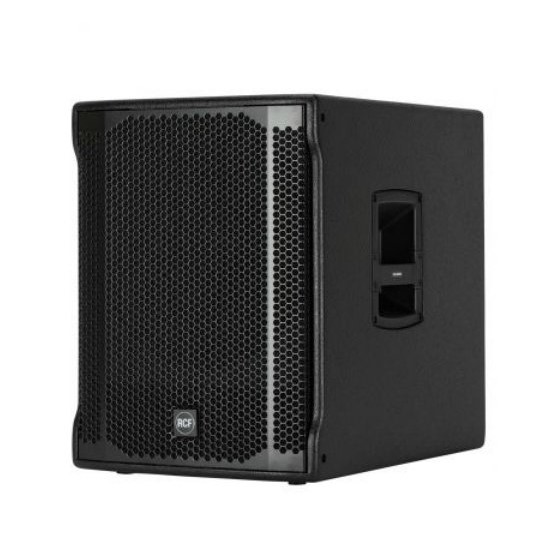

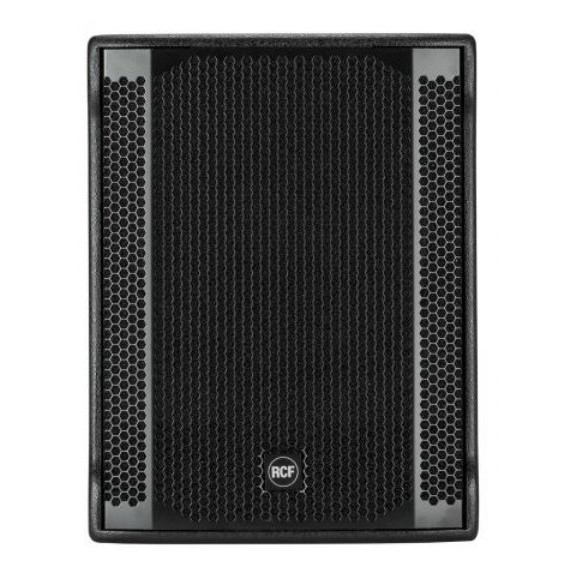

\nThe RCF SUB 705-AS II is a compact and powerful bass reflex subwoofer. It is equipped with a 15” high power woofer with 3” voice coil, powered by a 1400 Watt digital amplifier in a robust plywood housing with deep and punchy tuning for a powerful bass. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency, it can be easily and quickly set up with a satellite speaker. The SUB 705-AS II easily combines with 12” and 15”, ideal for RCF ART and D-Line Series.
\n
Applications:
\n-
\n
- Club sound, DJs \n
- Portable PA \n
- Rental \n
- Small theatre \n
Features:
\n-
\n
- 1400 Watt Digital Amplifier \n
- 15" Woofer, bass reflex housing \n
- Stereo crossover \n
- Switchable crossover frequencies \n
- Phase-reverse switch \n
- Electronic equalization, soft limiter and protection \n

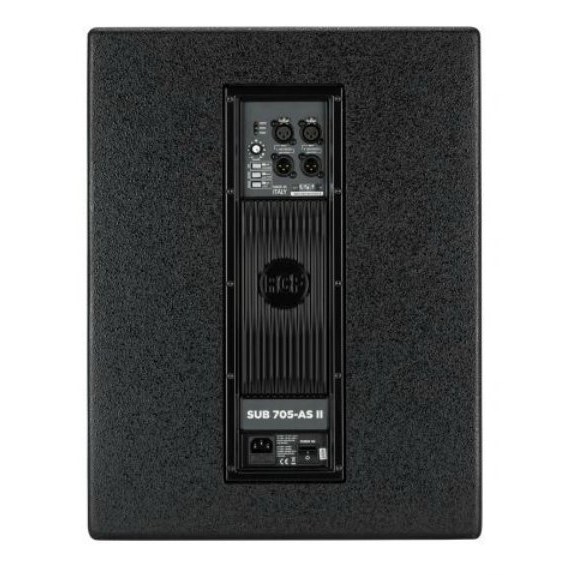

- Stereo XLR input, Stereo XLR signal output \n
Specifications:
\n-
\n
- Acoustic Specifications
\n
-
\n
- Frequency Response (@ -3dB): 40Hz - 120Hz \n
- Max SPL: 131dB \n
- Woofer: 15", 3.0" v.c. \n
\n - Input/Output Section
\n
-
\n
- Input connectors: Stereo XLR \n
- Output connectors: Stereo XLR \n
- Input sensitivity: -2dBu / +4dBu \n
\n - Processor Section
\n
-
\n
- Crossover frequencies: 80-110Hz \n
- Protections: thermal, rms \n
- Limiter: soft limiter \n
- Controls: Volume, EQ, phase, X-over \n
\n - Amplifier Specifications
\n
-
\n
- Total power: 1400W PEAK
\n
-
\n
- Low frequencies: 1400W PEAK \n
\n - Total power: 700W RMS
\n
-
\n
- Low frequencies: 700W RMS \n
\n - Cooling: convection \n
- Connections: VDE connector \n
\n - Total power: 1400W PEAK
\n
- Cabinet
\n
-
\n
- Cabinet Material: Baltic birch plywood \n
- Hardware: Pole mount \n
- Handles: 2 side \n
- Pole Mount/Cap: yes \n
- Grille: Steel \n
- Color: Black \n
\n - Physical Specifications
\n
-
\n
- Height: 568/22.36 mm/inch \n
- Width: 430/16.93 mm/inch \n
- Depth: 595/23.43 mm/inch \n
- Net Weight: 28.0/50.70 kg/lbs \n
\n
