Product Description

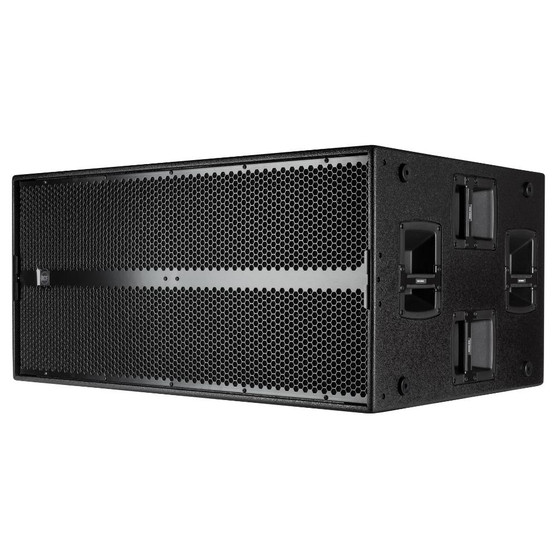

The RCF SUB 9006-AS Dual 18" Powered Subwoofer is one of the most powerful and advanced subwoofers available for professional live sound applications. Engineered for high-demand touring, festivals, and large-scale installations, this subwoofer delivers massive low-frequency output with precision, control, and reliability.
Equipped with two hyper-vented 18” neodymium woofers featuring 4.0” inside-outside voice coils, the SUB 9006-AS produces deep, tight bass with exceptional clarity. Its industry-leading 7200W peak Class-D amplifier ensures consistent high-performance output, even under the most demanding conditions.
The integrated DSP section offers full control with selectable presets, adjustable crossover, delay settings, and onboard RDNet compatibility for remote monitoring and system management. Designed for seamless integration, this subwoofer pairs perfectly with RCF HDL50-A and HDL10-A line array systems for powerful, scalable sound reinforcement setups.
Built with a rugged Baltic birch plywood cabinet, the SUB 9006-AS is made to withstand the rigors of touring while maintaining premium acoustic performance.
Features
- Dual 18” high-output powered subwoofer for professional applications
- 7200W peak / 3600W RMS Class-D amplifier
- Two neodymium woofers with 4.0” voice coils
- Maximum SPL of 142 dB for extreme output capability
- Advanced DSP with presets, EQ, delay, and phase control
- RDNet remote monitoring and control compatibility
- Variable low-pass crossover (50–400 Hz) and selectable high-pass filters
- Durable Baltic birch plywood enclosure for touring use
- Designed for seamless integration with RCF HDL50-A and HDL10-A systems
- M20 pole mount and multiple handles for easy setup and transport
Specifications
Acoustical
- Frequency Response: 30 Hz – 400 Hz
- Max SPL: 142 dB
Transducers
- Woofers: 2 × 18” Neodymium
- Voice Coil: 4.0”
Input / Output
- Input Signal: Balanced / Unbalanced
- Input Connectors: XLR, RDNet Ethercon
- Output Connectors: XLR, RDNet Ethercon
- Input Sensitivity: +4 dBu
Processor
- High-Pass Filter: 30 Hz / 40 Hz
- Low-Pass Filter: 50 Hz – 400 Hz (variable)
- Limiter: Fast limiter
- Protections: Thermal, RMS
- Controls: Gain, EQ, Preset, Phase, Delay
- RDNet: Onboard
Power
- Total Power: 7200W Peak / 3600W RMS
- Cooling: Convection / Forced
- Power Connections: Powercon IN/OUT
Physical
- Cabinet: Baltic Birch Plywood
- Handles: 8 Side Handles
- Pole Mount: M20 Thread
- Grille: Steel
- Color: Black
Dimensions & Weight
- Height: 21.97 in (558 mm)
- Width: 46.77 in (1188 mm)
- Depth: 30.91 in (785 mm)
- Weight: 189.6 lbs (86 kg)
Shipping
- Dimensions: 23.62 x 32.87 x 48.43 in
- Shipping Weight: 202.83 lbs (92 kg)
Applications
Ideal for high-demand audio environments:
- Concert touring and large-scale productions
- Festivals and outdoor events
- Nightclubs and large venues
- Installed sound systems
- Line array support systems
FM Electronics is an authorized RCF Dealer
