Product Description
\n

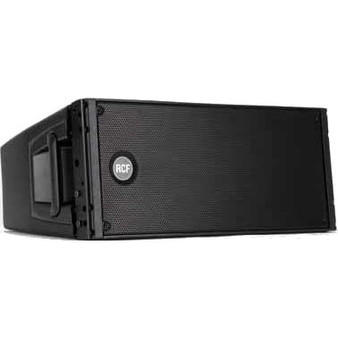

\nWhen line array performance as well as fast and easy set-up is required, RCF's HDL6-A-W is the ideal choice. It features a 1400W 2-channel class-D amplifier for system power, plus powerful onboard DSP (Digital Signal Processing) for sound processing, crossover, phase correction, limiting and protection. It includes state-of-the-art RCF transducers – 2 powerful 6.0" woofers for a solid bass reproduction, along with a high-powered 1.7" voice coil compression driver that's mounted on a precise 100° x 10° waveguide, delivering vocal clarity with high-definition and incredible dynamics. This particular model comes in white, but a black version is also available (HDL6-A - sold separately).
\n
Features
\n-
\n
- 1400W, 2-way amplification \n
- 131dB max SPL \n
- 1.7" voice coil neodymium compression driver \n
- 2x high power neodymium 6.0" woofers \n
- 48kHz, 32-bit floating point DSP processing \n
- Symmetrical design \n
- Extremely low weight \n
- FiRPHASE processing \n
Specifications
\n-
\n
- Acoustic:
\n
-
\n
- Frequency Response: 65Hz - 20000Hz \n
- Max SPL @ 1m: 131dB \n
- Horizontal coverage angle: 100° \n
- Vertical coverage angle: 10° \n
\n - Transducers:
\n
-
\n
- Compression Driver: 1.0'' neo, 1.75'' v.c \n
- Woofer: 2x 6.0'' neo, 2.0'' v.c \n
\n - Input/Output (I/O) section:
\n
-
\n
- Input signal: balanced/unbalanced \n
- Input connectors: XLR \n
- Output connectors: XLR \n
- Input sensitivity: +4dBu \n
\n - DSP section:
\n
-
\n
- Crossover frequencies: 900Hz \n
- Protections: Thermal, RMS \n
- Limiter: Soft Limiter \n
- Controls: HF correction \n
\n - Power section:
\n
-
\n
- Total Power: 1400W Peak, 700 W RMS \n
- High frequencies: 400W Peak, 200 W RMS \n
- Low frequencies: 1000W Peak, 500 W RMS \n
- Cooling: Convection \n
- Connections: powerCON® I/O \n
- Standard compliance \n
- CE marking: Yes \n
\n - Physical:
\n
-
\n
- Cabinet/Case Material: PP Composite \n
- Hardware: Array fittings \n
- Handles: 2, Back \n
- Grille: Steel \n
- Color: White \n
- Product dimensions (H x W x D): 9.33" x 18.5" x 14.84" (237 x 470 x 377mm) \n
- Product weight: 25.57lbs. (11.6kg) \n
- Shipping Package dimensions (H x W x D): 10.24" x 21.65" x 16.73" (260 x 550 x 425mm) \n
- Shipping Package weight: 28.66lbs. (13kg) \n
