Product Description

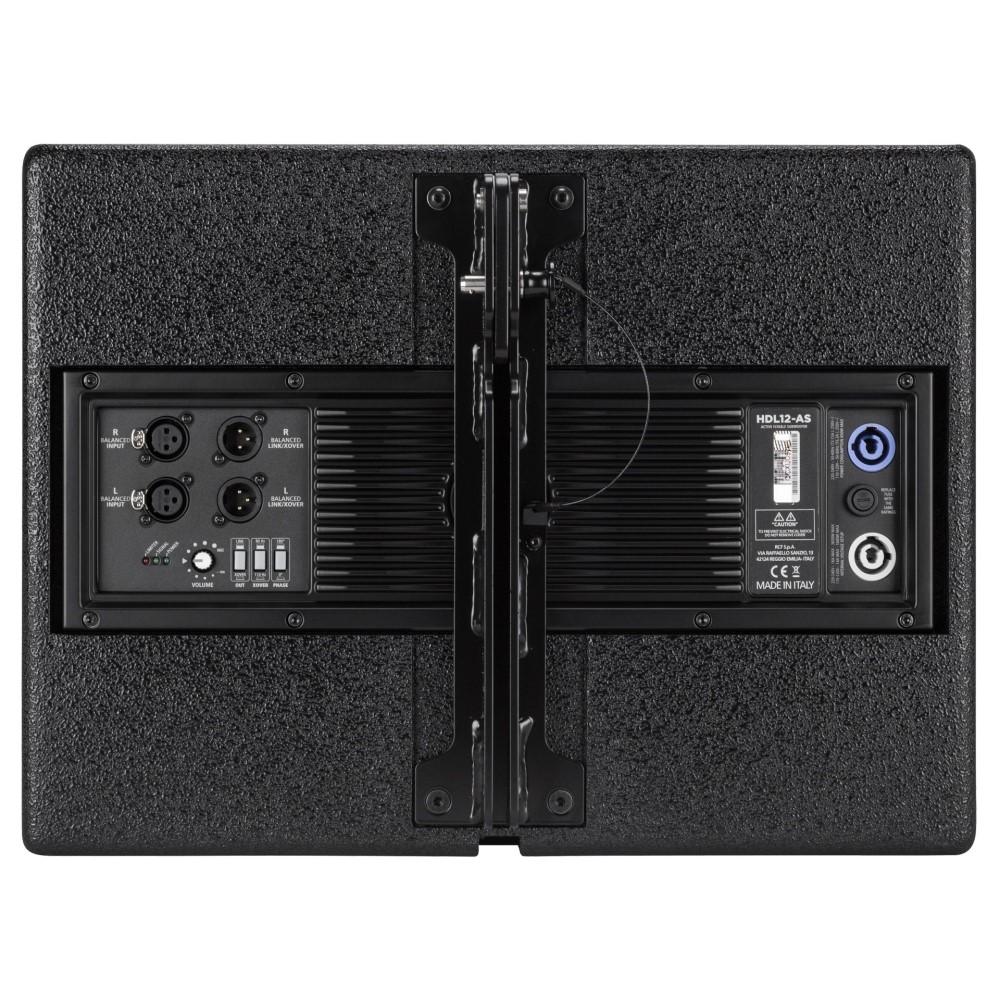

The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
Features:
- 1400 Watt Peak power - 700 Watt RMS
- 131dB max SPL
- 40Hz - 120Hz frequency response
- 1 x 12" Woofer
- Stereo crossover
- Switchable crossover frequencies
- Designed to compliment the HDL 6-A speaker system
- Polarity reverse switch
Specifications:
- Acoustic
- Frequency Response: 40Hz - 120Hz
- Transducers: Woofer: 12'', 3.0'' v.c
- Input Signal: bal / unbal
- Input/Output section
- Input Connectors: XLR
- Output Connectors: XLR
- Input Sensitivity: -2dBu / +4dBu
- Total Power: 1400W Peak, 70 W RMS
- Low Frequencies: 1400W Peak, 700W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
- Standard compliance: CE Marking: YesPower section
- Cabinet/Case Material: Baltic birch plywood
- Hardware: Array fittings, pole
- Handles: 2 side
- Grille: Steel
- Color: Black
-
- Height: 379mm / 14.92 inches
- Width: 470mm / 18.5 inches
- Depth: 508mm / 20 inches
- Weight: 25kg / 55.12lbsSize
-
- Shipping Information
-
- Package Height 435mm / 17.13 inches
- Package Width: 560mm / 22.05 inches
- Package Depth: 520mm / 20.47 inches
- Package Weight: 28kg / 61.73lbsPhysical specifications
