Product Description
\n
\nThe very compact size, no compromise transducers and a unique composite cabinet design make the RCF HDL 10-A-W the perfect tool in many situations, and is ideal in live sound reinforcement and reliable installed situations.
\n
\nThe HDL 10-A-W is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2-way digital amplifier, sound is processed from a powerful DSP.
\n
RCF HDL 10-A-W Applications:
\n-
\n
- Live Sound \n
- Rentals \n
- Portable PA, clubs, ballrooms, live theatre \n
- House of worship \n
- Theme parks \n
- Music playback and sound reinforcement in small and mid-size venues \n
- Corporate A/V professionals and sound system hire companies \n
RCF HDL 10-A-W Features:
\n-
\n
- 1400 Watt Peak power - 700 Watt RMS \n
- 133 dB max SPL \n
- 65 Hz 20 kHz frequency response \n

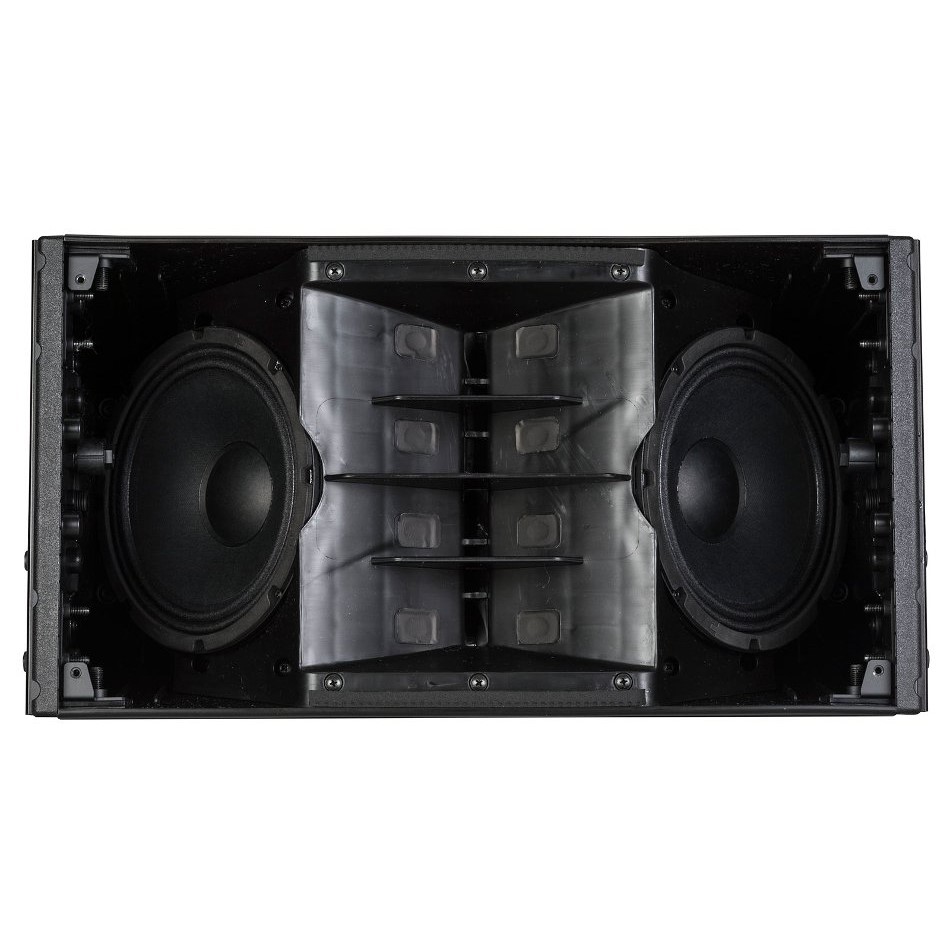

- 2 x 8" Woofers \n
- 1 x 2" Compression Driver \n
- DSP controlled Input section with selectable presets \n
- Tour grade safe and solid variable mechanics \n
- Composite PP enclosure structurally wooden reinforced \n
RCF HDL 10-A-W Specifications:
\n-
\n
- Frequency Response -3 dB: 65 Hz - 20 kHz \n
- Max SPL: 133 dB \n
- Horizontal Coverage Angle: 100° \n
- Vertical Coverage Angle: 15° \n
- Compression Driver: 2", 2.5" v.c. \n
- Woofer: 2 x 8", 2.0" v.c. \n
- Input/Output Section:
\n
-
\n
- Input Signal: Bal/unbal \n
- Input Connectors: XLR \n
- Output Connectors: XLR \n
- Input Sensitivity: -2 dBu / +4 dBu \n
\n - Processor Section:
\n
-
\n
- Crossover Frequencies: 800 Hz \n
- Protections: Thermal, RMS \n
- Limiter: Soft limiter \n

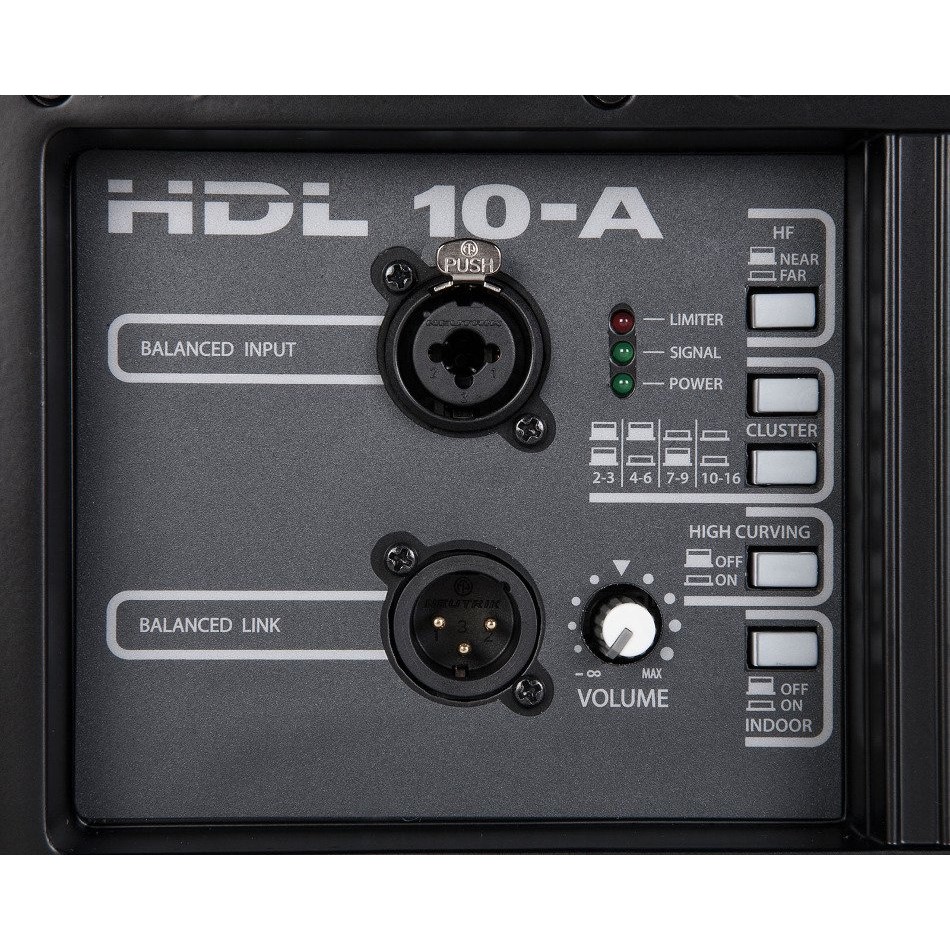

- Controls: Cluster, HF, High curving, Indoor \n
\n - Amplifier Specifications:
\n
-
\n
- Total Power: 1400 W PEAK
\n
-
\n
- High Frequencies: 400 W PEAK \n
- Low Frequencies: 1000 W PEAK \n
\n - Total Power: 700 W RMS
\n
-
\n
- High Frequencies: 200 W RMS \n
- Low Frequencies: 500 W RMS \n
\n - Cooling: Convection \n
- Connections: PowerCON In/Out \n
\n - Total Power: 1400 W PEAK
\n
- Cabinet:
\n
-
\n
- Cabinet Material: Composite PP, wooden reinforced \n
- Hardware: Rigging flyware \n
- Handles: 2 side \n
- Color: White \n
\n - Physical Specifications:
\n
-
\n
- Height: 11.5" (294mm) \n
- Width: 22.40" (569mm) \n
- Depth: 17.09" (434mm) \n
- Net Weight: 55.99 lbs (25.4 kg) \n
\n
