Product Description

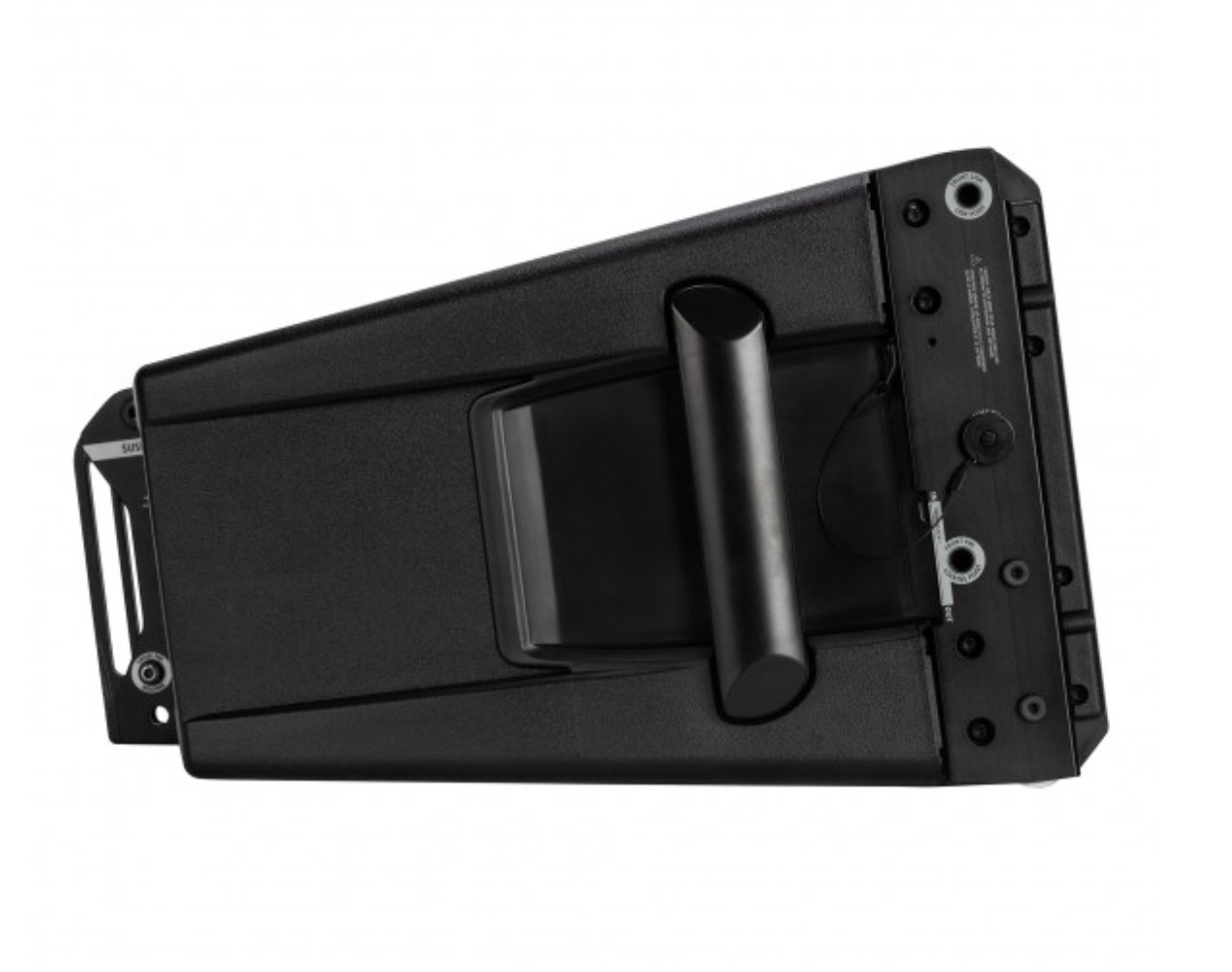

The RCF HDL 28-A is a compact bi-amped 2-way active touring system for a wide range of applications, both indoors and outdoors, with an emphasis on vocal intelligibility. It features two 8-inch woofers and an impressive 3-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. Following the HDL 30-A philosophy, the HDL 28-A shares the composite material cabinet, the zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. The RCF HDL 28-A features state of the art RCF transducers with lightweight neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. RCF HDL 28-A Active Two-Way Line Array Module Key Features:
- 2200W Two Way Amplifier.
- 135 dB Max SPL.
- 48 kHz, 32 bit DSP processing.
- RDNet Networked Management.
- 2 x 8" Neodymium Woofers, 2.5" voice coil.
- 1.4" Titanium Compression Driver, 3.0" voice coil.
- Exclusive FiRPHASE technology on-board.
- 750 Hz Crossover Point.
Acoustical specifications Frequency Response: 50 Hz ÷ 20000 Hz Max SPL @ 1m: 135 dB Horizontal coverage angle: 100° Vertical coverage angle: 15° Transducers Compression Driver: 1.4'' neo, 3.0'' v.c Woofer: 2 x 8'' neo, 2.5'' v.c Input/Output section Input signal: bal/unbal Input connectors: XLR, RDNet Ethercon Output connectors: XLR, RDNet Ethercon Input sensitivity: +4 dBu Processor section Crossover frequencies: 750 Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: Preset, RDNet bypass RDNet: Yes Power section Total Power: 2200 W Peak, 1100 W RMS High frequencies: 600 W Peak, 300 W RMS Low frequencies: 1600 W Peak, 800 W RMS Cooling: Forced Connections: Powercon IN/OUT Standard compliance CE marking: Yes Physical specifications Cabinet/Case Material: PP Composite Hardware: Array fittings Handles: 2 Side Grille: Steel Color: Black Size Height: 294 mm / 11.57 inches Width: 569 mm / 22.4 inches Depth: 491 mm / 19.33 inches Weight: 21 kg / 46.3 lbs Search terms: hdl28a, rcf hdl 28a, rcf hdl 28, hdl 28, hdl 28-a, rcf hdl 28a price, rcf 28a, rcf hdl28a, line array rcf, rcf line array price
