Product Description

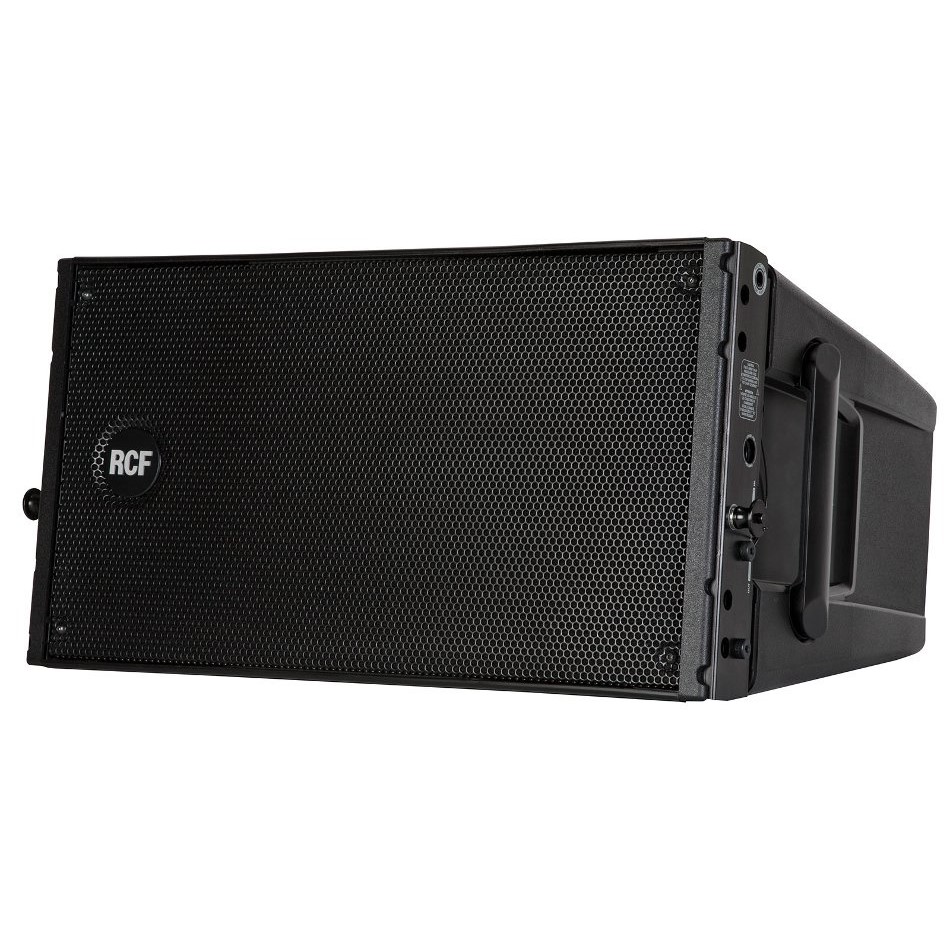

RCF HDL 10-A Dual 8" Active Line Array Speaker 700W, Black
RCF HDL 10-A Is a double 8 inch speaker very compact format, no-compromise transducers, and a unique composite cabinet design make the RCF HDL 10-A the perfect tool in many situations, and is ideal in live sound reinforcement and reliable installed situations. The RCF HDL 10-A is the ideal choice when line array performance is needed and a fast and easy setup is a must. The system is powered from a 1400W peak power 2-way digital amplifier, sound is processed from a powerful DSP engine.
Applications
- Live Sound
- Rentals
- Portable PA, clubs, ballrooms, live theatre
- House of worship
- Theme parks
- Music playback and sound reinforcement in small and mid-size venues
- Corporate A/V professionals and sound system hire companies
Features
- 1400W peak power, 700W RMS
- 2 x 8" woofers
- 133dB max SPL
- 65Hz - 20kHz frequency response
- 1 x 2" compression driver
RCF HDL10-A Line Array Specifications
- Frequency Response (@-3dB): 65Hz - 20kHz
- Max SPL: 133dB
- Horizontal Coverage Angle: 100°
- Vertical Coverage Angle: 15°
- Compression Driver: 2", 2.5" v.c.
- Woofer: 2 x 8", 2.0" v.c.
- Input/Output Section:
- Input Signal: Bal/unbal
- Input Connectors: XL
- Output Connectors: XLR
- Input Sensitivity: -2dBu / +4dBu
- Processor Section:
- Crossover Frequencies: 800Hz
- Protections: Thermal, RMS
- Limiter: Soft limiter
- Controls: Cluster, HF, High curving, Indoor
-
- High Frequencies: 200W RMS
- Low Frequencies: 500W RMSTotal Power: 700W RMS
- Cabinet Material: Composite PP, wooden reinforced
- Hardware: Rigging flyware
- Handles: 2 side
- Color: Black
- Cabinet:
- Physical Specifications:
- Height: 11.5" (294mm)
- Width: 22.40" (569mm)
- Depth: 17.09" (434mm)
- Net Weight: 55.99lbs (25.4kg)
